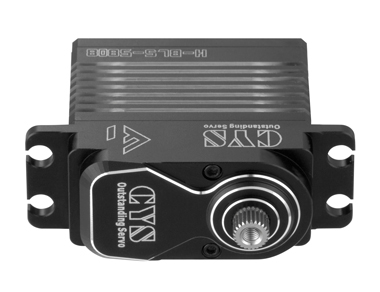

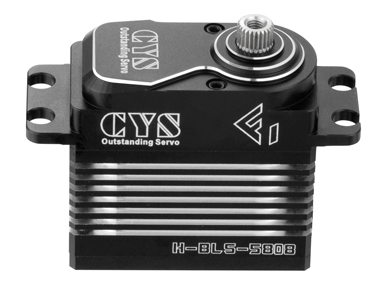

H-BLS-5808 High speed servo for 700 helicopter

/, RC Helicopter Servo/H-BLS-5808 High speed servo for 700 helicopter
H-BLS-5808 High speed servo for 700 helicopter2019-08-01T09:21:08+00:00

Project Description

Item NO.: CYS-BLS5808  HV Brushless Servo

Description : Brushless 700/800 classes Tail Servo with aluminum case

Size : 40*20*39.35mm

Torque : 7Kg.cm ~ 8Kg.cm

Speed : 0.029sec ~ 0.024sec/60 degree

Voltage : 6.0Volts ~8.4Volts

Weight : 72g±1g

Datasheet download

Application&Features

CYS F1 is the unique design for the 700 classes helicopter, with high speed and stable performance in long flying, we hope to offer you the best flying experience.

TypeDigital
Weight72g±1g
Size40*20*39.35mm
Control System(+)Pulse Width Control 1500usec Neutral
Operating Voltage6.0~7.4Volts
Operating Temperature Range(-)10 to +50 degree C
Operating Speed (6.0V)0.029sec/60° at no load
Operating Speed (7.4V)0.024sec/60° at no load
Stall Torque (6.0V)4.5kg.cm
Stall Torque (7.4V)6kg.cm
Operating Angle45deg.one side pulse traveling 500 usec
DirectionAnticlockwise/Pulse Traveling 1000~2000usec
Current Drain (6.0V)20mA/idle and 80mA no load operating
Current Drain (7.4V)20mA/idle and 80mA no load operating
Stall Current3.2A/4.0A
Dead Band Width3usec
Motor TypeBrushless motor
Bearing TypeDouble ball bearing
Horn gear spline25T
Gear TypeTitanize
Connector Wire Length300mm
Wire infoBrown/Black = Negative
Red = Positive
Orange/White = Signal
drawing of BLS5808 servo
