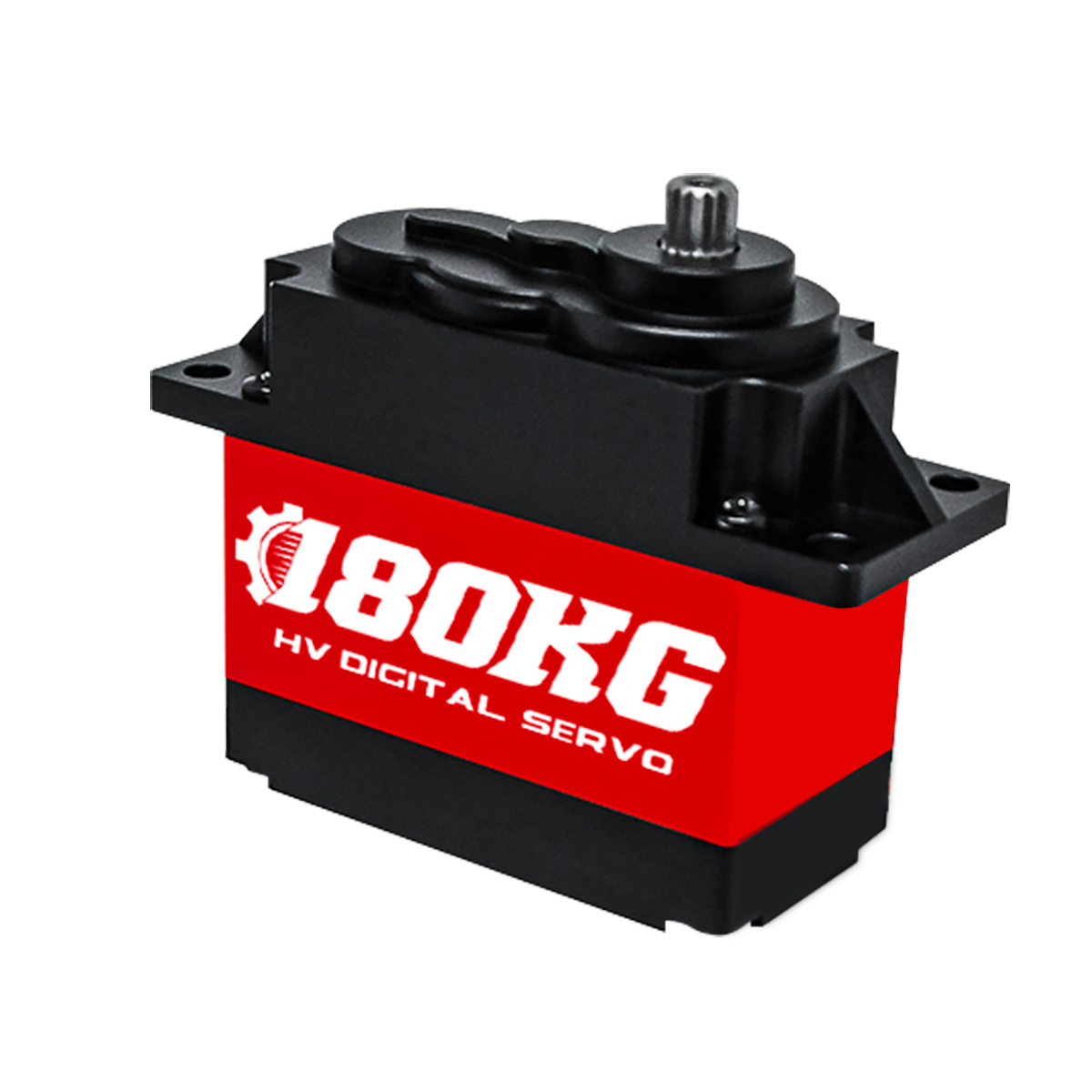

Item NO.: CYS-BLS1800
Description :180 kg High-Torque Full Metal Brushless Digital Servo for Industrial Applications

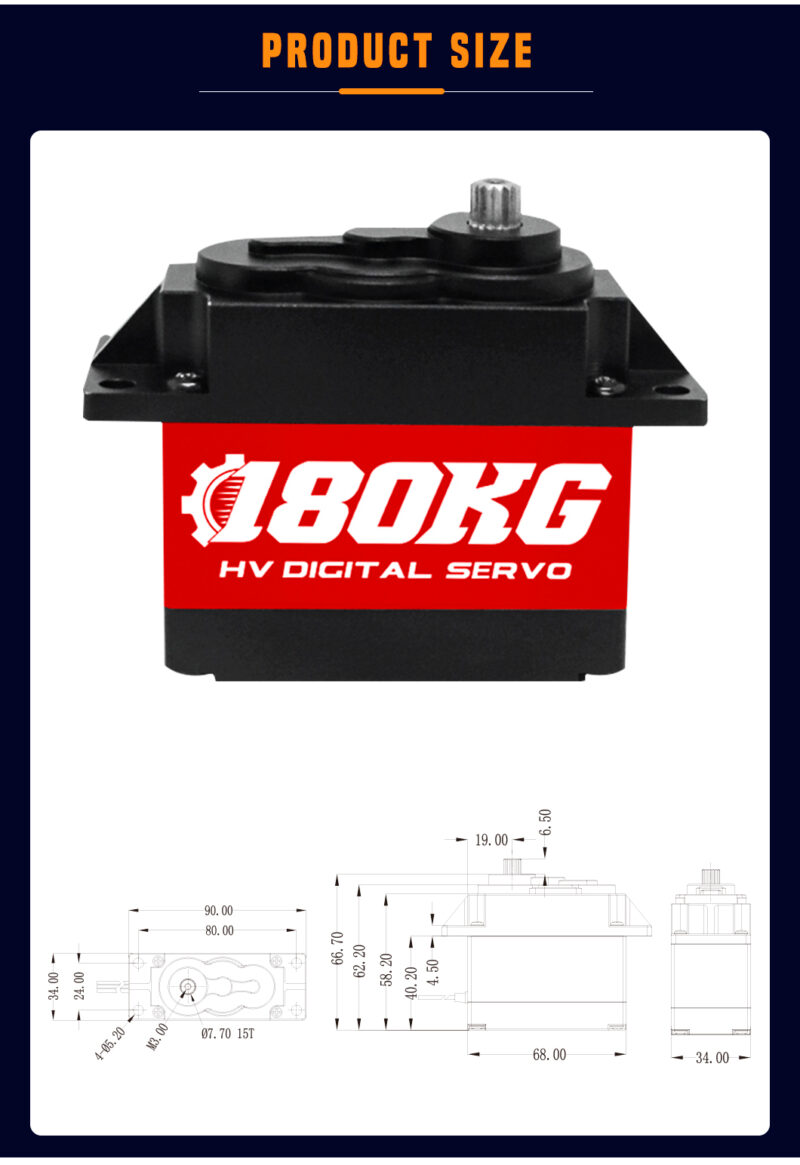

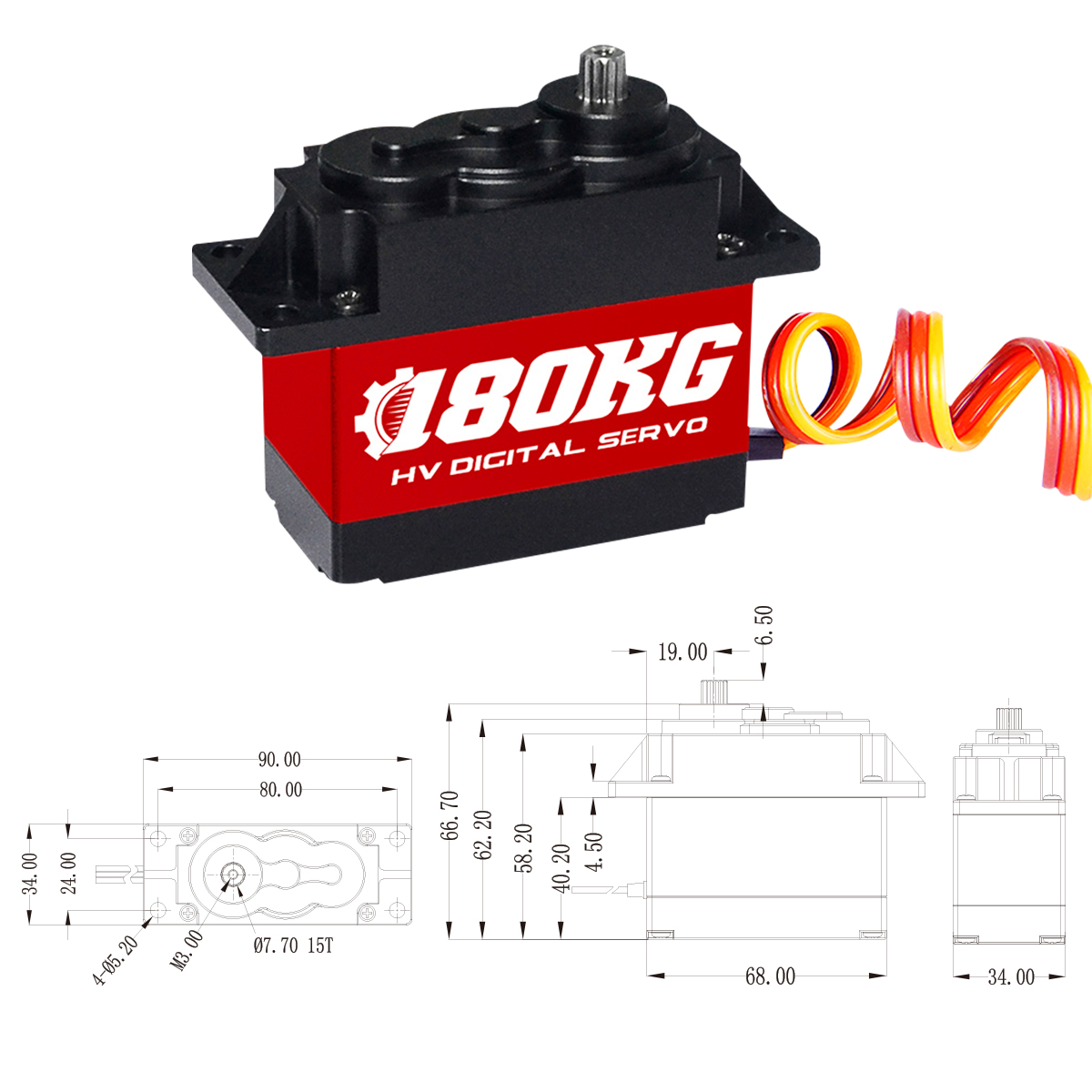

Size : 68*34*67MM
Torque :100Kg.cm ~ 180Kg.cm
Speed : 0.27sec ~0.13sec/60 degree
Voltage : 12Volts ~24Volts
Weight : 355± 1 g

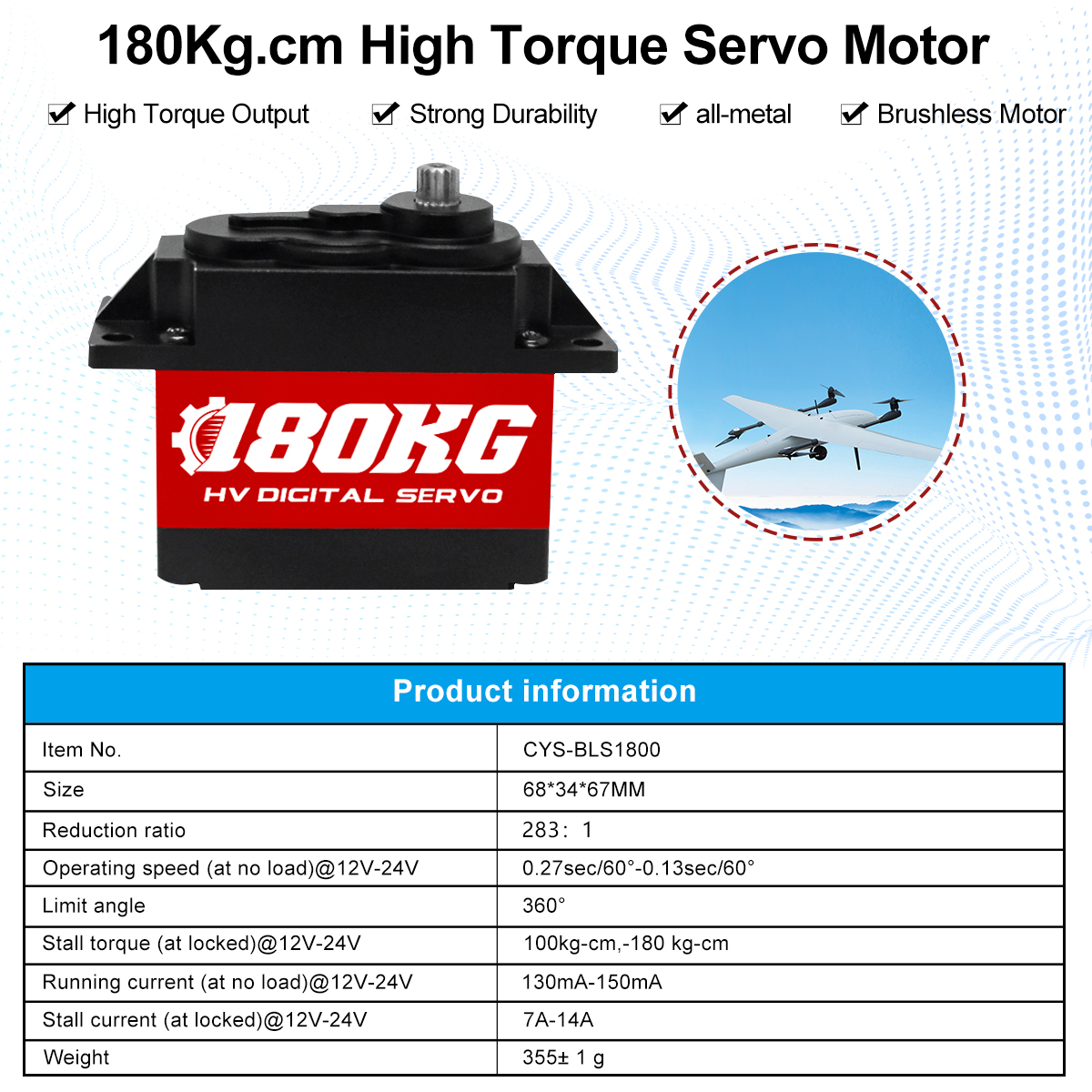

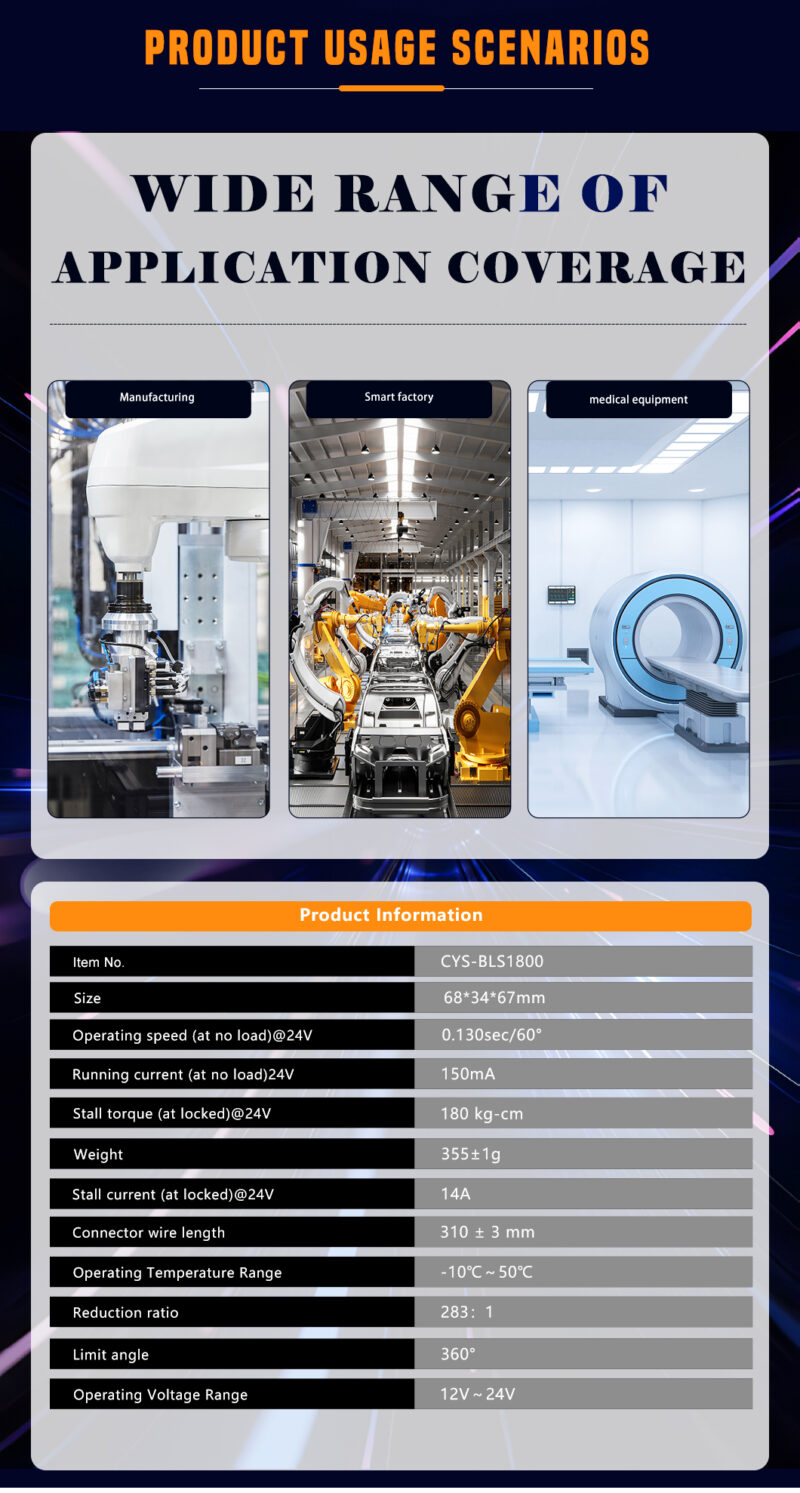

| Item No. | CYS-BLS1800 |
| Size | 68*34*67mm |
| Weight | 355±1g |
| Operating speed (at no load)@12V | 0.27sec/60° |
| Operating speed (at no load)@24V | 0.13sec/60° |
| Stall torque @12V | 100kg-cm |

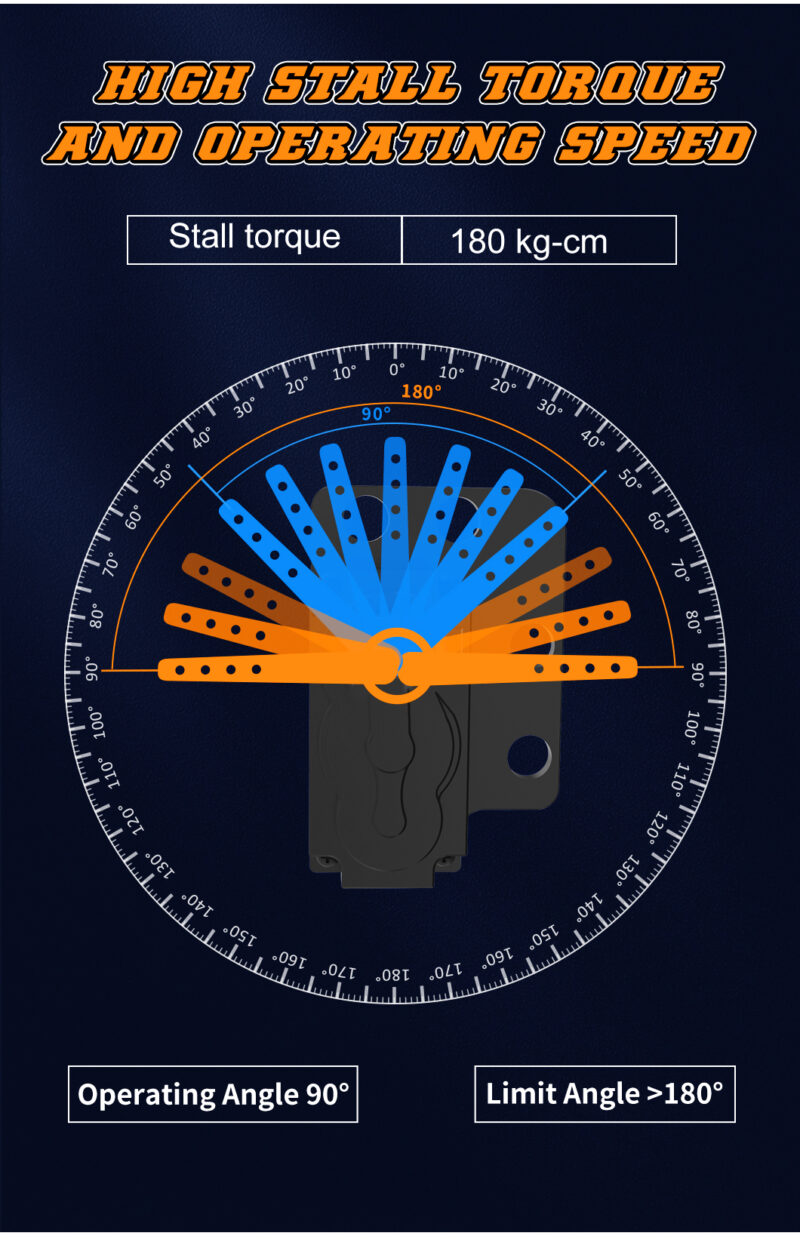

| Stall torque @24V | 180kg-cm |
| Running current @12V | 130mA |
| Running current @24V | 150mA |
| Stall current @12V | 7A |
| Stall current @24V | 14A |
| Idle Current | 25mA |
| Connector wire length | 310±3 mm |
