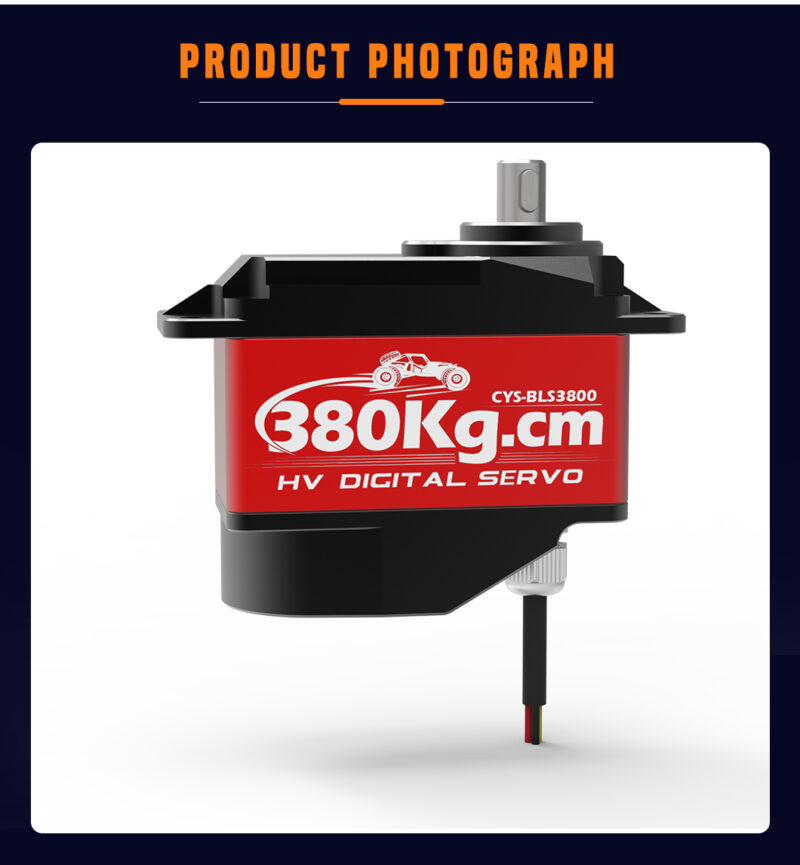

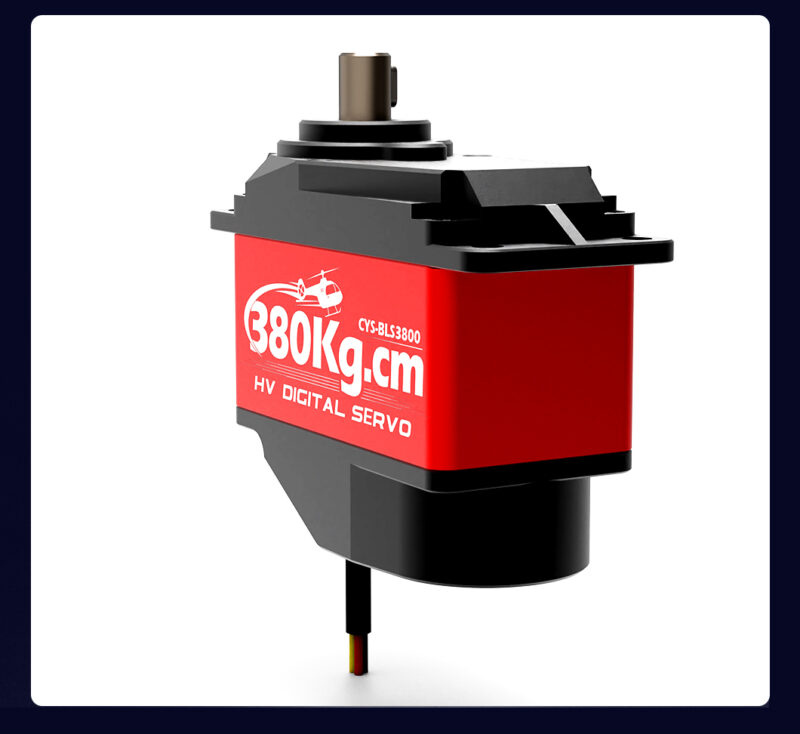

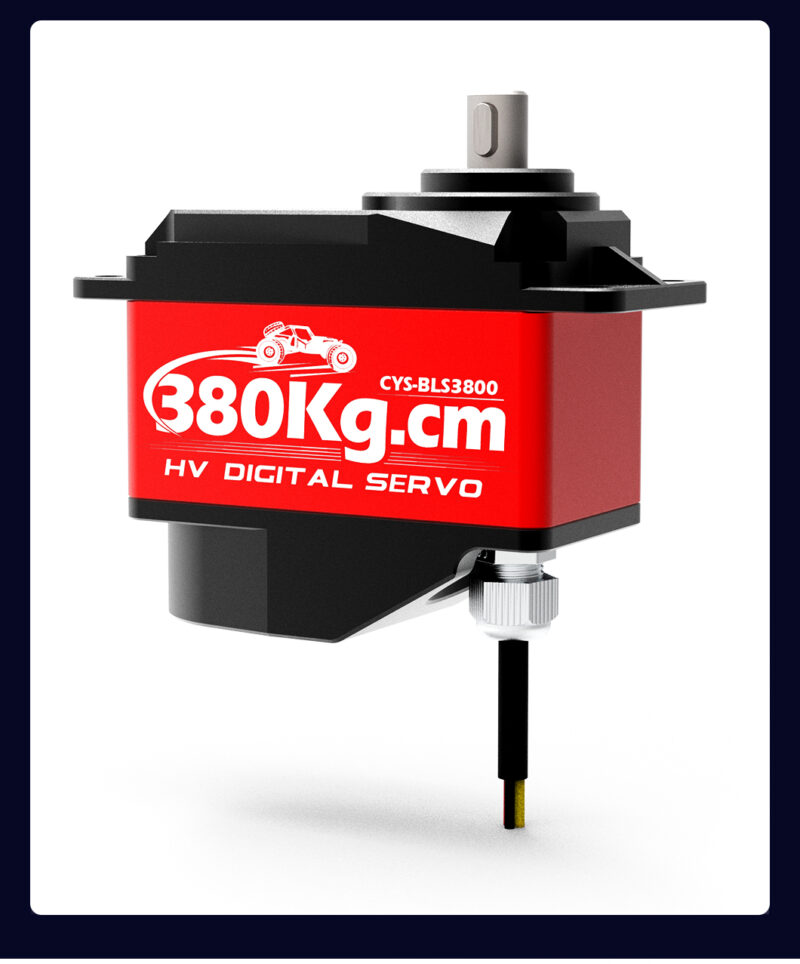

Item NO.: CYS-BLS3800

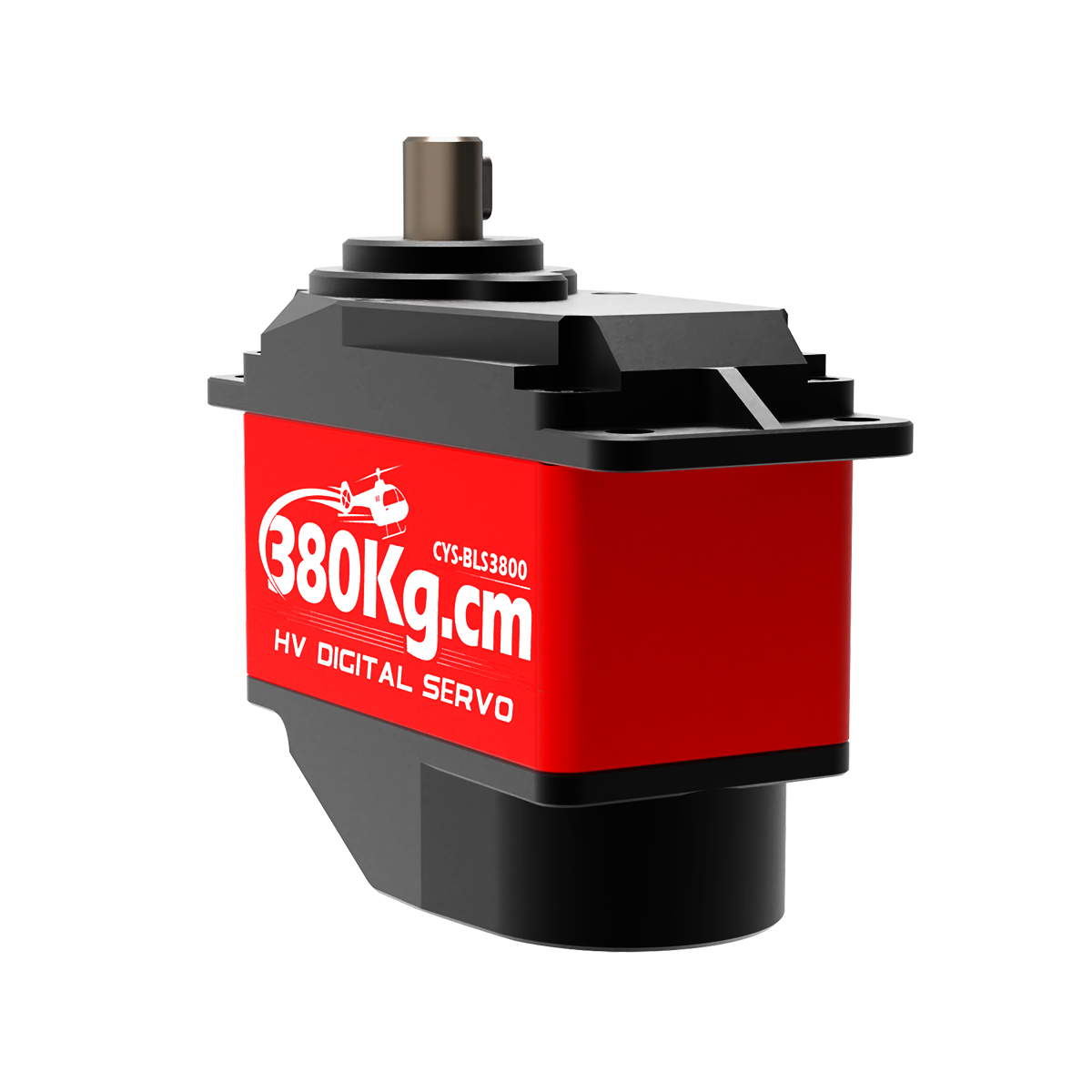

Description : 380kg·cm High-Torque Industrial Brushless Servo Motor

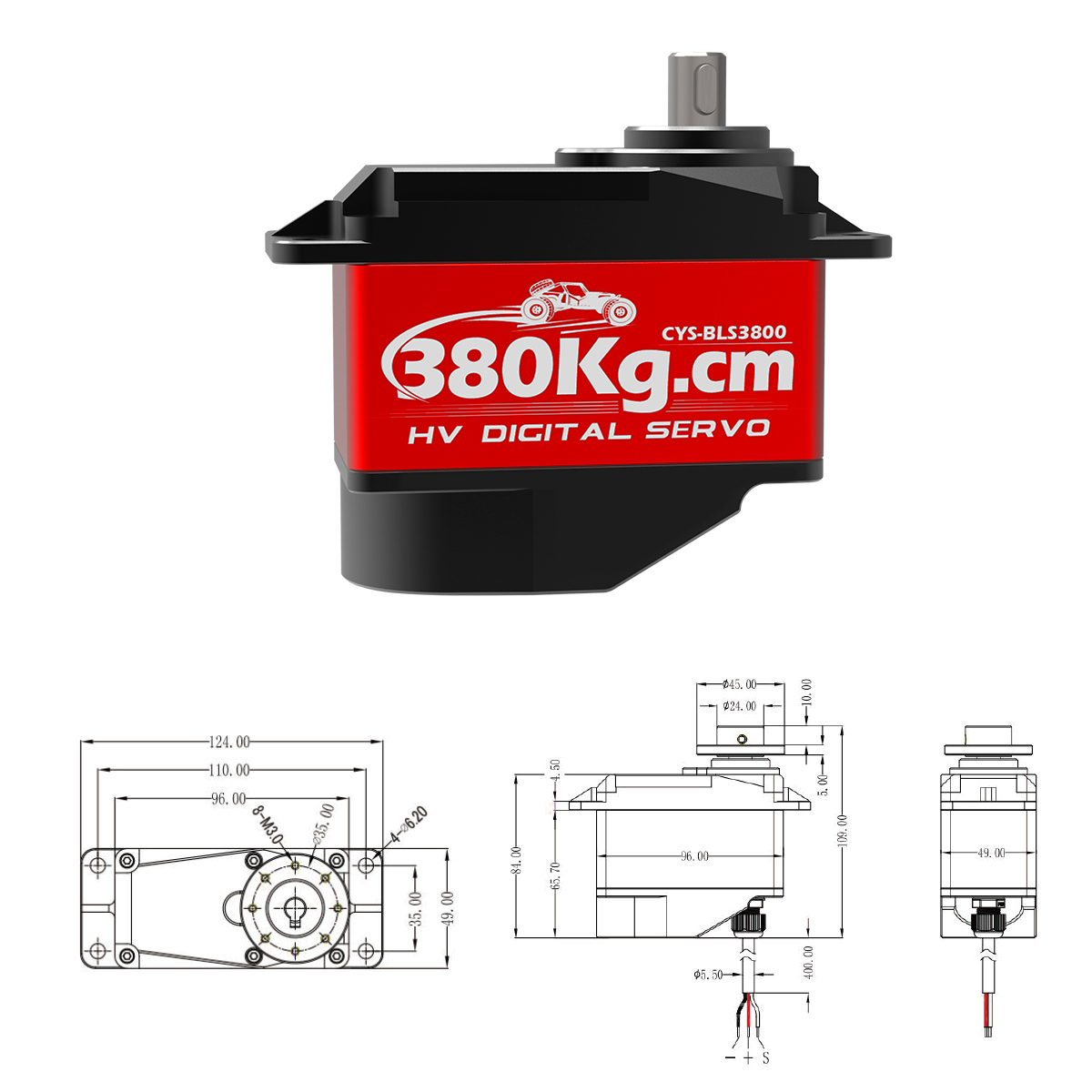

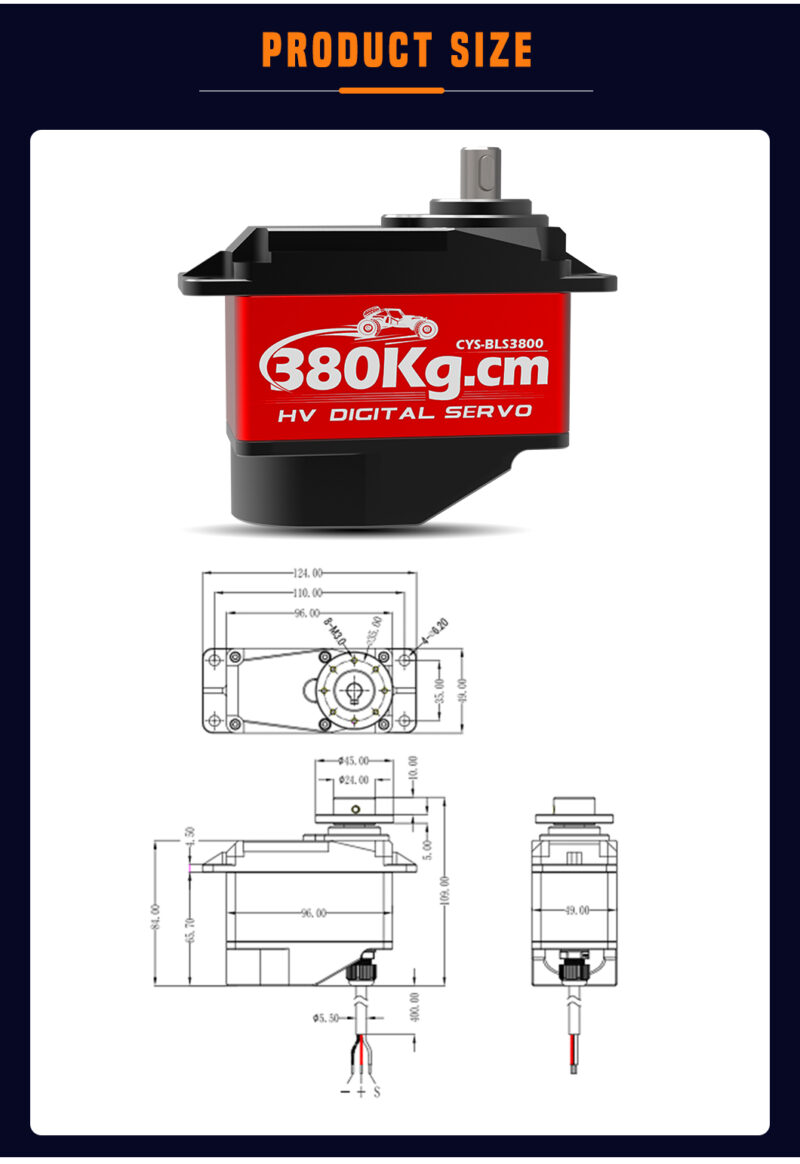

Size : 96*49*84MM
Torque :380Kg.cm
Speed : 0.32sec/60 degree
Voltage : 28Volts
Weight : 935± 5 g

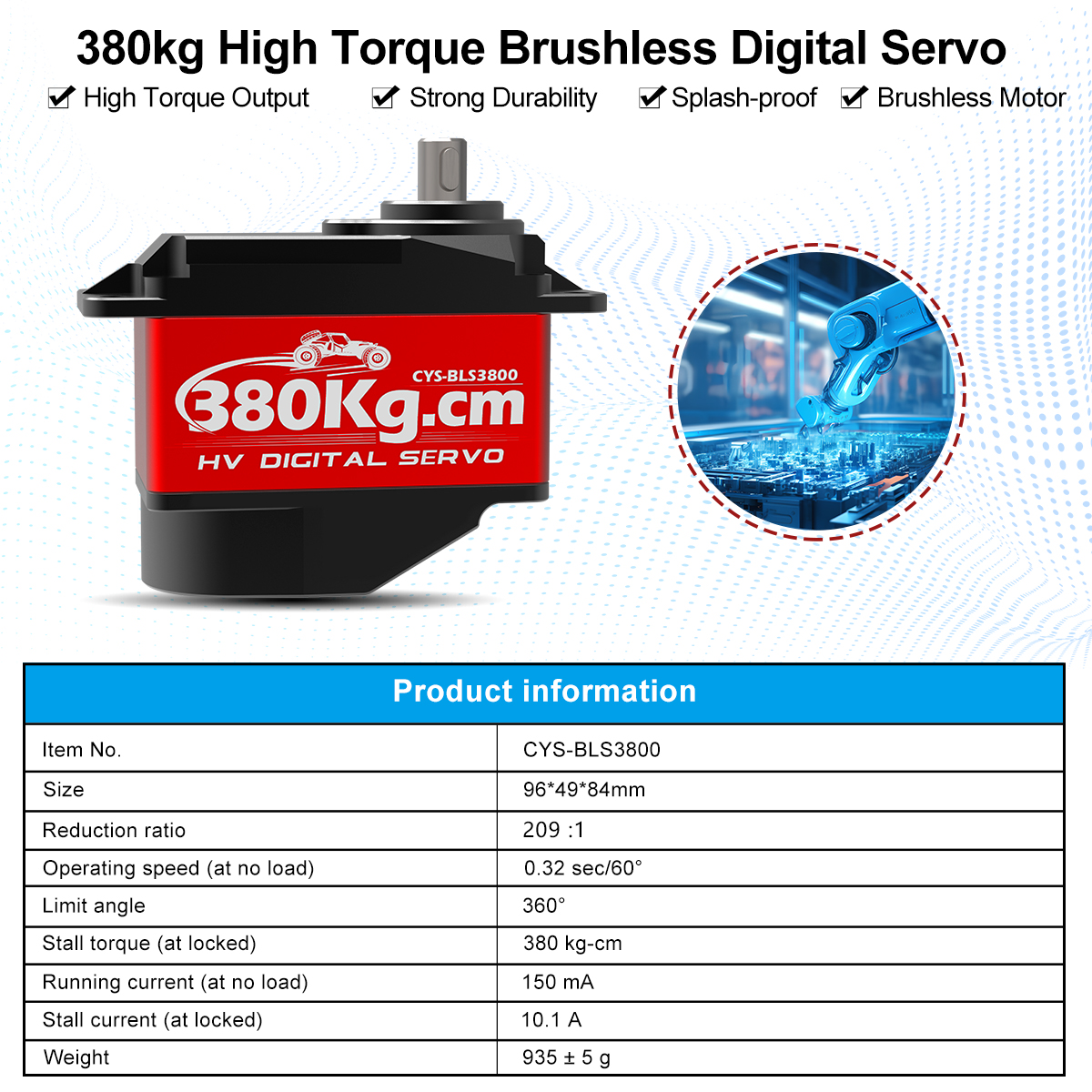

| Item No. | CYS-BLS3800 |
| Size | 96*49*84mm |
| Weight | 935 ± 5g |
| Operating speed (at no load)@28V | 0.32sec/60° |
| Stall torque @28V | 380kg-cm |
| Running current @28V | 150mA |
| Stall current @28V | 10.1A |
| Idle Current | 10mA |

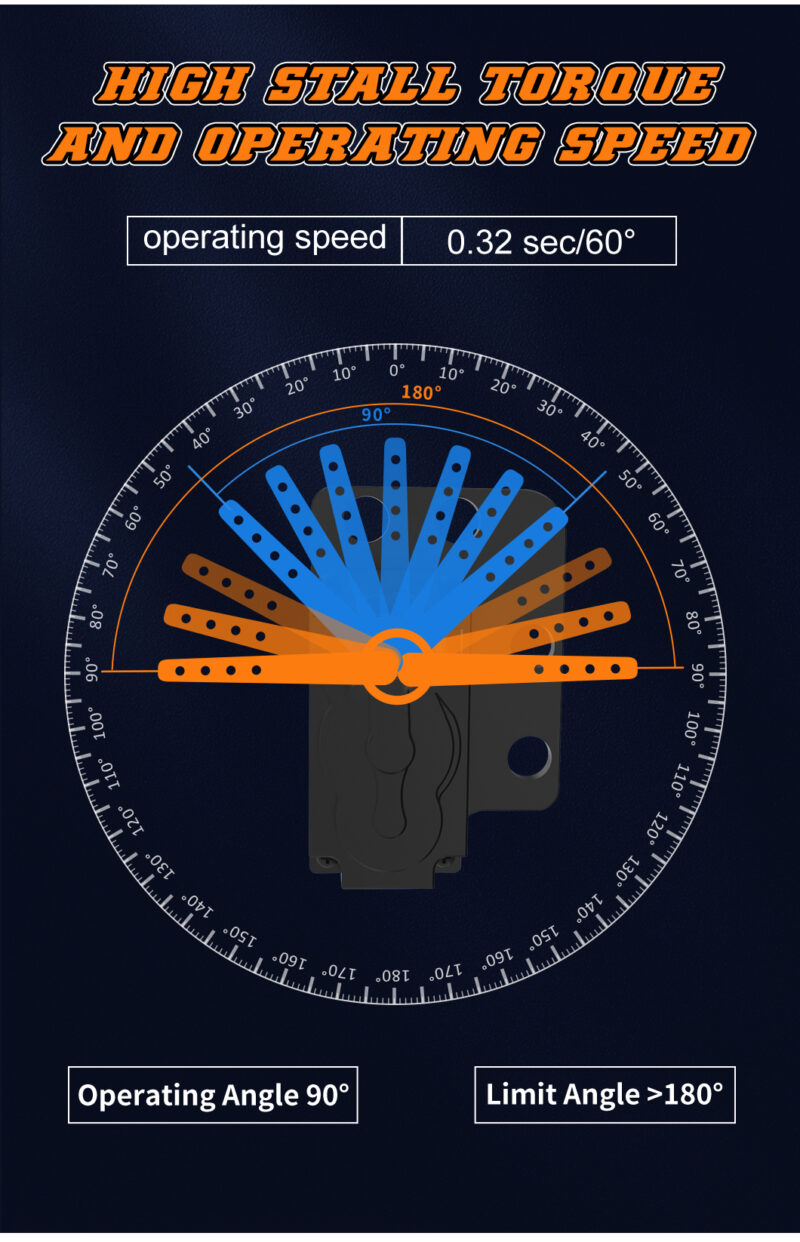

| Limit angle | 360° |
| Horn gear spline | 12mm 25T |
| Neutral position | 1500μsec |
| Pulse width range | 500~2500μsec |
| Connector wire length | 400 ± 10 mm |
| Operating Voltage Range | 24~28.0V |
