Item NO.: CYS-S6028

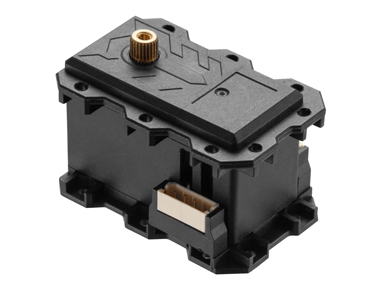

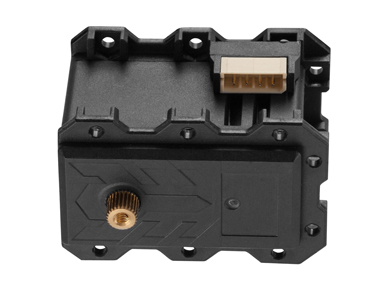

Description : Smart Robotic Servo – Robot part
Size : 50.8*35.5*41mm
Torque : 11.5Kg.cm ~ 14.5Kg.cm
Speed : 0.20sec ~ 0.25sec/60 degree
Voltage : 6.0Volts ~7.4Volts
Weight :68± 1 g
Application&Features
Following the development trend of artificial intelligence, CYS-S6028 will help to build your first Robot.
| Type | Digital |
|---|---|
| Weight | 68± 1 g |
| Size | 50.8*35.5*41mm |
| Control System | Serial half duplex communication |
| Operating Voltage | 6.0~8.4Volts |
| Operating Temperature Range | (-)10 to +50 degree C |
| Operating Speed (6.0V) | 0.25 sec/60° at no load |
| Operating Speed (7.4V) | 0.20 sec/60° at no load |
| Stall Torque (6.0V) | 11.5kg-cm |
| Stall Torque (7.4V) | 14.5 kg-cm |
| Travling Angle | 300°±10° |
| Current Drain (6.0V) | 30mA/idle and 200mA no load operating |
| Current Drain (7.4V) | 30mA/idle and 240mA no load operating |
| Stall Current | 1.7A/2.0A |
| Connector wire length | JST plug，PIN # 2.54mm # 4P |
| Read back function | Yes |
| Communicate Baudrate | 11520 |
| Servo ID | 0-253 |
| Resolution Ratio | AD resolution 4096 |
| Storage | Power off to save user Settings |
