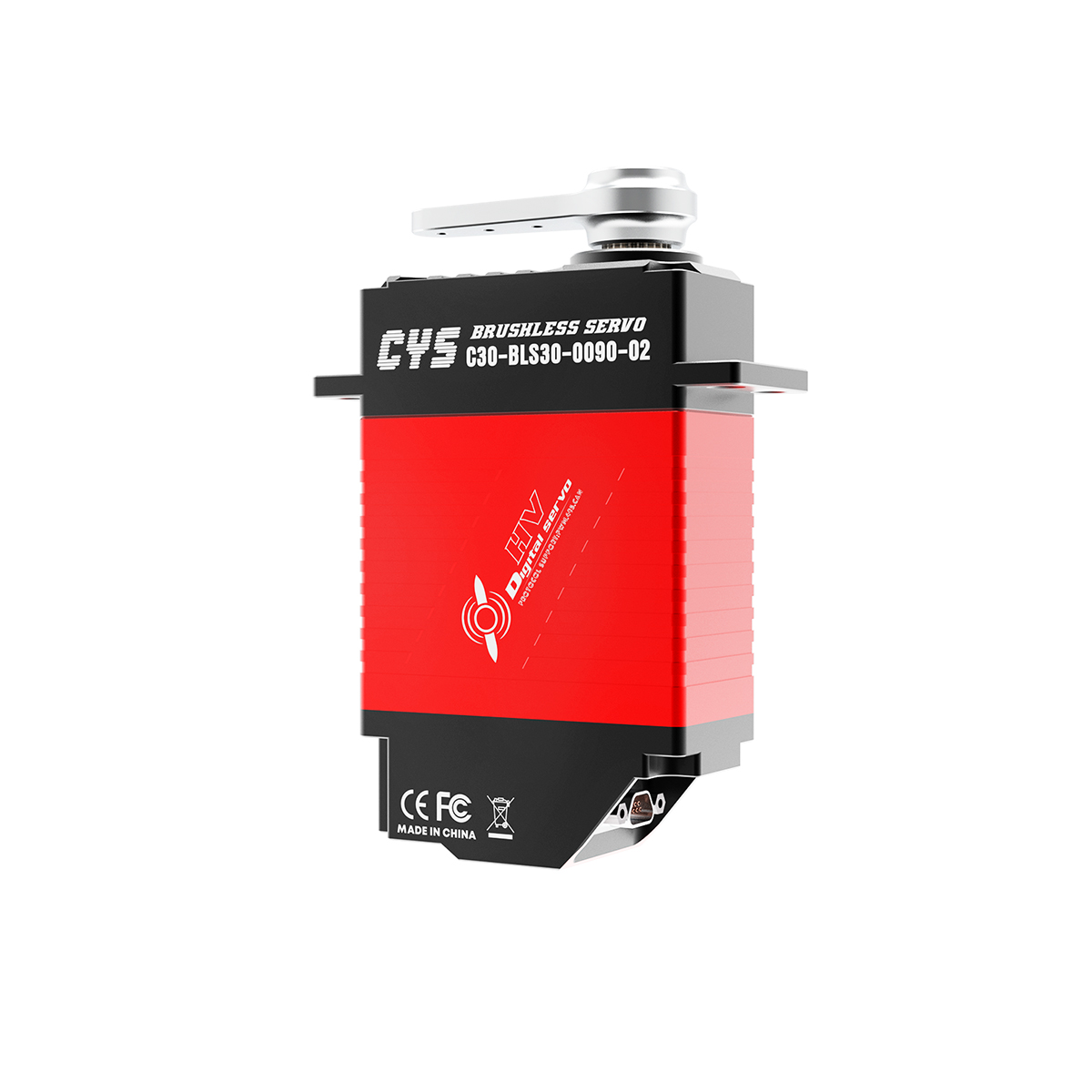

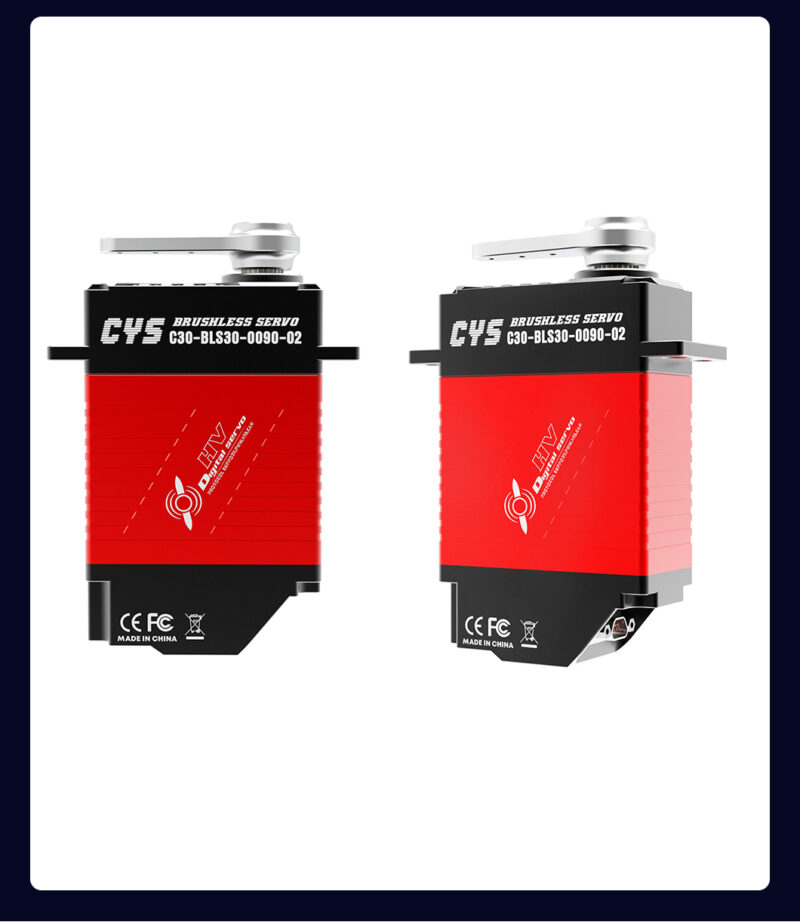

Item NO.: CYS-C30-BLS30-0090-02

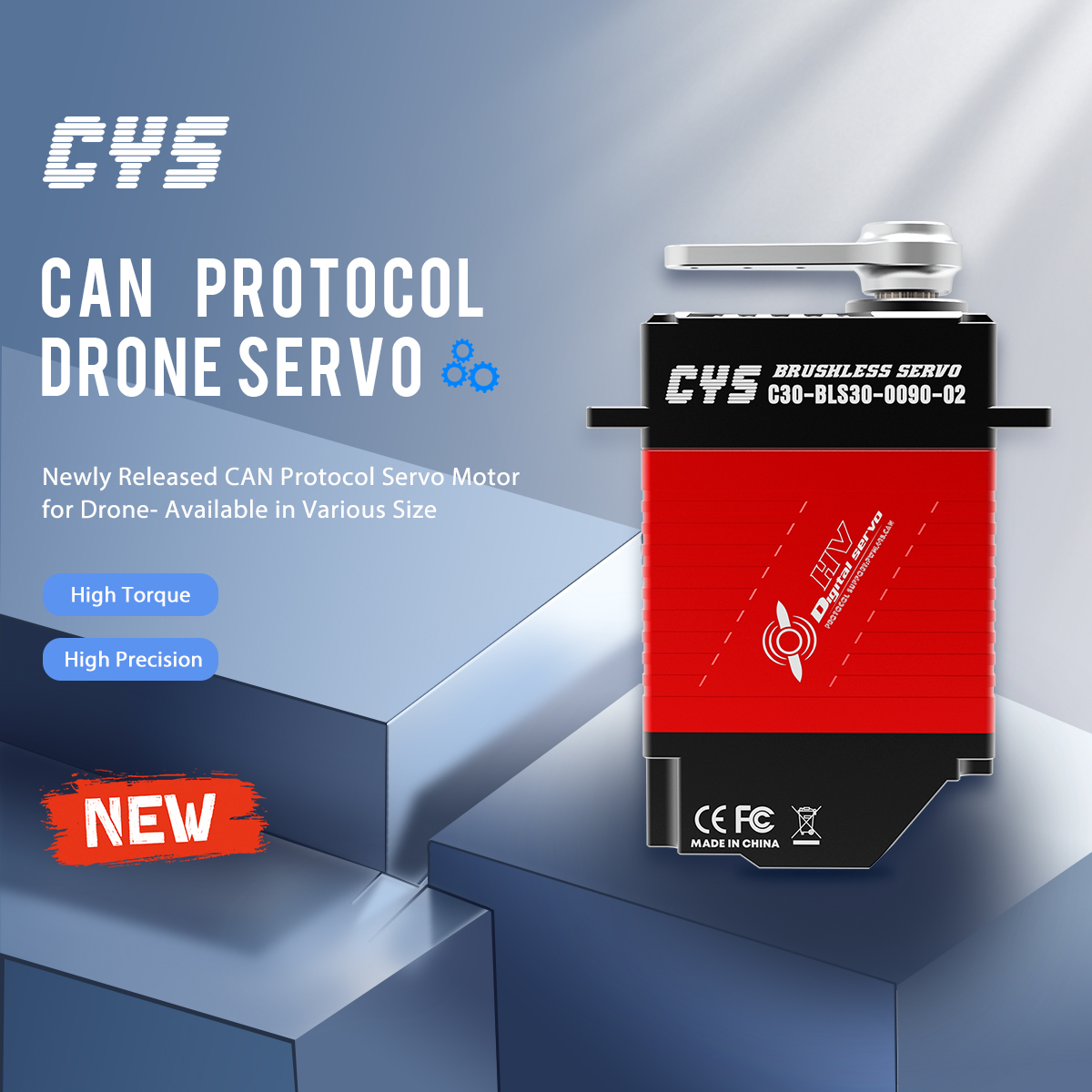

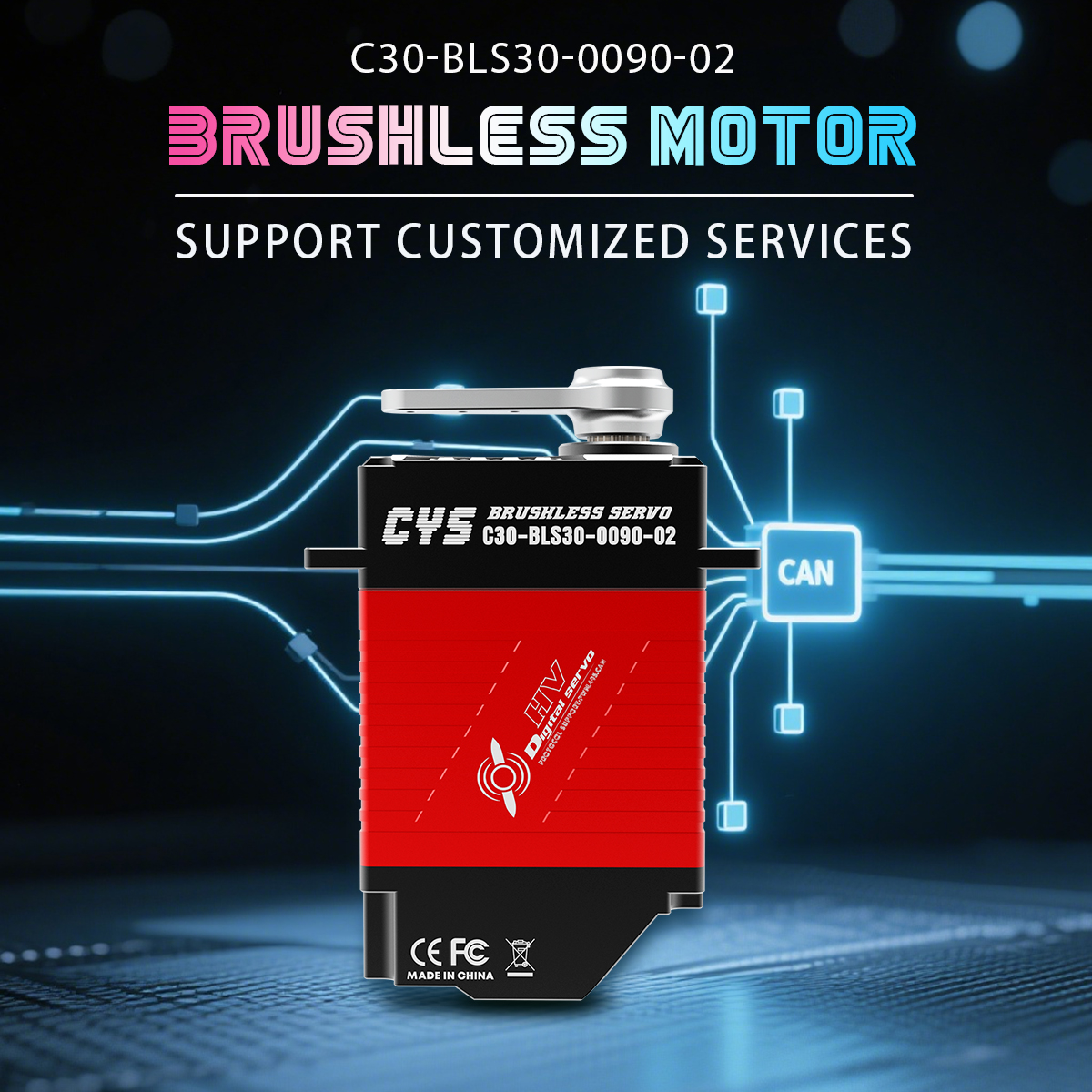

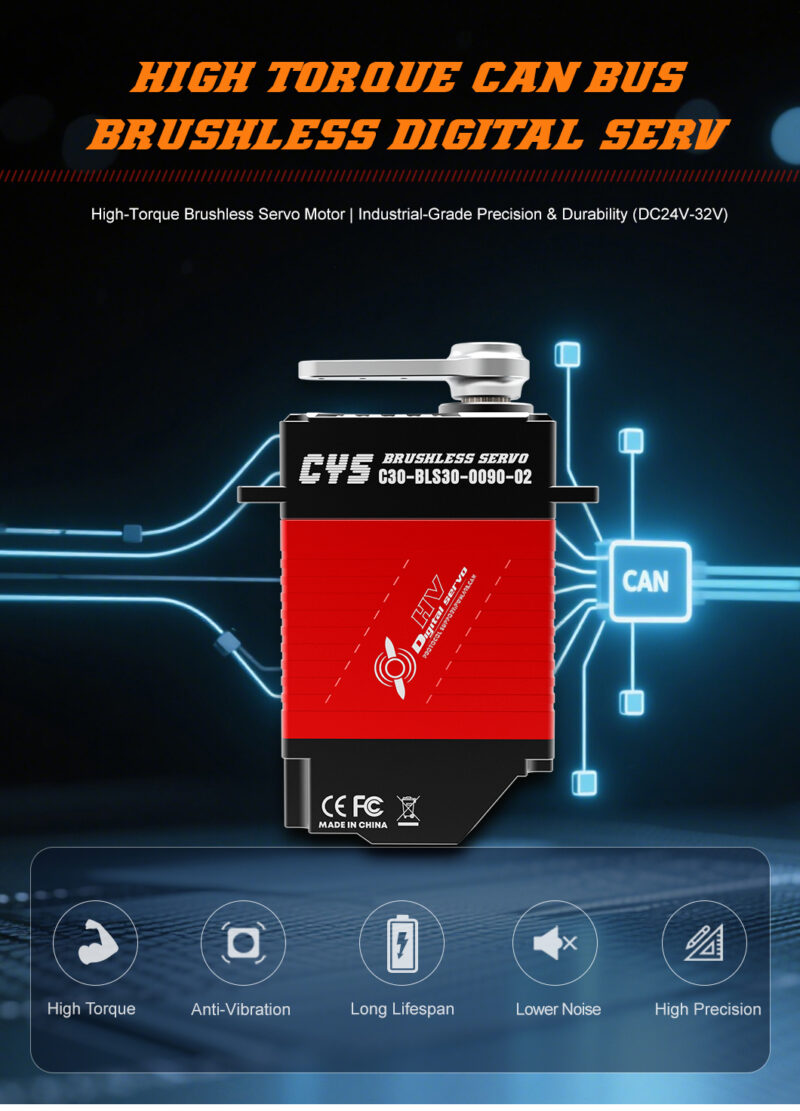

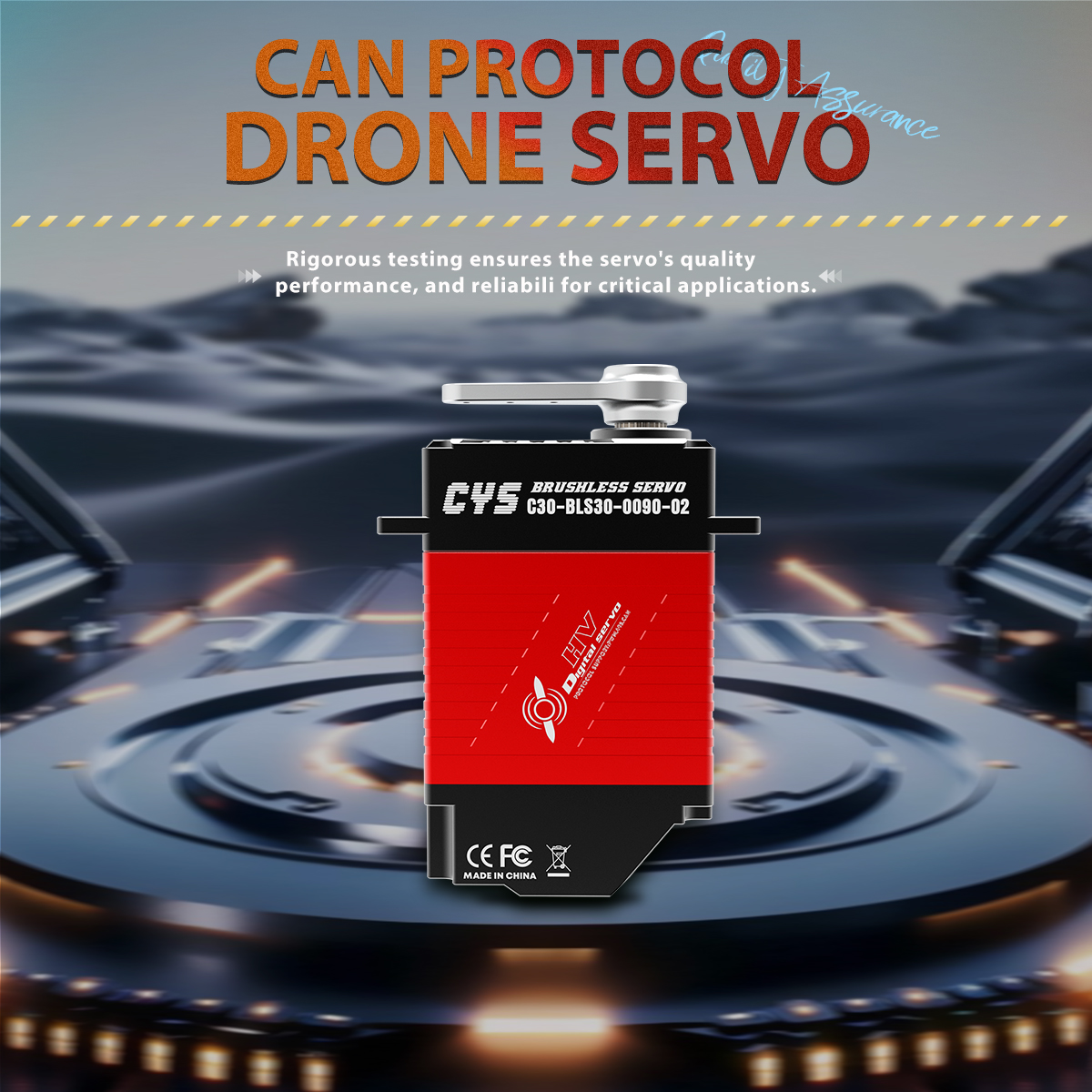

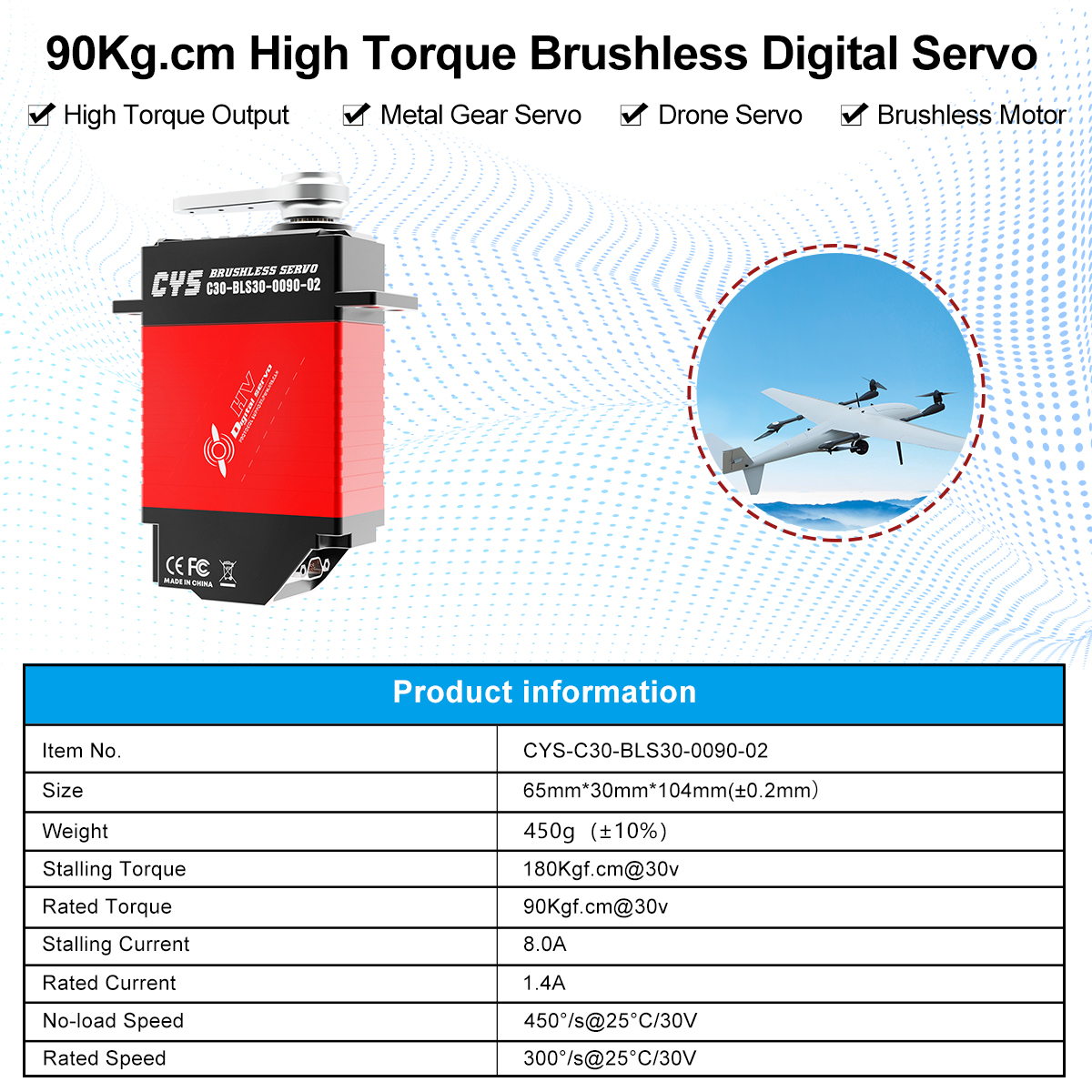

Description :90KG Full Metal Case Brushless Motor Servo with CAN Protocol Waterproof Steel Gear Bus for Drones RC Parts & Accs

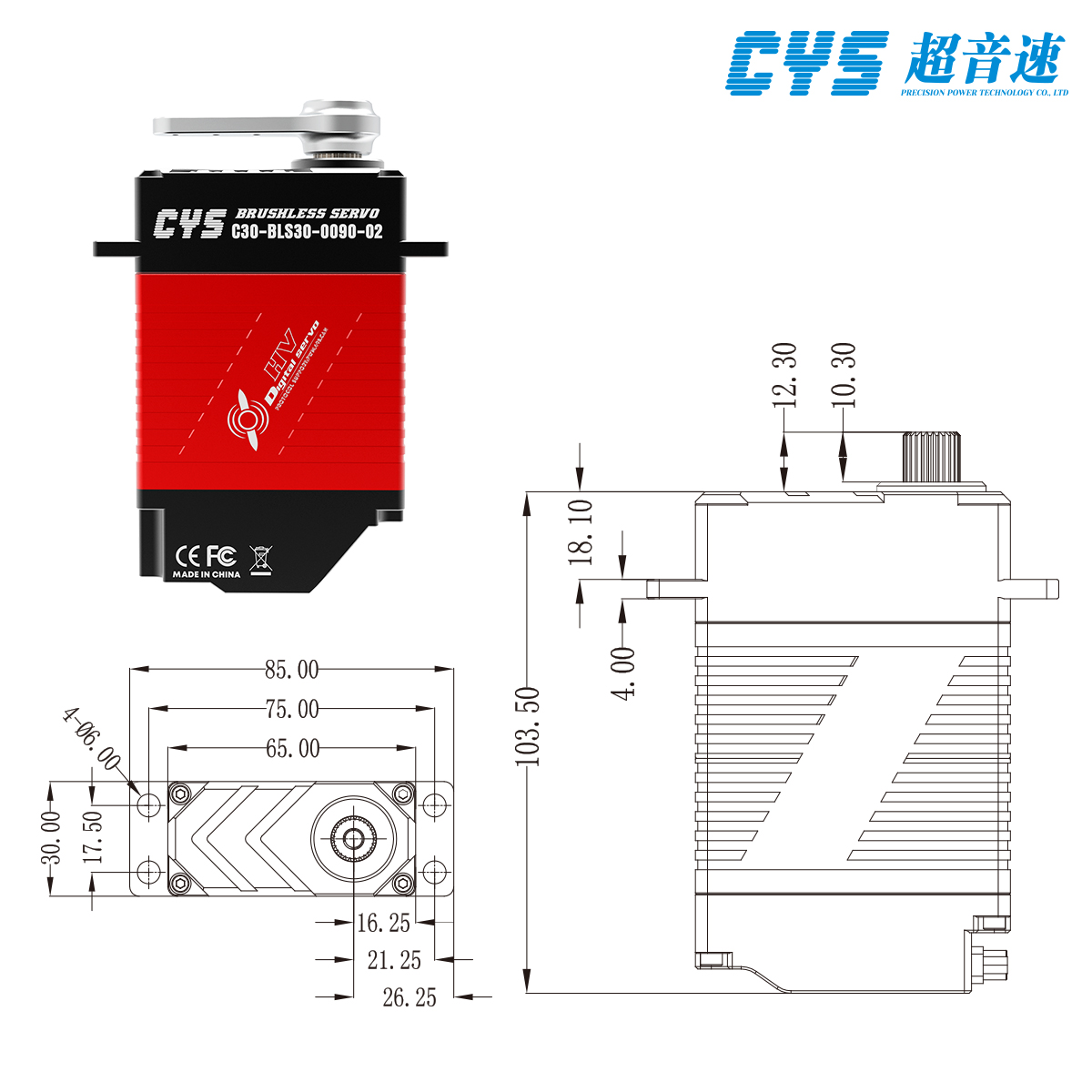

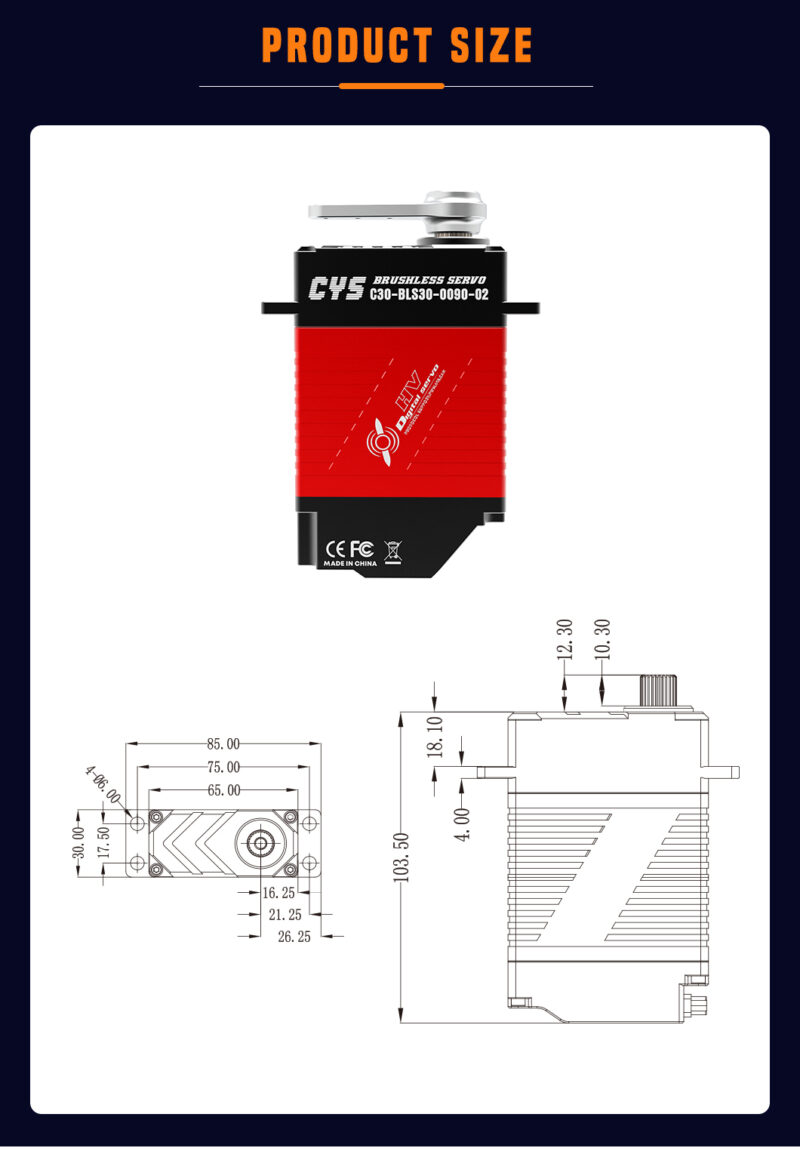

Size : 65mm*30mm*104mm(±0.2mm）
Stalling Torque :180Kgf.cm@30V
Rated Torque :90Kgf.cm@30V
Voltage : DC24V-32V
Weight :450g(±10%）

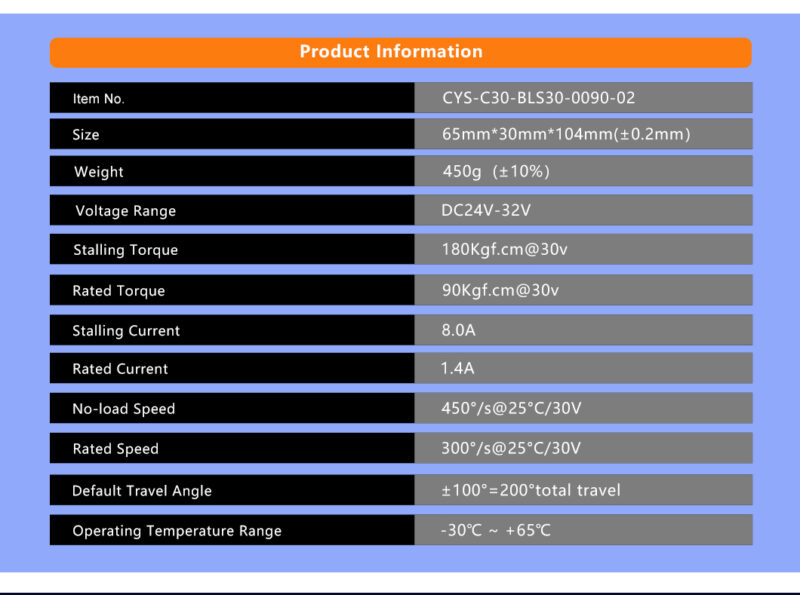

| Item No. | CYS-C30-BLS30-0090-02 |
| Size | 65mm*30mm*104mm(±0.2mm） |
| Weight | 450g(±10%） |
| Stalling Torque | 180Kgf.cm@30V |

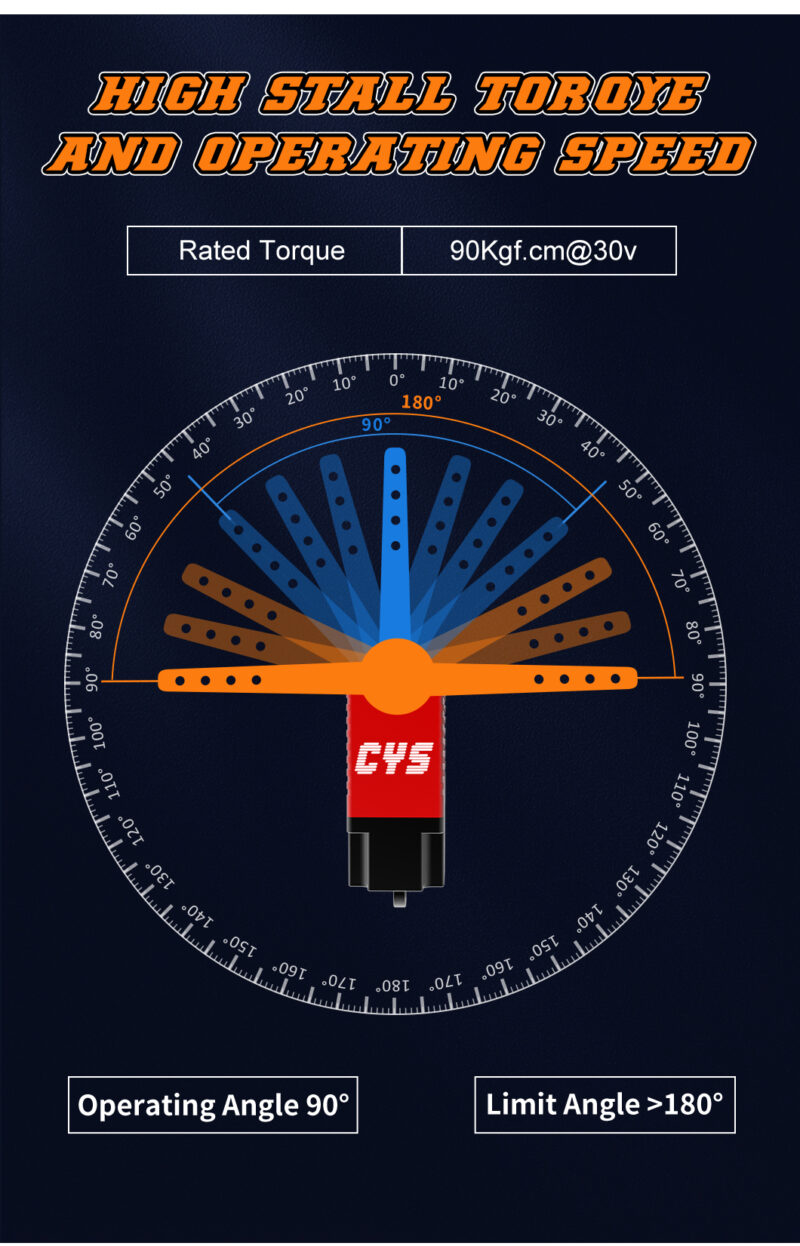

| Rated Torque | 90Kgf.cm@30V |
| Stalling Current | 8.0A |
| Rated Current | 1.4A |
| No-load Speed | 450°/s@25°C/16.8V |
| Rated Speed | 300°/s@25°C/16.8V |
| Type | Brushless Motor |
| Baud-Rate | 500Kbps |
| Operating Voltage Range | DC24V-32V |
