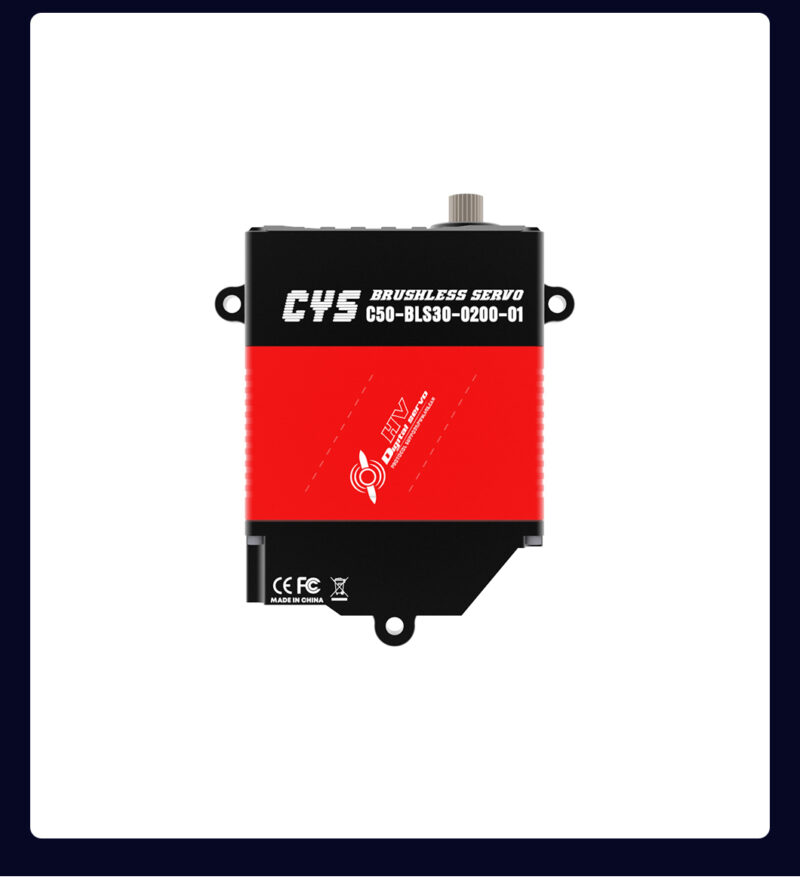

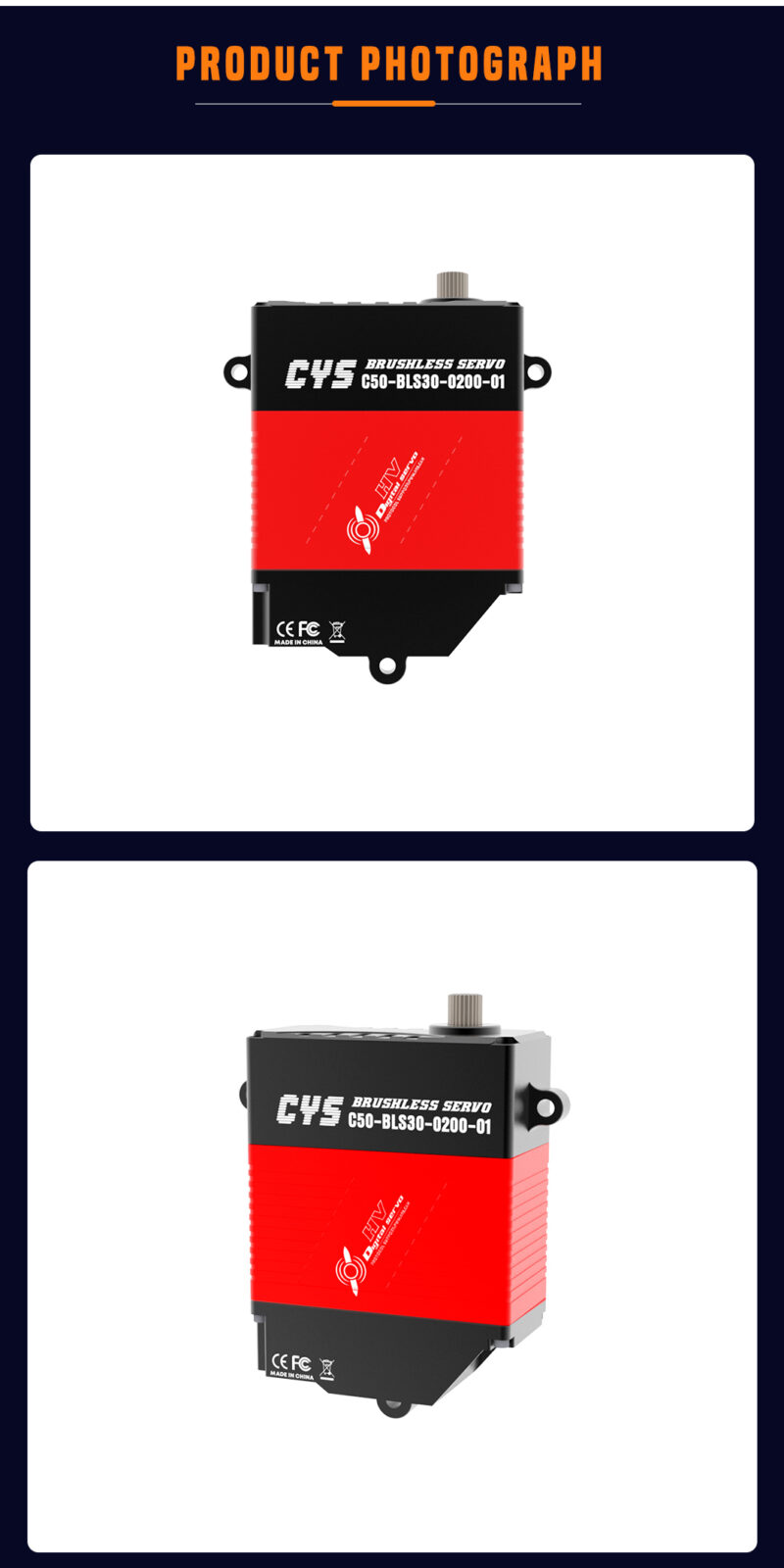

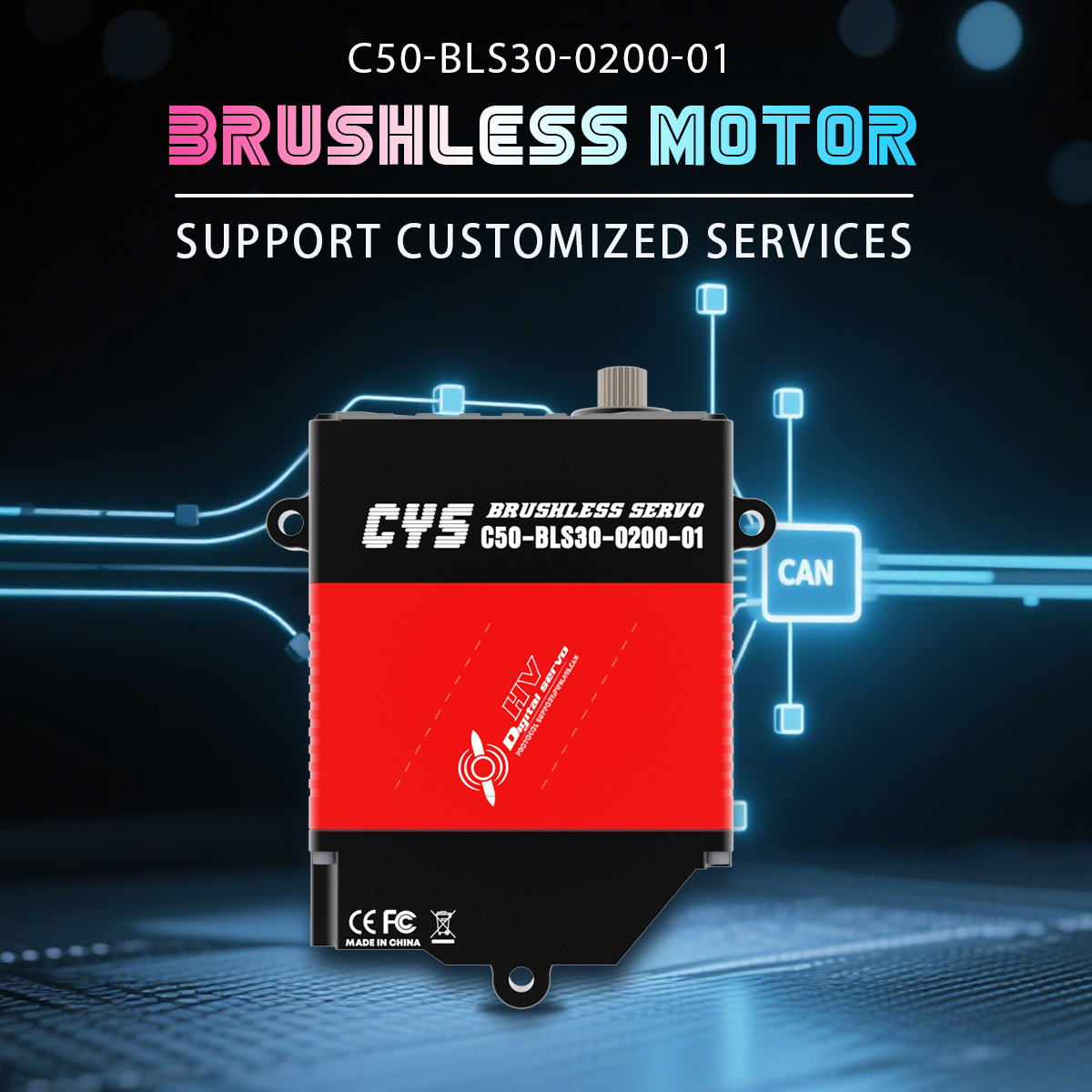

Item NO.: CYS-C50-BLS30-0200-01

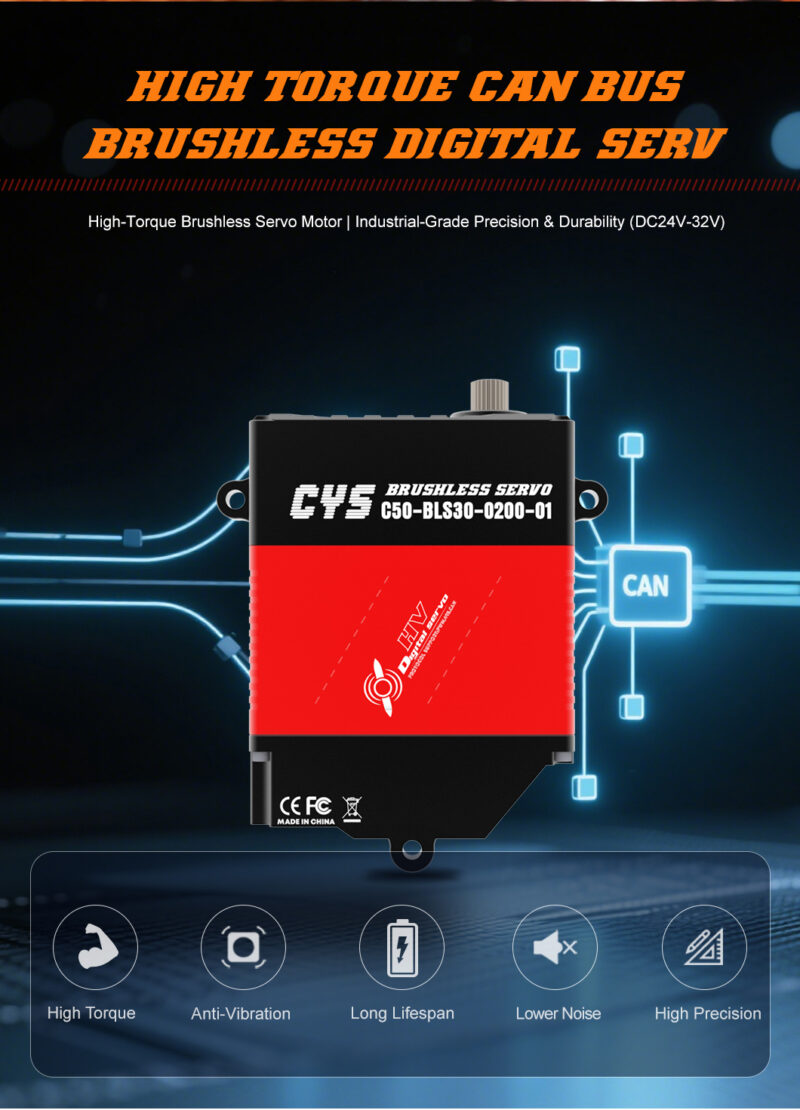

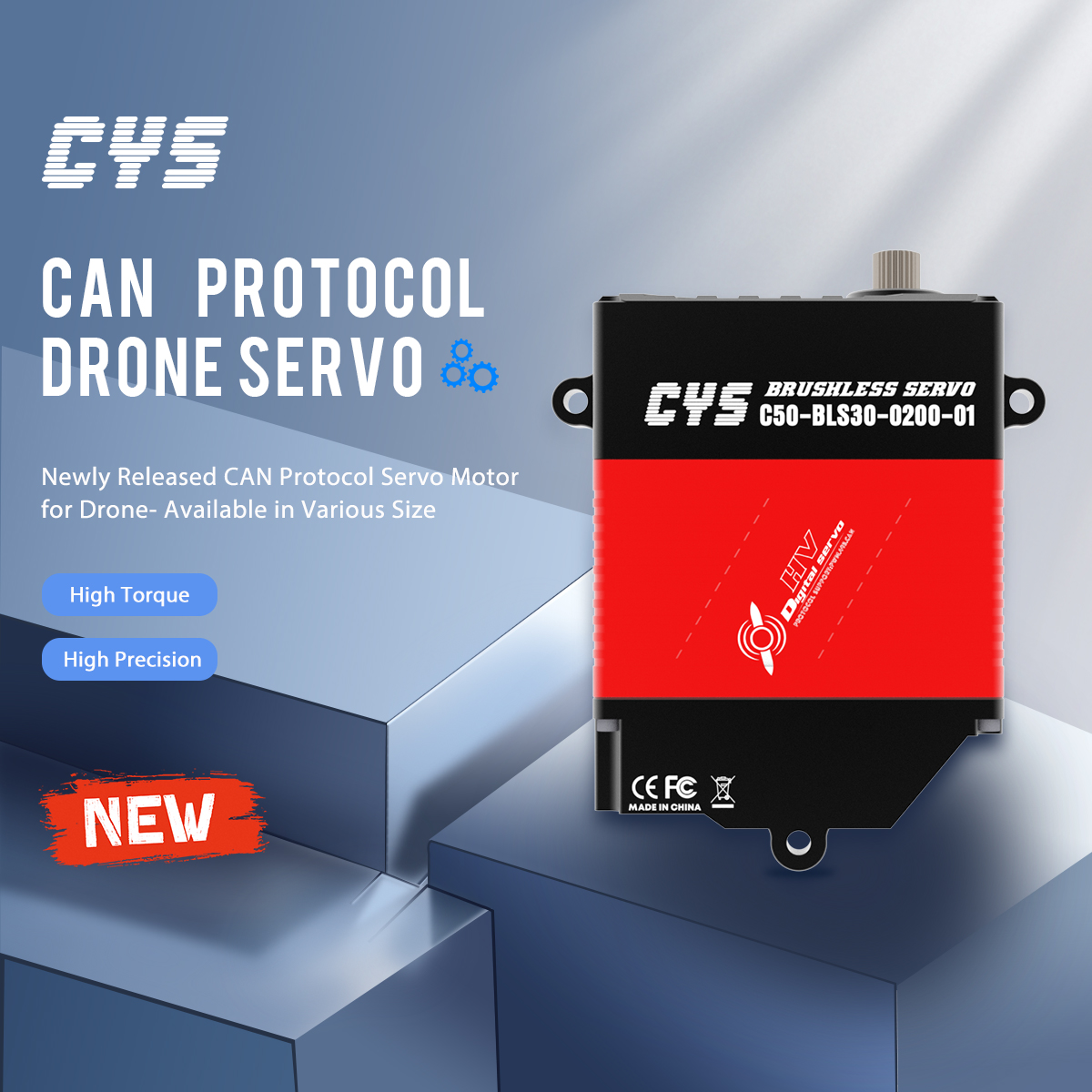

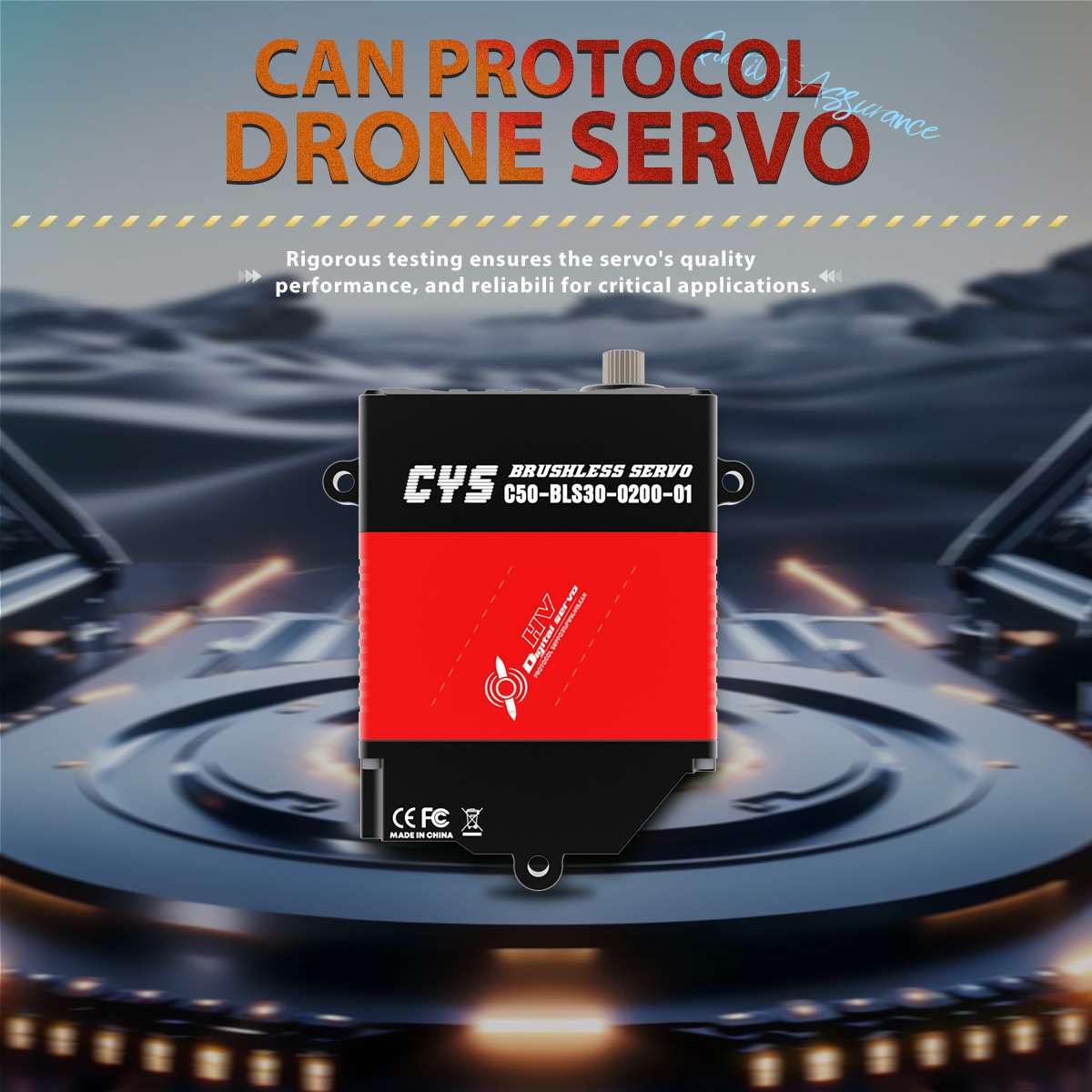

Description :200KG Full Metal Case Brushless Motor Servo for Waterproof Steel Gear Bus Drones UAV Accs CAN Protoco

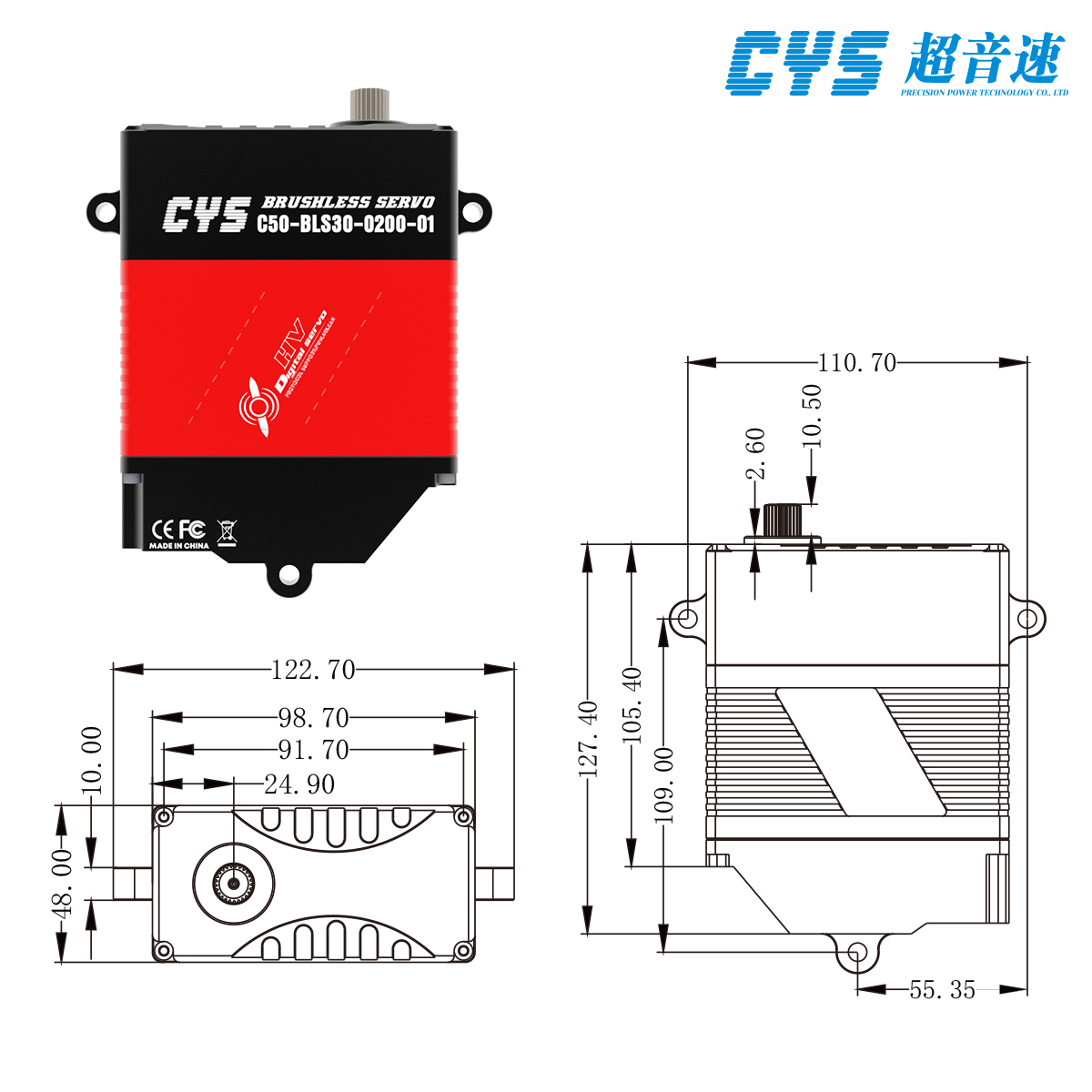

Size : 99mm*48mm*128mm(±0.2mm）
Stalling Torque :650Kgf.cm@30V
Rated Torque :200Kgf.cm@30V
Voltage : DC24V-32V
Weight :1350g(±10%）

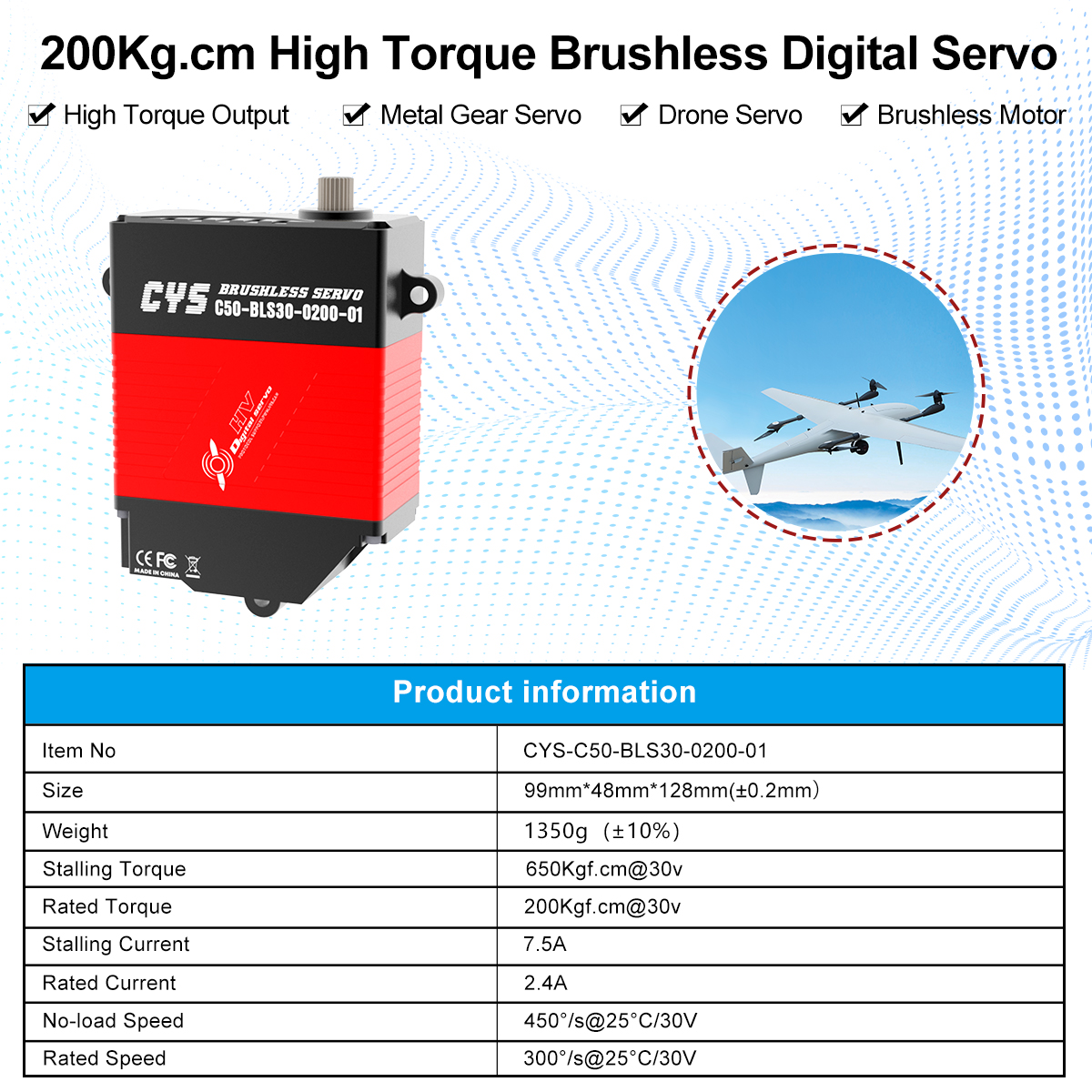

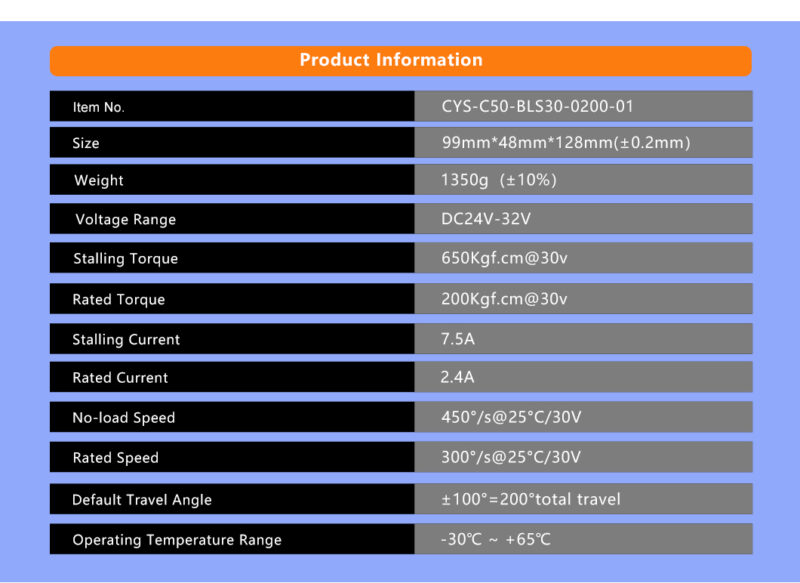

| Item No. | CYS-C50-BLS30-0200-01 |
| Size | 99mm*48mm*128mm(±0.2mm） |
| Weight | 1350g(±10%） |
| Stalling Torque | 650Kgf.cm@30V |

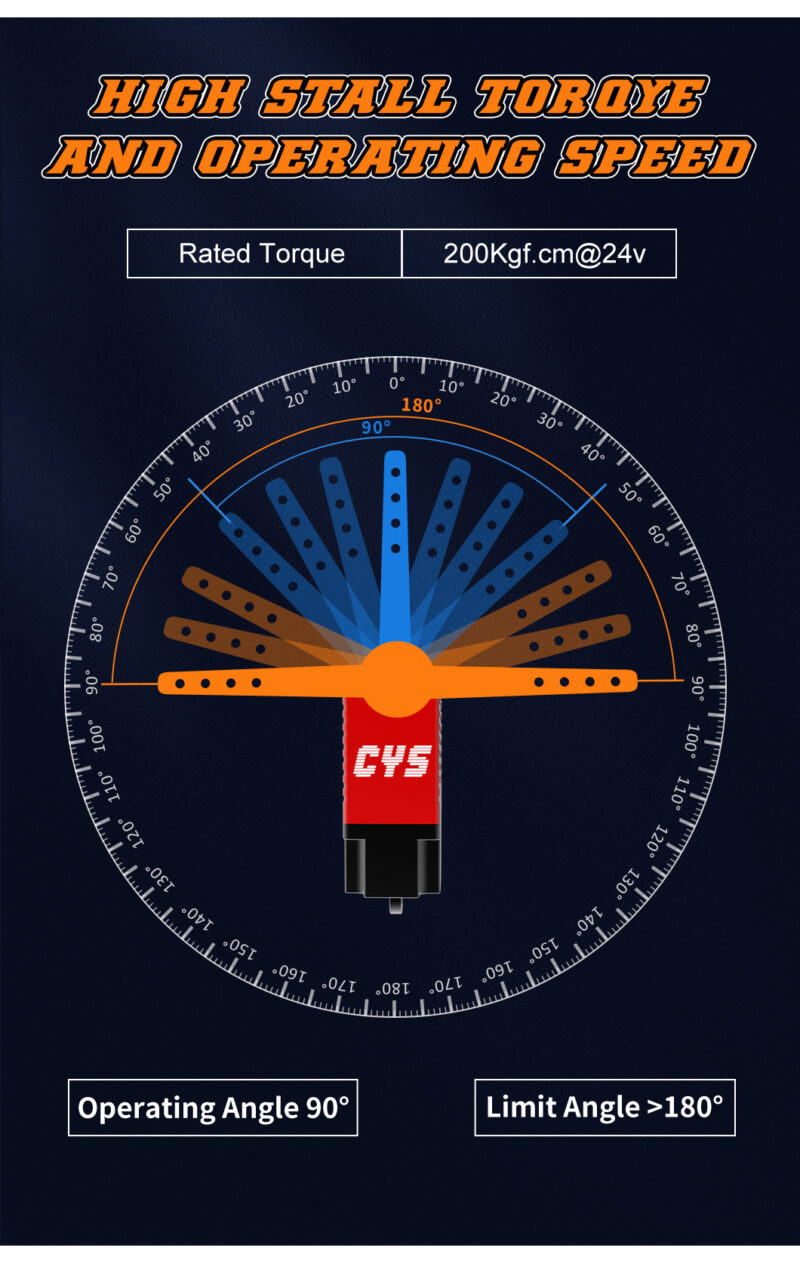

| Rated Torque | 200Kgf.cm@30V |
| Stalling Current | 7.5A |
| Rated Current | 2.4A |
| No-load Speed | 450°/s@25°C/16.8V |
| Rated Speed | 300°/s@25°C/16.8V |
| Type | Brushless Motor |
| Baud-Rate | 500Kbps |
| Operating Voltage Range | DC24V-32V |
