Item NO.: CYS-S8204-03

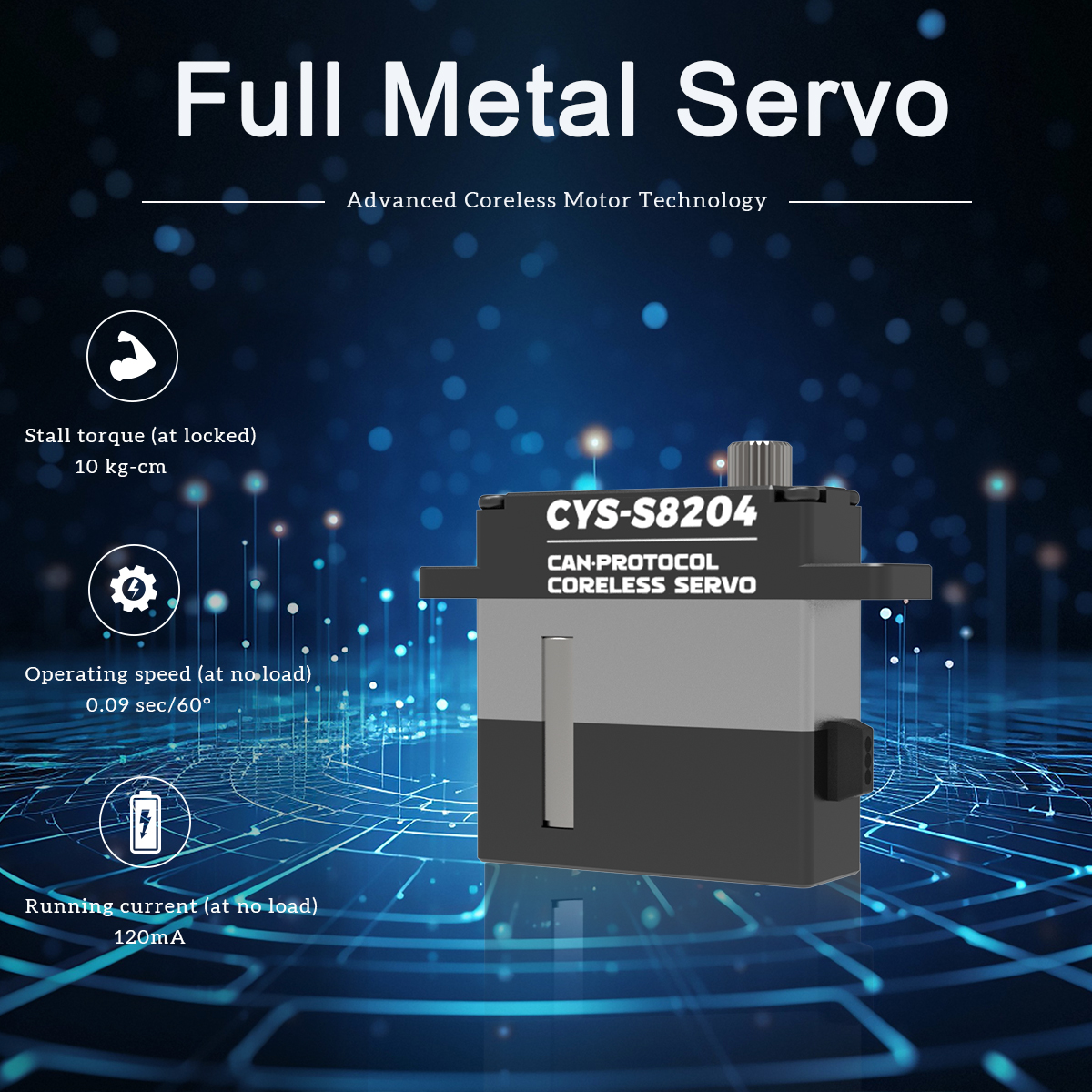

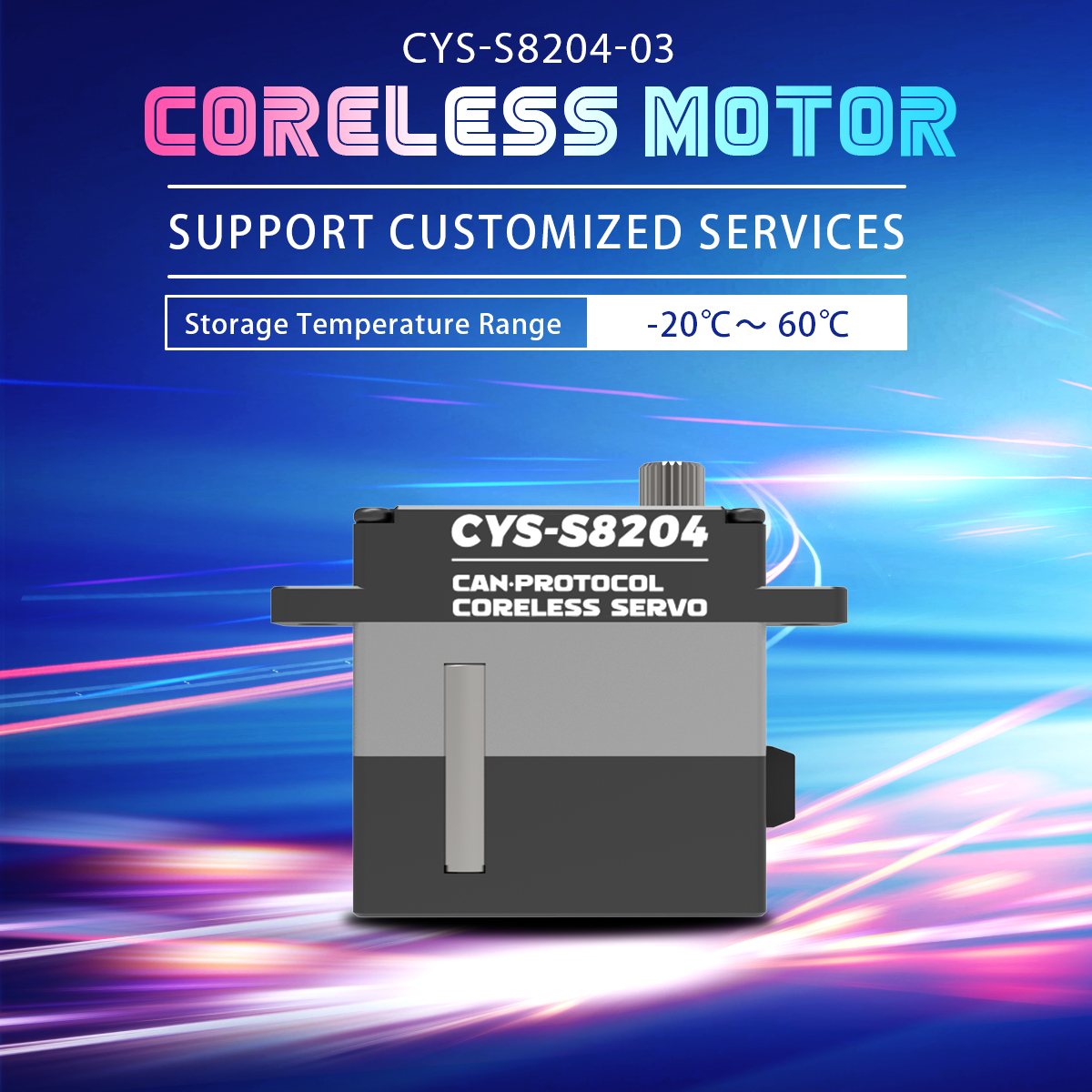

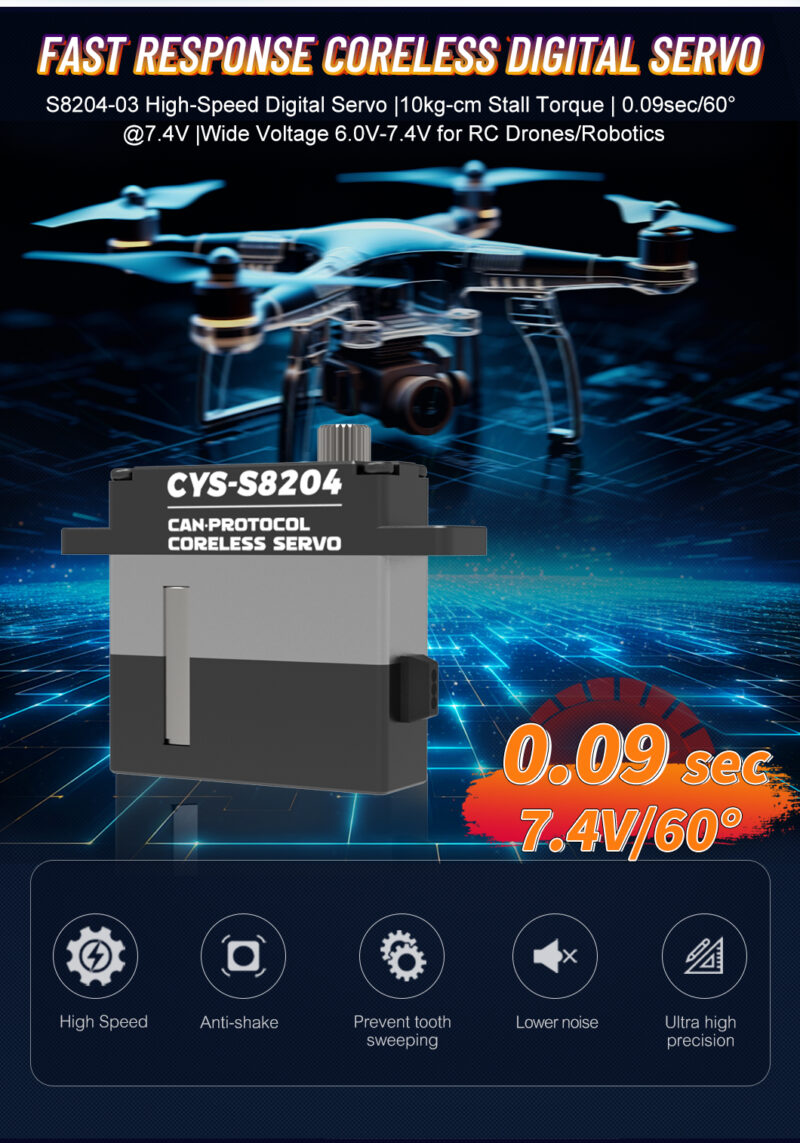

Description : 10kg Full Metal Case Coreless Motor Digital Wing Servo 25t Can

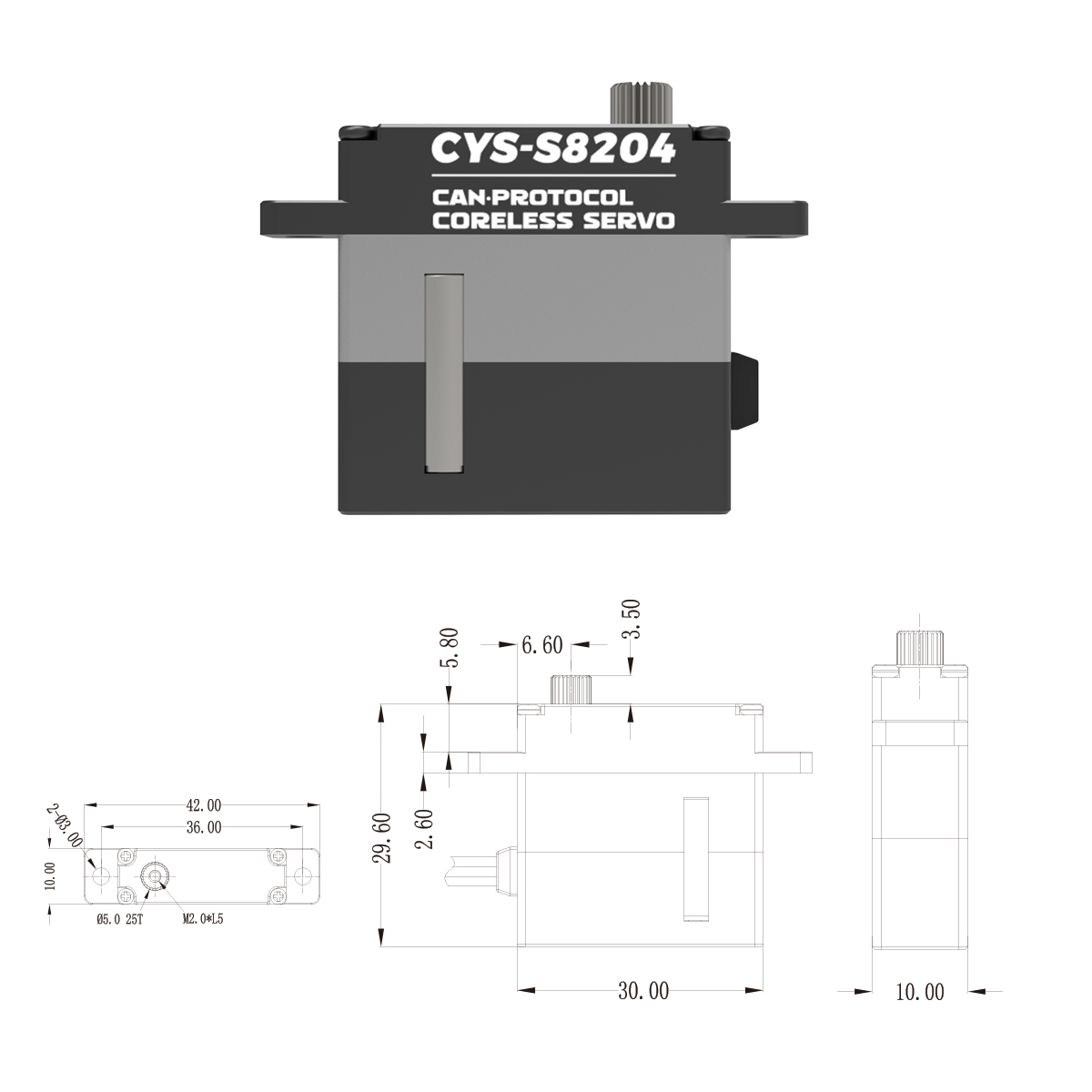

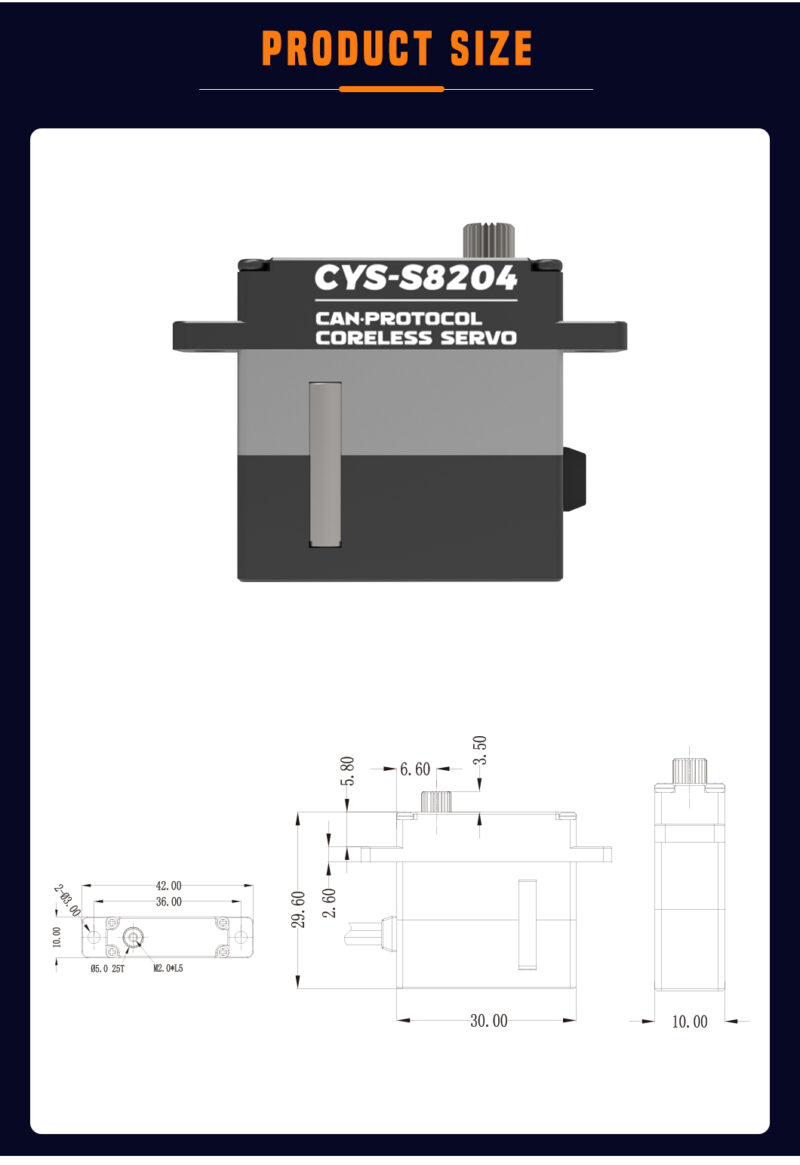

Size :30*10*33.6MM
Torque :7Kg.cm ~ 10Kg.cm

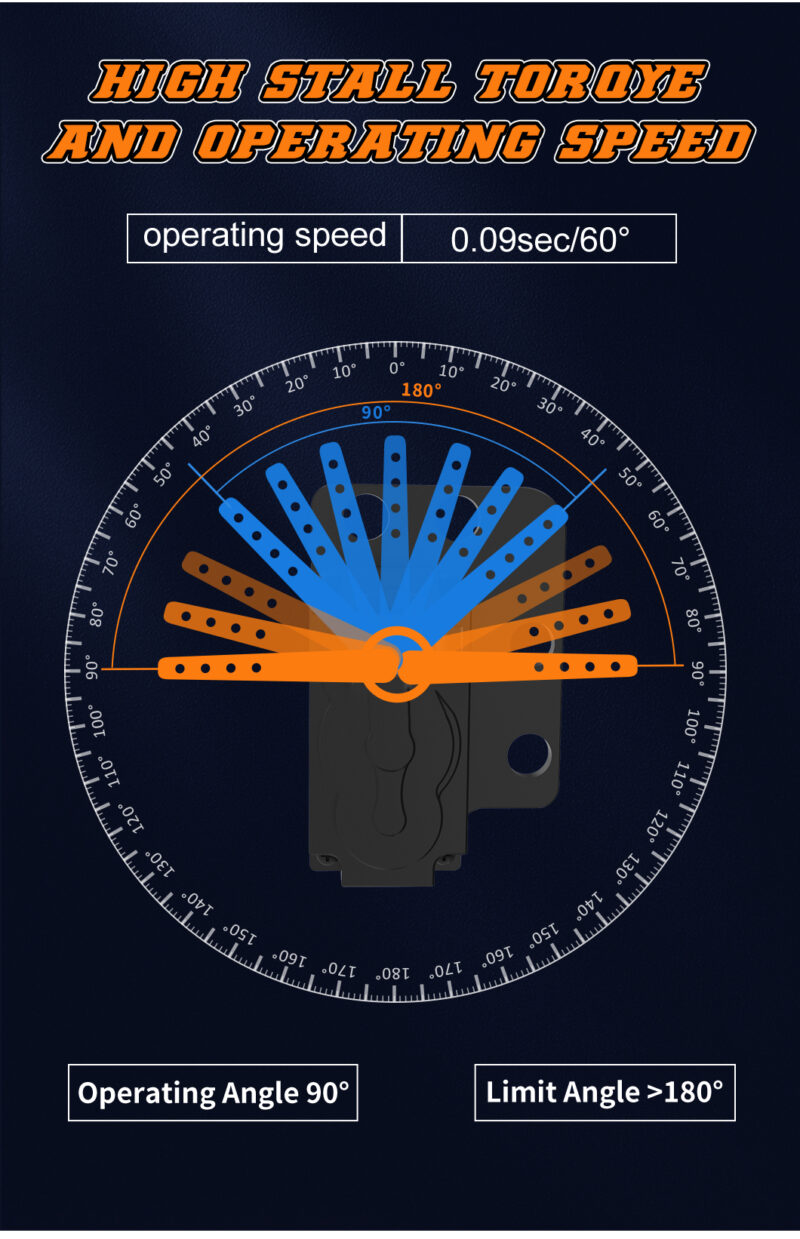

Speed : 0.11sec ~ 0.09sec/60 degree
Voltage : 6.0Volts ~8.4Volts
Weight : 27±1g

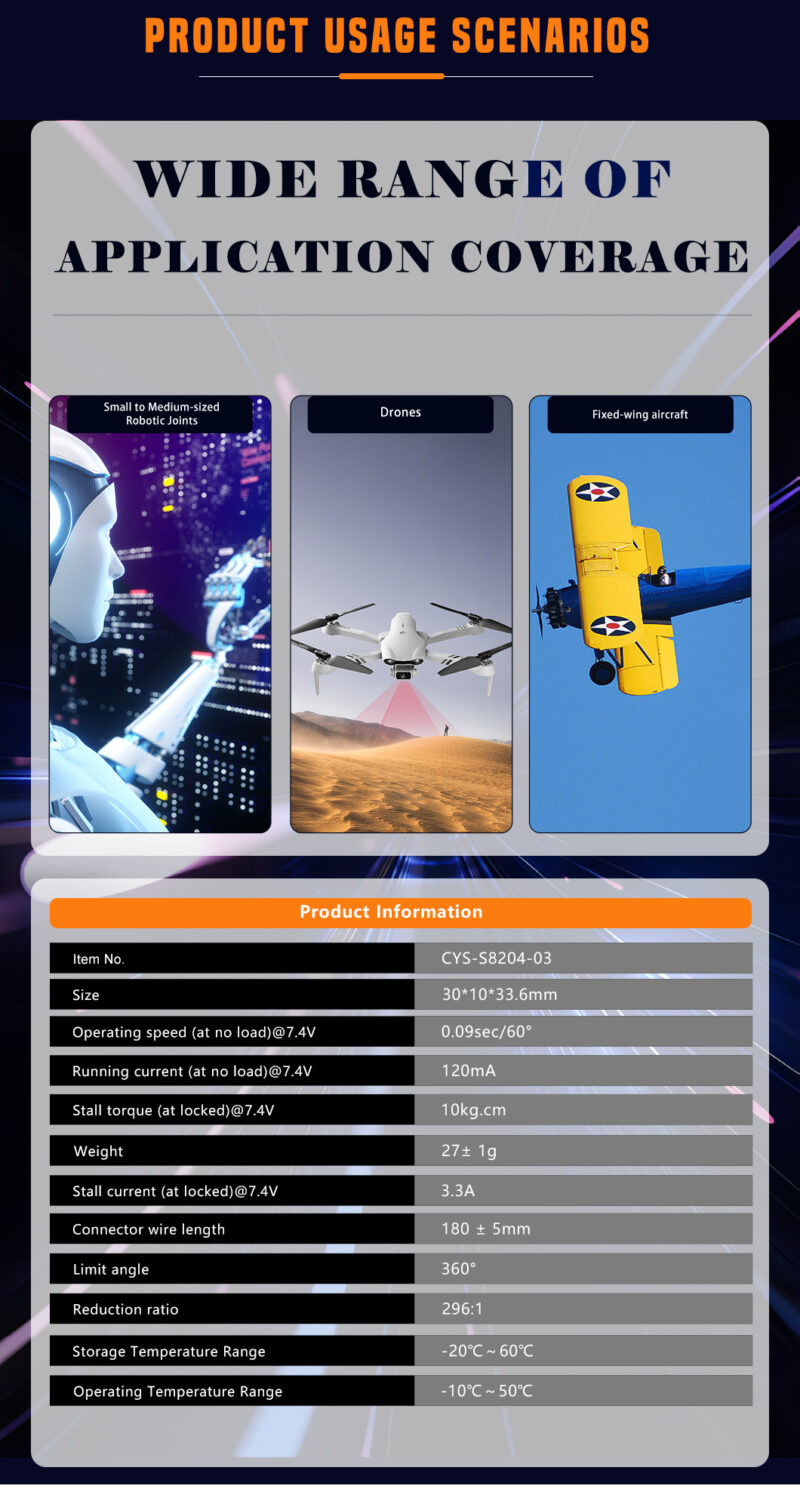

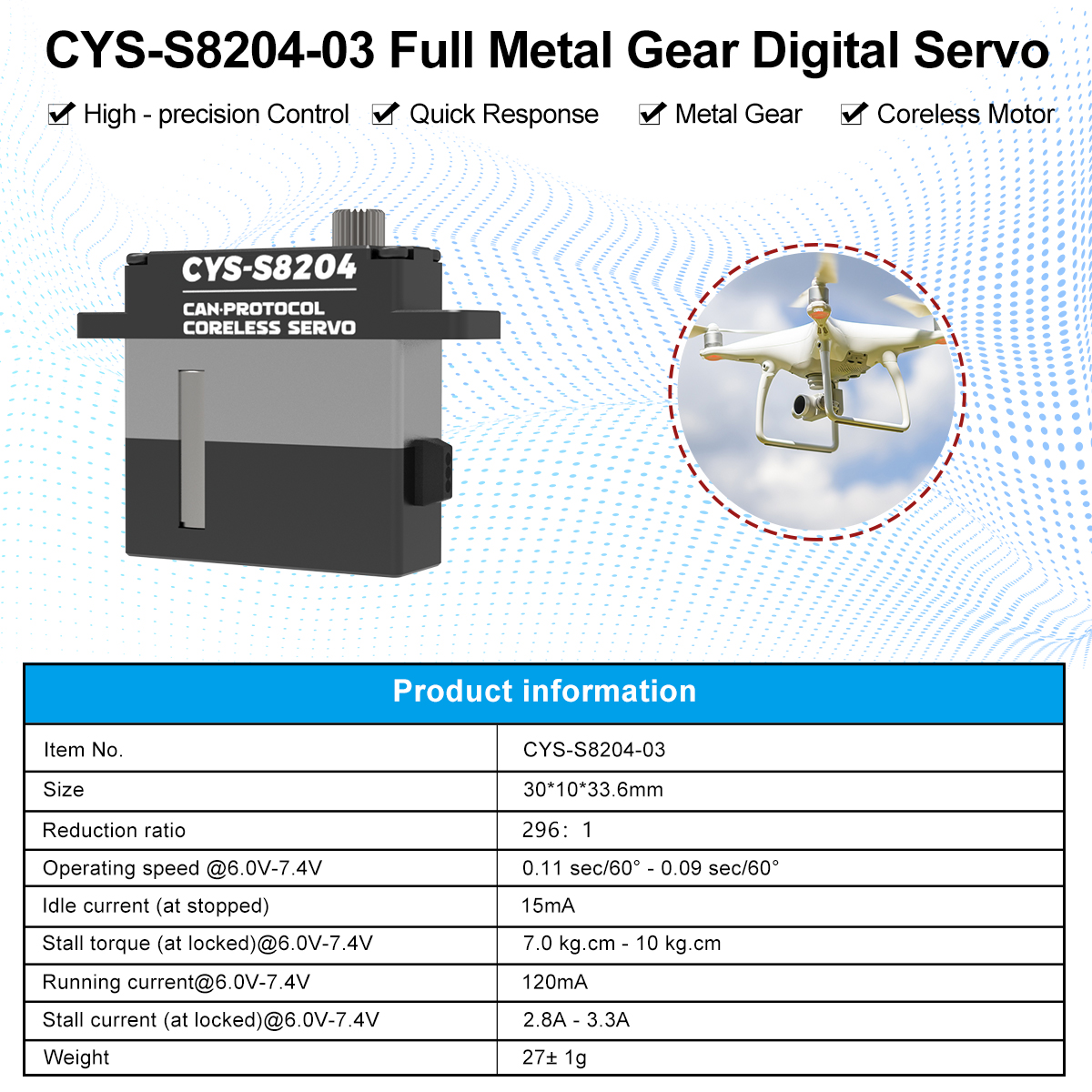

| Item No. | CYS-S8204-03 |
| Size | 30*10*33.6mm |
| Weight | 27±1g |
| Operating speed (at no load)@6.0V | 0.11sec/60° |
| Operating speed (at no load)@7.4V | 0.09sec/60° |
| Stall torque @6.0V | 7kg.cm |
| Stall torque @7.4V | 10kg.cm |
| Running current @6.0V | 120mA |
| Running current @7.4V | 120mA |
| Stall current @6.0V | 2.8A |
| Stall current @7.4V | 3.3A |
| Idle Current | 15mA |
| Connector wire length | 180±5mm |
| Operating Voltage Range | 6.0～8.4V |
