Item NO.: CYS-bls1500 Digital high torque servo

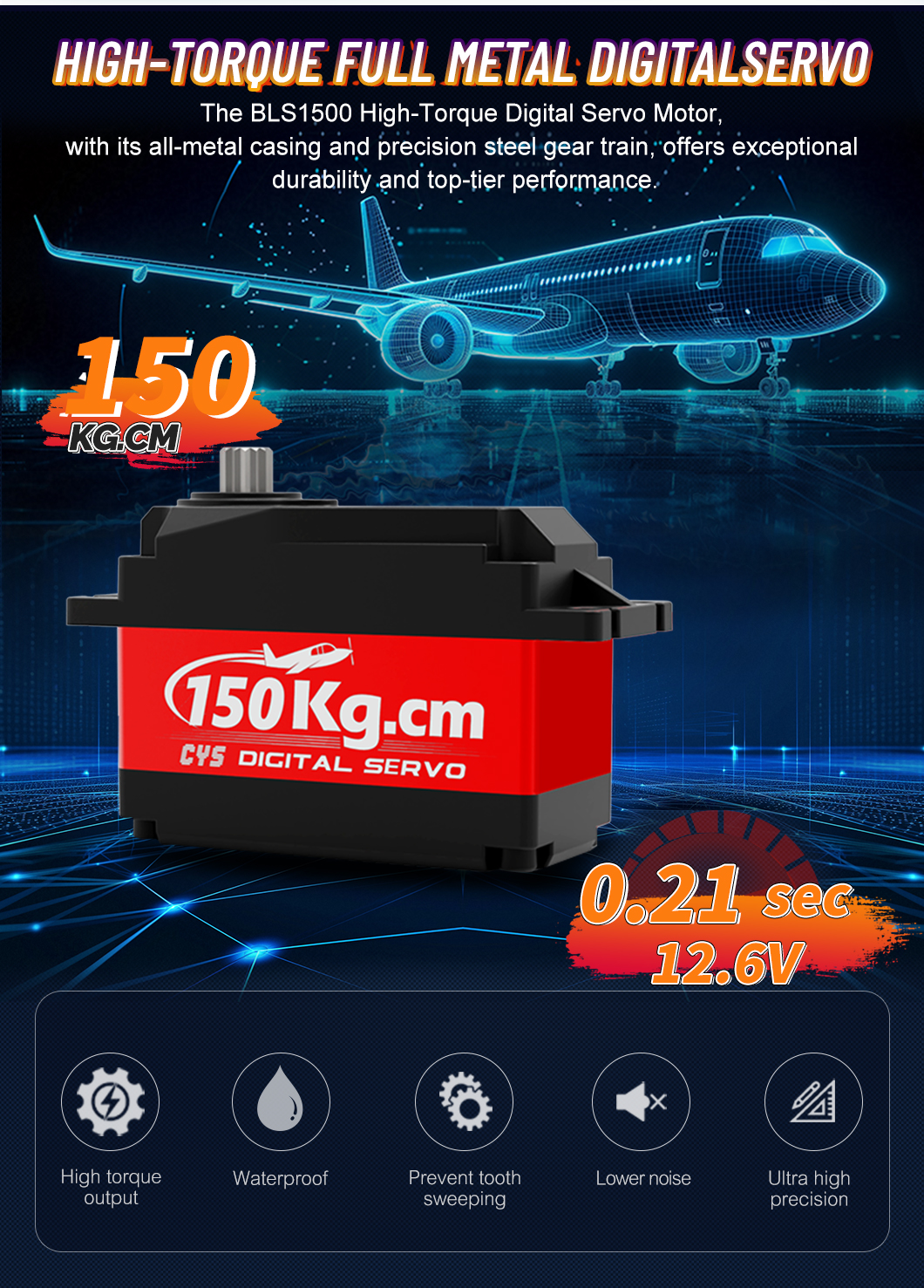

Description : 150kg·cm High-Torque Digital Brushless Servo with All-Metal Gears

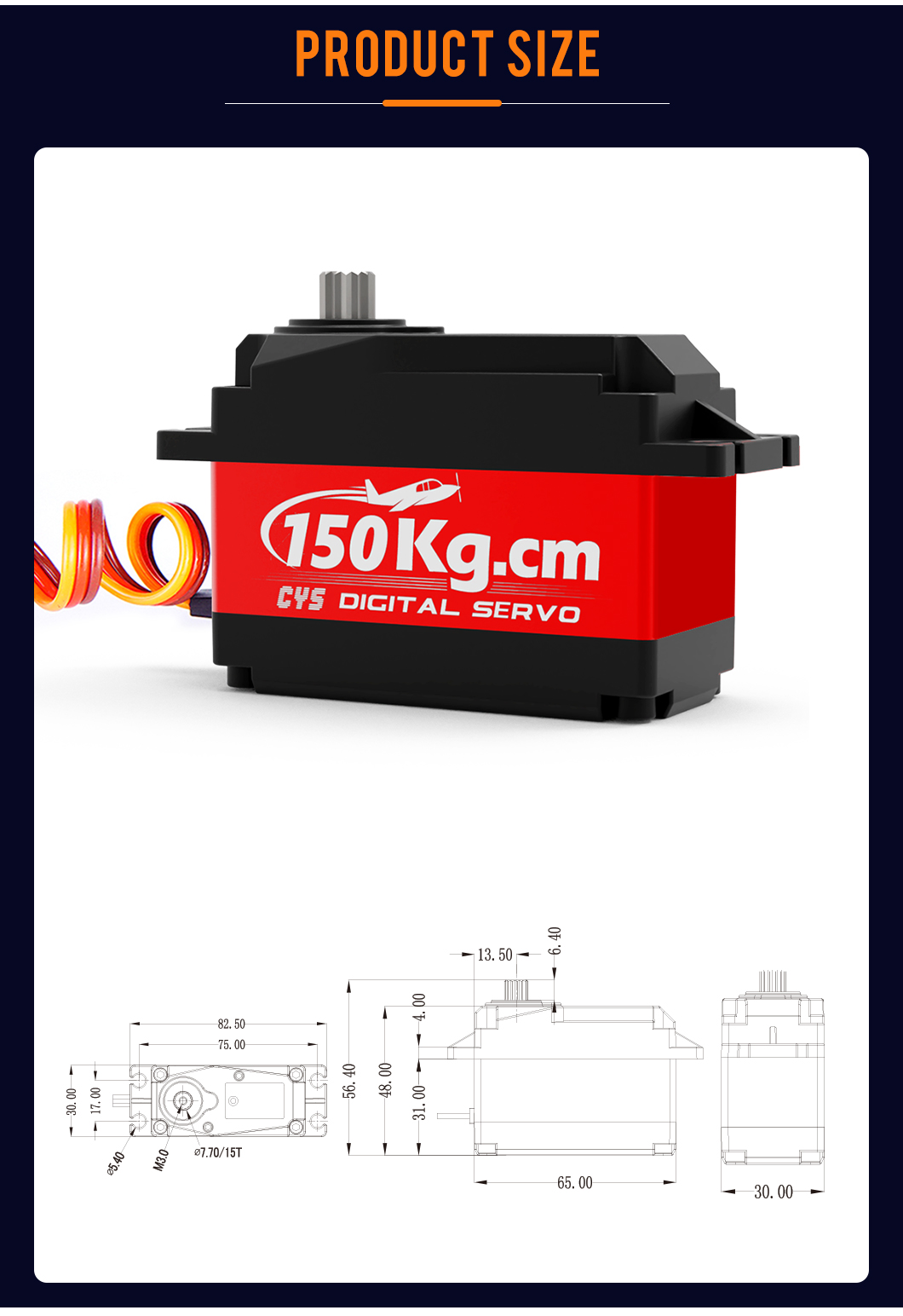

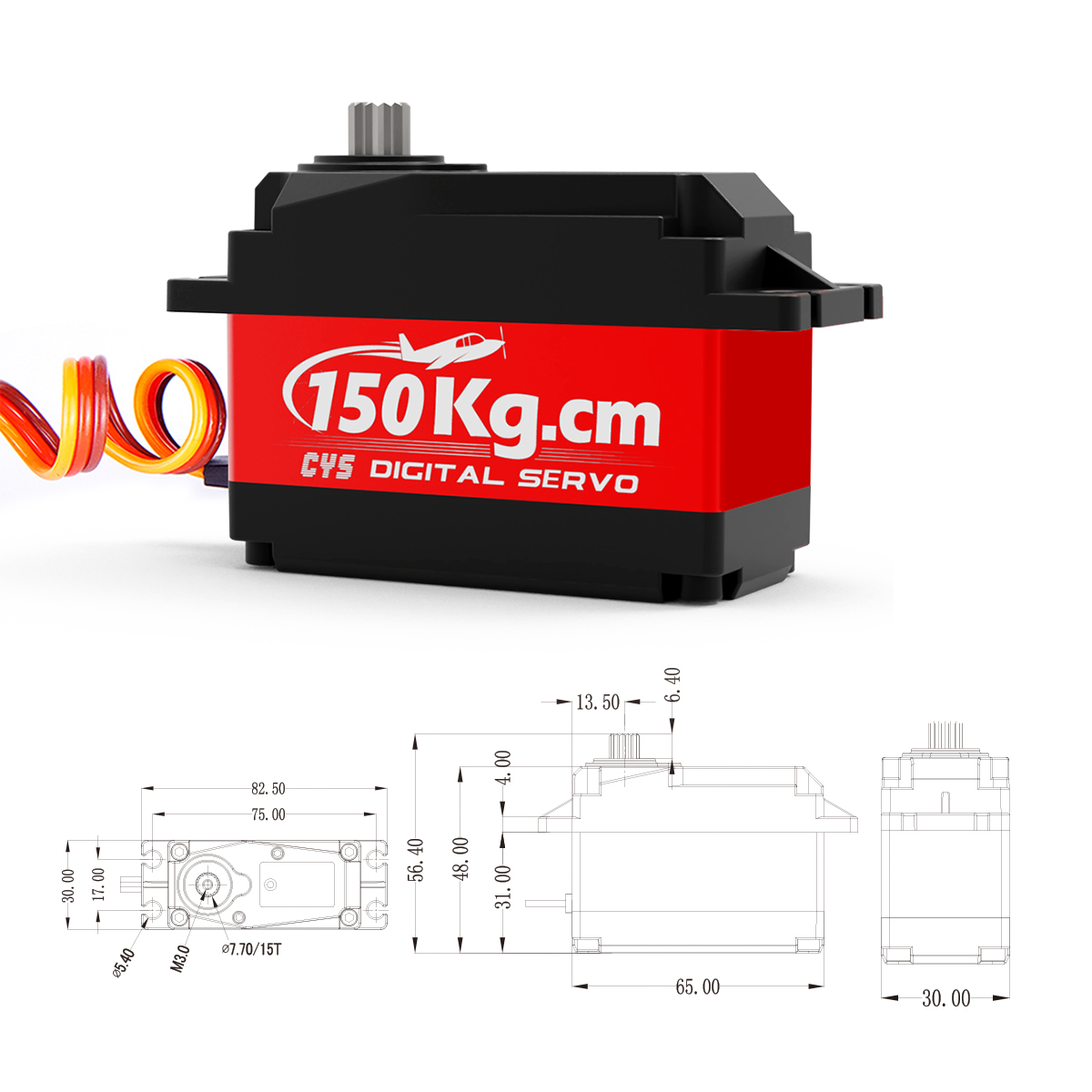

Size : 65*30*48MM
Torque :120Kg.cm ~ 150Kg.cm
Speed : 0.27sec ~ 0.215sec/60 degree
Voltage : 9.0Volts ~12.6Volts
Weight : 181± 1 g
| Item No. | CYS-BLS1500 |
| Size | 65*30*48mm |
| Weight | 181 ± 1 g |
| Operating speed (at no load)@9.0V | 0.27sec/60° |
| Operating speed (at no load)@12.6V | 0.21sec/60° |
| Stall torque @9.0V | 120kg-cm |
| Stall torque @12.6V | 150kg-cm |
| Running current @9.0V | 120mA |
| Running current @12.6V | 150mA |
| Stall current @9.0V | 7.7A |
| Stall current @12.6V | 10.73A |
| Idle Current | 15mA |
| Connector wire length | 320± 5 mm |
| Operating Voltage Range | 9.0V～12.6V |
