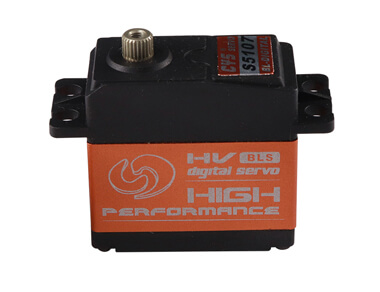

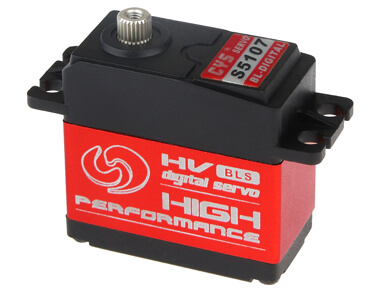

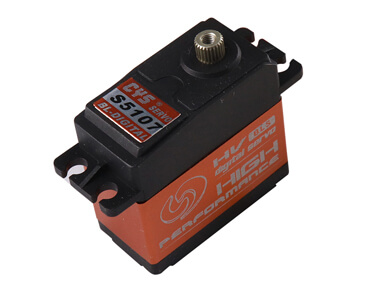

CYS-BLS5107 High speed brushless servo for rc plane

/, RC Helicopter Servo/CYS-BLS5107 High speed brushless servo for rc plane
CYS-BLS5107 High speed brushless servo for rc plane2019-08-02T08:20:22+00:00

Project Description

Item NO.: CYS-BLS5107  High speed brushless digital servo

Description : 7Kg brushless digital tail servo for rc helicopter

Size : 40*20*39MM

Torque : 6Kg.cm ~ 7Kg.cm

Speed : 0.06sec ~ 0.05sec/60 degree

Voltage : 6.0Volts ~7.4Volts

Weight : 64± 1 g

Datasheet download

Application&Features

TypeDigital
Weight64g±1g
Size40.3*20.3*39.2mm
Control System(+)Pulse Width Control 1500usec Neutral
Operating Voltage6.0~7.4Volts
Operating Temperature Range(-)10 to +50 degree C
Operating Speed (6.0V)0.06sec/60° at no load
Operating Speed (7.4V)0.05sec/60° at no load
Stall Torque (6.0V)5.5kg.cm
Stall Torque (7.4V)7kg.cm
Operating Angle45deg.one side pulse traveling 500 usec
DirectionAnticlockwise/Pulse Traveling 1000~2000usec
Current Drain (6.0V)4mA/idle and 100mA no load operating
Current Drain (7.4V)5mA/idle and 120mA no load operating
Stall Current2.7A/3.2A
Dead Band Width2usec
Motor TypeBrushless motor
Bearing TypeDual Ball Bearing
Horn gear spline25T
Gear TypeTitanium
Connector Wire Length300mm ± 5mm
Wire infoBrown/Black = Negative
Red = Positive
Orange/White = Signal
