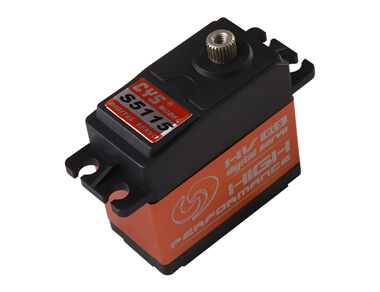

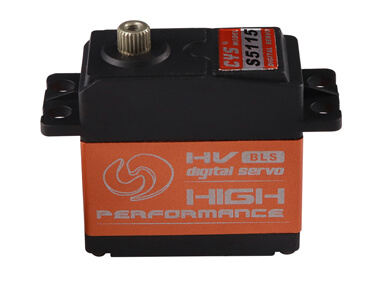

CYS-BLS5115 15Kg digital brushless servo motor

/, RC Helicopter Servo/CYS-BLS5115 15Kg digital brushless servo motor
CYS-BLS5115 15Kg digital brushless servo motor2019-08-02T08:19:46+00:00

Project Description

Item NO.: CYS-BLS5115  Brushless digital servo

Description : 15Kg brushless swashplate digital servo for helicopter

Size : 40*20*39MM

Torque : 13Kg.cm ~ 15Kg.cm

Speed : 0.08sec ~ 0.07sec/60 degree

Voltage : 6.0Volts ~7.4Volts

Weight : 64± 1 g

Datasheet download

Application&Features

TypeDigital
Weight64g ±1g
Size40.3*20.3*39.2mm
Control System(+)Pulse Width Control 1500usec Neutral
Operating Voltage6.0~7.4Volts
Operating Temperature Range(-)10 to +50 degree C
Operating Speed (6.0V)0.08sec/60° at no load
Operating Speed (7.4V)0.07sec/60° at no load
Stall Torque (6.0V)13kg.cm
Stall Torque (7.4V)15kg.cm
Operating Angle45deg.one side pulse traveling 500 usec
DirectionAnticlockwise/Pulse Traveling 1000~2000usec
Current Drain (6.0V)5mA/idle and 100mA no load operating
Current Drain (7.4V)5mA/idle and 120mA no load operating
Stall Current3.2A/3.8mA
Dead Band Width2usec
Motor TypeBrushless motor
Bearing TypeDual Ball Bearing
Horn gear spline25T
Gear TypeTitanium
Connector Wire Length300mm ± 5mm
Wire infoBrown/Black = Negative
Red = Positive
Orange/White = Signal
