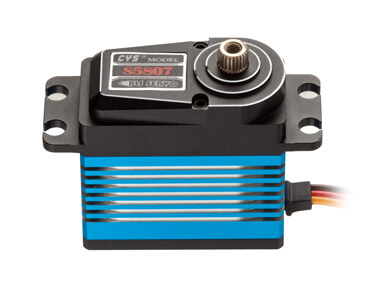

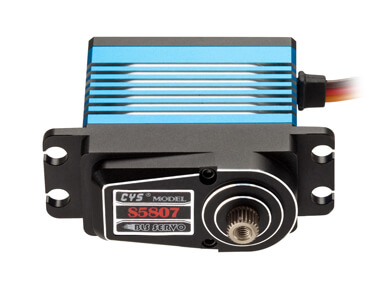

CYS-BLS5807 High speed tail servo 600-700 helicopter

/, RC Helicopter Servo/CYS-BLS5807 High speed tail servo 600-700 helicopter
CYS-BLS5807 High speed tail servo 600-700 helicopter2019-08-02T06:59:16+00:00

Project Description

Item NO.: CYS-BLS5807

Description : Tail servo with high speed for 600-700 classes helicopter

Size : 40*20*39MM

Torque : 6.0Kg.cm ~ 7.00Kg.cm

Speed : 0.06sec ~ 0.05sec/60 degree

Voltage : 6.0Volts ~7.4Volts

Weight :77± 1 g

Datasheet download

Application&Features

TypeDigital
Weight72g±1g
Size40*20*39.35mm
Control System(+)Pulse Width Control 1500usec Neutral
Operating Voltage6.0~7.4Volts
Operating Temperature Range(-)10 to +50 degree C
Operating Speed (6.0V)0.06sec/60° at no load
Operating Speed (7.4V)0.05sec/60° at no load
Stall Torque (6.0V)5.5kg.cm
Stall Torque (7.4V)7kg.cm
Operating Angle45deg.one side pulse traveling 500 usec
DirectionAnticlockwise/Pulse Traveling 1000~2000usec
Current Drain (6.0V)20mA/idle and 80mA no load operating
Current Drain (7.4V)20mA/idle and 100mA no load operating
Stall Current2.7A/3.2A
Dead Band Width2usec
Motor TypeBrushless motor
Bearing TypeDouble ball bearing
Horn gear spline25T
Gear TypeTitanize
Connector Wire Length300mm±5mm
Wire infoBrown/Black = Negative
Red = Positive
Orange/White = Signal
