Project Description

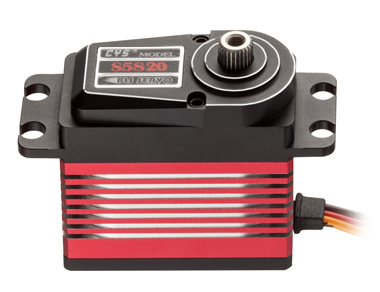

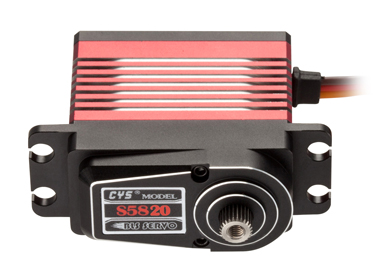

Item NO.: CYS-BLS5820  Brushless steel gear servo

Description : 20Kg digital brushless servo for 700 classes swashplate

Size : 40*20*39MM

Torque : 17Kg.cm ~ 20Kg.cm

Speed : 0.11sec ~ 0.09sec/60 degree

Voltage : 6.0Volts ~7.4Volts

Weight : 77± 1 g

Datasheet download
TypeDigital
Weight72g±1g
Size40*20*39.35mm
Control System(+)Pulse Width Control 1500usec Neutral
Operating Voltage6.0~7.4Volts
Operating Temperature Range(-)10 to +50 degree C
Operating Speed (6.0V)0.11sec/60° at no load
Operating Speed (7.4V)0.09sec/60° at no load
Stall Torque (6.0V)17kg.cm
Stall Torque (7.4V)20kg.cm
Operating Angle45deg.one side pulse traveling 500 usec
DirectionAnticlockwise/Pulse Traveling 1000~2000usec
Current Drain (6.0V)20mA/idle and 80mA no load operating
Current Drain (7.4V)20mA/idle and 100mA no load operating
Stall Current3.0A/3.5A
Dead Band Width2usec
Motor TypeBrushless motor
Bearing TypeDouble ball bearing
Horn gear spline25T
Gear TypeTitanize
Connector Wire Length300mm±5mm
Wire infoBrown/Black = Negative
Red = Positive
Orange/White = Signal
