Project Description

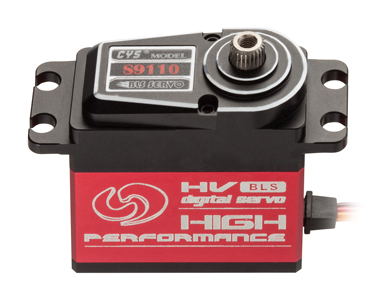

Item NO.: CYS-BLS9110 10Kg Brushless Servo Motor

Description : 10Kg Brushless Servo for 1/10 RC Car

Size :40*20*41.4MM

Torque : 8Kg.cm ~ 10Kg.cm

Speed : 0.08sec ~ 0.06sec/60 degree

Voltage : 6.0Volts ~7.4Volts

Weight : 82± 1 g

Datasheet download

Application&Features

TypeDigital
Weight82g ±1g
Size40*20*41.4.mm
Control System(+)Pulse Width Control 1500usec Neutral
Operating Voltage6.0~7.4Volts
Operating Temperature Range(-)10 to +50 degree C
Operating Speed (6.0V)0.078sec/60° at no load
Operating Speed (7.4V)0.062sec/60° at no load
Stall Torque (6.0V)8kg.cm
Stall Torque (7.4V)10kg.cm
Operating Angle45deg.one side pulse traveling 500 usec
360 ModifiableNo
DirectionAnticlockwise/Pulse Traveling 1000~2000usec
Current Drain (6.0V)20mA/idle and 80mA no load operating
Current Drain (7.4V)20mA/idle and 100mA no load operating
Stall Current2.6A/3.3A
Dead Band Width2usec
Motor TypeBrushless motor
Bearing TypeDouble ball bearing
Horn gear spline25T
Gear TypeTitanize
Connector Wire Length300mm ± 5mm
Wire infoBrown/Black = Negative
Red = Positive
Orange/White = Signal
drawing of BLS 9130 servo
