Project Description

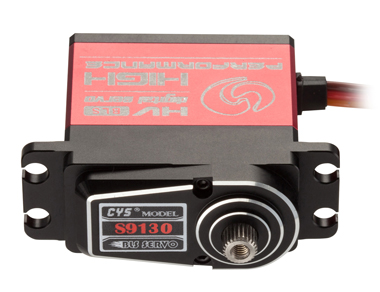

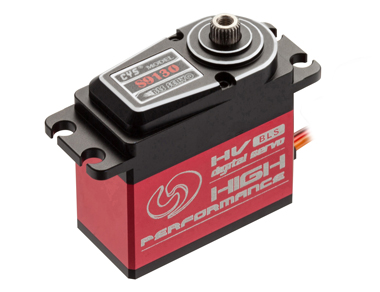

Item NO.: CYS-BLS9130 30Kg Brushless Servo

Description : Brushless 30Kg Digital Servo with steel gear/ all aluminum case

Size : 40*20*41.4MM

Torque : 26Kg.cm ~ 30Kg.cm

Speed : 0.14sec ~ 0.12sec/60 degree

Voltage :6.0Volts ~7.2Volts

Weight : 82g±1 g

Datasheet download

Application&Features

TypeDigital
Weight82g±1g
Size40*20*41.4mm
Control System(+)Pulse Width Control 1500usec Neutral
Operating Voltage6.0 ~7.4Volts
Operating Temperature Range(-)20 to +60 degree C
Operating Speed (6.0V)0.14sec/60° at no load
Operating Speed (7.4V)0.11sec/60° at no load
Stall Torque (6.0V)26kg.cm
Stall Torque (7.4V)30kg.cm
Operating Angle45deg.one side pulse traveling 500 usec
360 ModifiableNo
DirectionAnticlockwise/Pulse Traveling 1000~2000usec
Current Drain (6.0V)20mA/idle and 120mA no load operating
Current Drain (7.4V)20mA/idle and 150mA no load operating
Stall Current3.8A/4.7A
Dead Band Width2usec
Motor TypeBrushless motor
Bearing TypeDual Ball Bearing
Horn gear spline25T
Gear TypeSteel
Connector Wire Length300mm±5mm
Wire infoBrown/Black = Negative
Red = Positive
Orange/White = Signal
drawing of BLS 9130 servo
