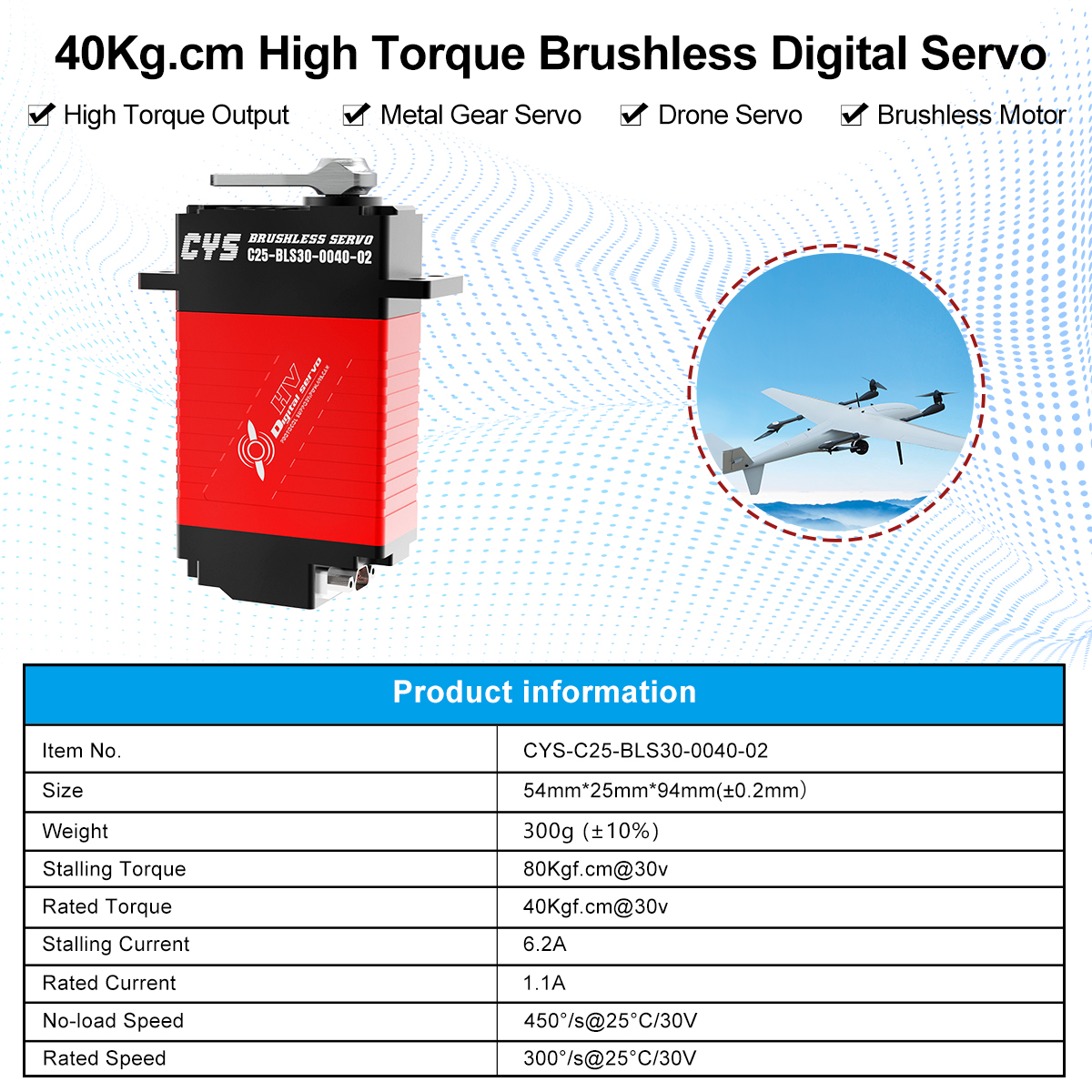

Item NO.: CYS-C25-BLS30-0040-02

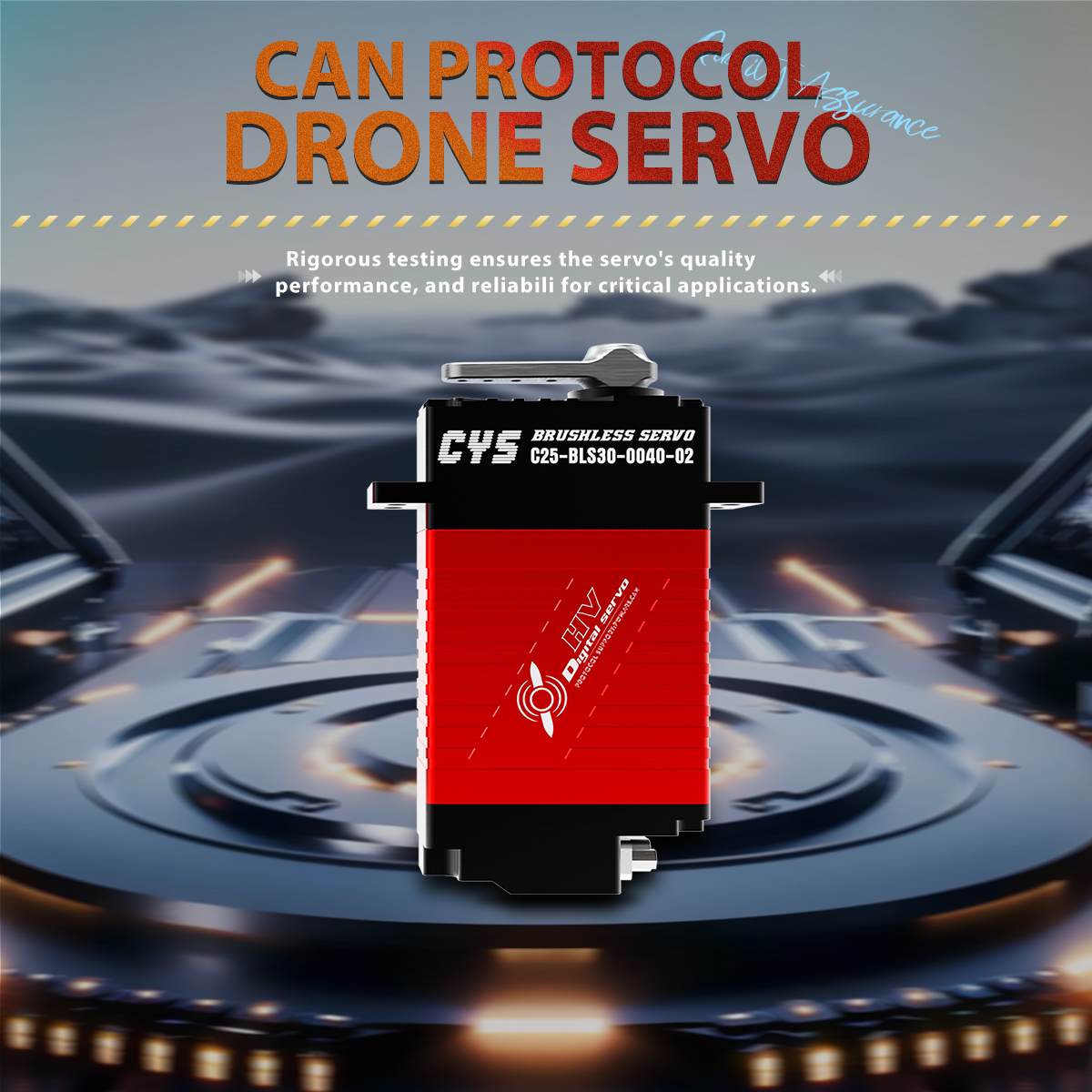

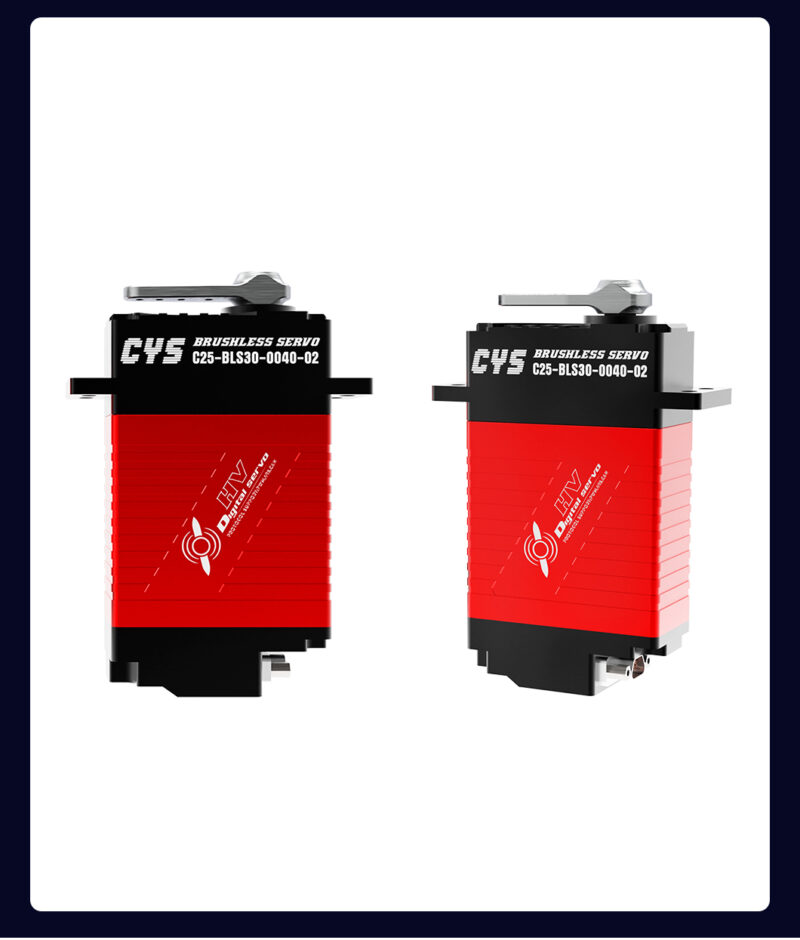

Description : 40KG Full Metal Case Brushless Motor Servo with CAN Protocol Waterproof Steel Gear Bus for Drones

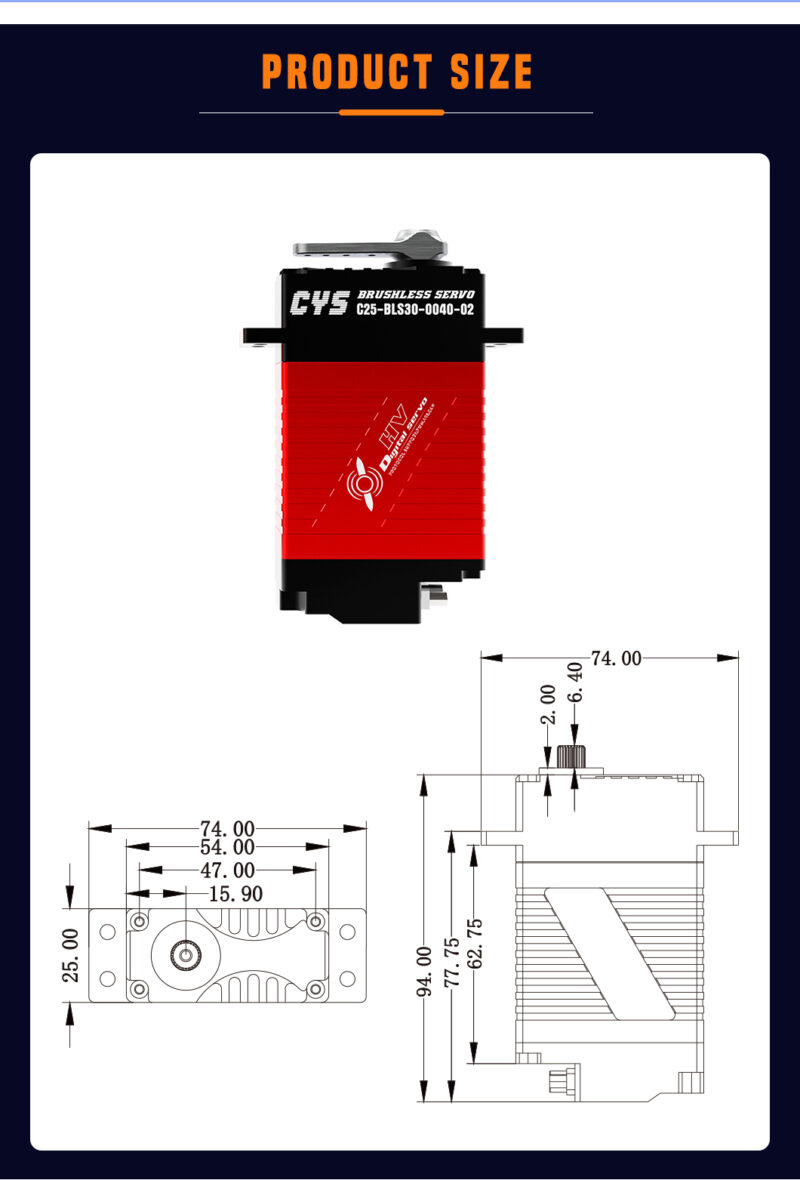

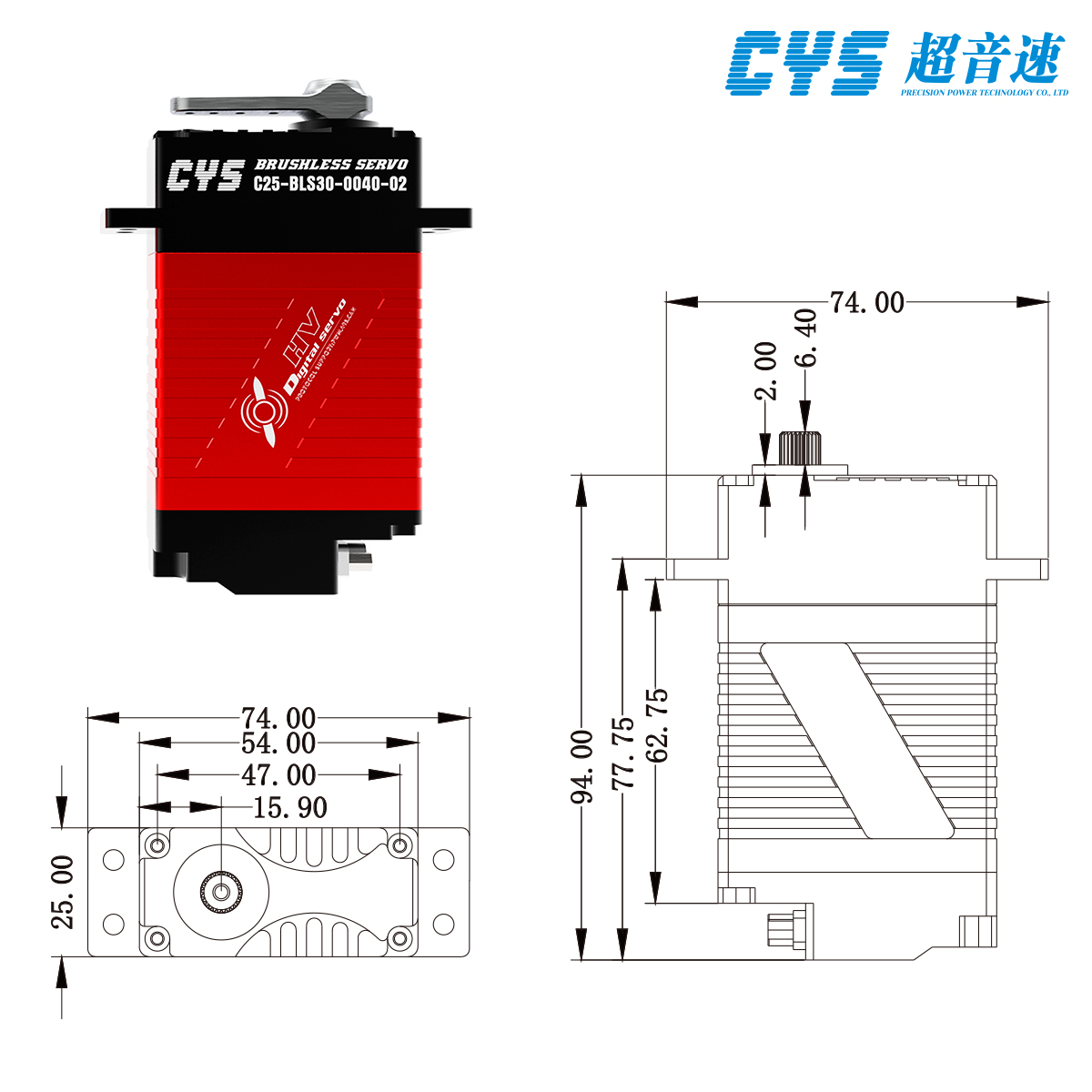

Size : 54mm*25mm*94mm(±0.2mm）
Stalling Torque :80Kgf.cm@30V

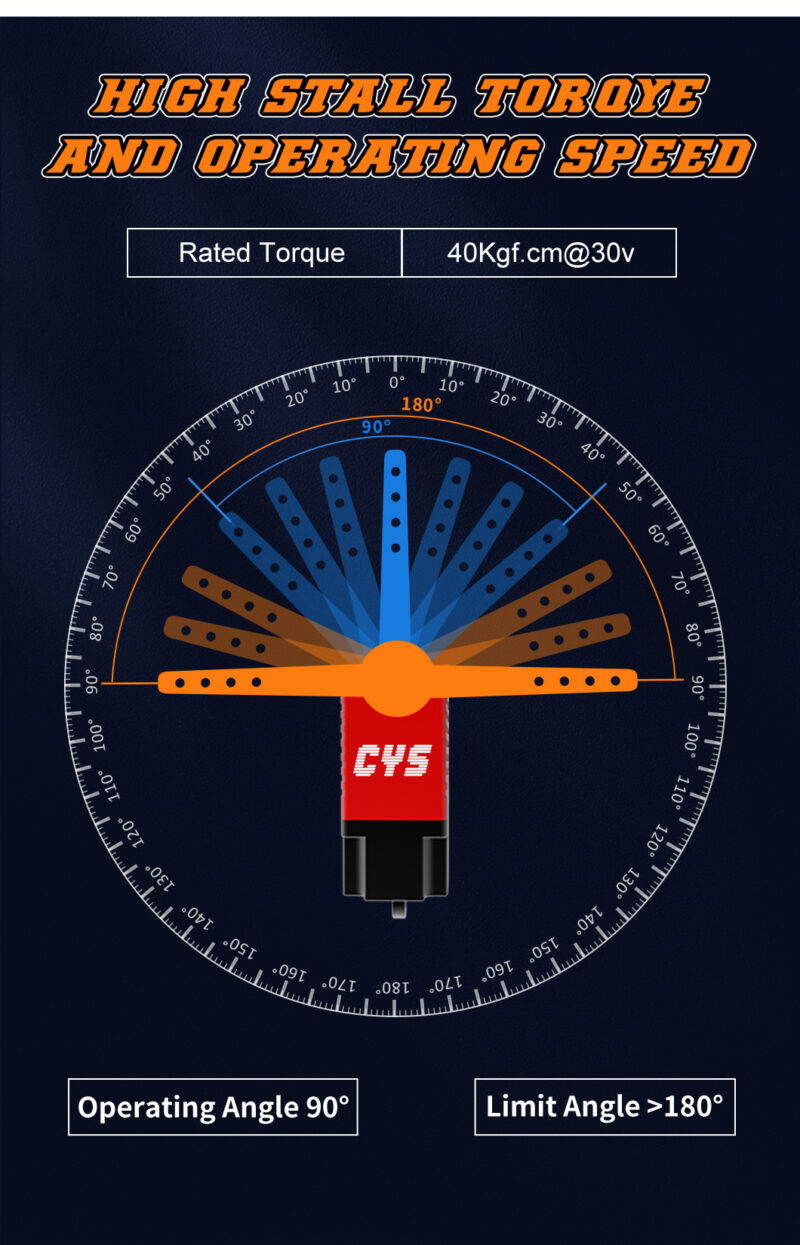

Rated Torque :40Kgf.cm@30V
Voltage : DC24V-32V
Weight :300g(±10%）

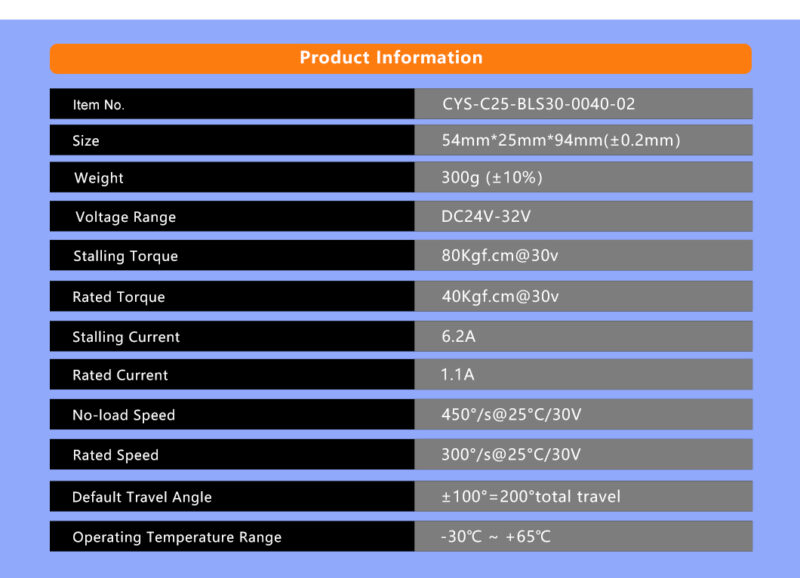

| Item No. | CYS-C25-BLS30-0040-02 |
| Size | 54mm*25mm*94mm(±0.2mm） |
| Weight | 300g(±10%） |
| Stalling Torque | 80Kgf.cm@30V |
| Rated Torque | 40Kgf.cm@30V |
| Stalling Current | 6.2A |
| Rated Current | 1.1A |
| No-load Speed | 450°/s@25°C/16.8V |
| Rated Speed | 300°/s@25°C/16.8V |

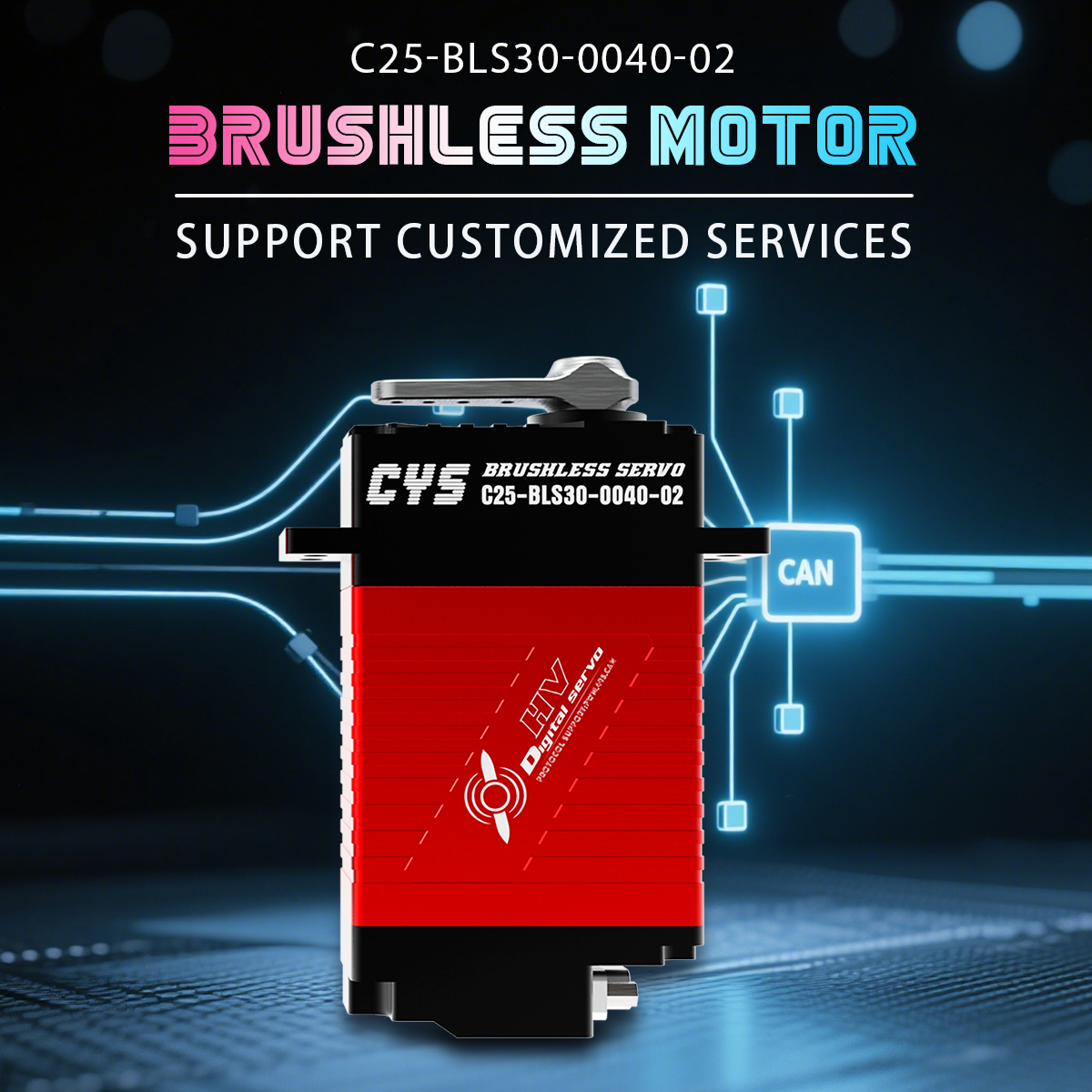

| Type | Brushless Motor |
| Baud-Rate | 500Kbps |
| Operating Voltage Range | DC24V-32V |
