Project Description

Item NO.: CYS-R2090

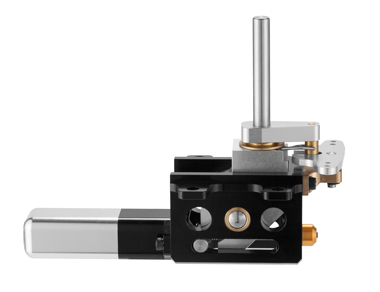

Description : Standard 90° Electronic Landing gear ( Retract)

Size : 103*24*32.5MM

Torque : 25Kg.cm

Speed : 5.6sec/90° at 6V ;  5.0sec/90° at 7V ; 4.6sec/90° at 8V

Voltage : DC 6.0Volts ~8Volts

Weight : 160± 5 g

Datasheet download

Application&Features

  • R2090 Landing gear set including 1* nose retract, 2* main retracts , 1* controller and 2* cables.
  • Used for 6 – 12kg Vortex / Jet aircraft .
  • Full aluminum case outside with unique design.
  • Nose retract for optional : 90 degree,  100 degree.
  • Main retract for optional : 80 degree , 85 degree , 95 degree(forward) ,95 degree (reverse ).
Set Content Nose retract*1, Main retract*2 , Controller*1 , cable*2
Weight160g(N) /142g(M)
Size103*24*32.5MM
Operating Speed (6.0V)5.6sec/90°
Operating Speed (7.4 V)5.0 sec/90°
Operating Speed 8.4 V)4.6sec/90°
Torque 25kg.cm
Stall Current5.8A/7.5A
Voltage6.0 ~8.0V
Input Voltage RangeDC 5 -9 Volt
Stall Current1.8A
Max Current 14A
Breaking Current 1.2A
Pulse Width Range 500 ~ 2500usec
