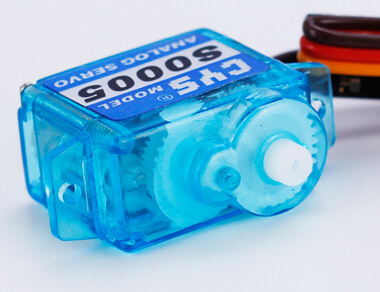

Item NO.: CYS-S0005 5g analog servo
Description : 5g mini servo for rc plane
Size : 21.5*11.8*20.9MM
Torque : 0.8Kg.cm ~ 1.0Kg.cm
Speed : 0.13sec ~ 0.11sec/60 degree
Voltage : 4.8Volts ~6.0Volts
Weight : 5g
Application&Features
| Type | Analog |
|---|---|
| Weight | 5g |
| Size | 21.5*11.8*20.9mm |
| Control System | (+)Pulse Width Control 1500usec Neutral |
| Operating Voltage | 4.8~6.0Volts |
| Operating Temperature Range | (-)10 to +50 degree C |
| Operating Speed (4.8V) | 0.14sec/60° at no load |
| Operating Speed (6.0V) | 0.12sec/60° at no load |
| Stall Torque (4.8V) | 0.8kg.cm |
| Stall Torque (6.0V) | 1.0kg.cm |
| Operating Angle | 45deg.one side pulse traveling 500 usec |
| Direction | Anticlockwise/Pulse Traveling 1000~2000usec |
| Current Drain (4.8V) | 10mA/idle and 120mA no load operating |
| Current Drain (6.0V) | 10mA/idle and 140mA no load operating |
| Stall Current | 0.39A/0.46A |
| Dead Band Width | 5usec |
| Motor Type | Coreless motor |
| Horn gear spline | 24T |
| Gear Type | Plastic |
| Connector Wire Length | 180mm |
| Wire info | Brown/Black = Negative |
| Red = Positive | |
| Orange/White = Signal | |
