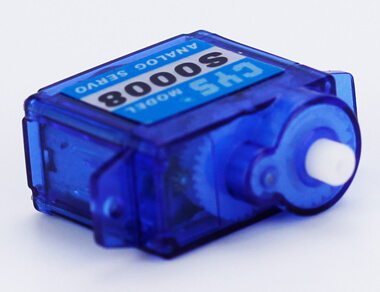

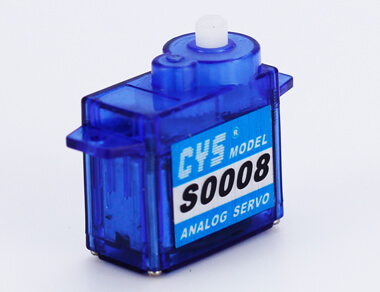

Item NO.: CYS-S0008 8g analog servo

Description : Plastic gear 8g analog servo for rc plane

Size : 22.8*11.6*23.6MM

Torque : 1.0Kg.cm ~ 1.2Kg.cm

Speed : 0.13sec ~ 0.11sec/60 degree

Voltage : 4.8Volts ~6.0Volts

Weight : 8 g

Application&Features

TypeAnalog
Weight8g
Size22.8*11.6*23.6mm
Control System(+)Pulse Width Control 1500usec Neutral
Operating Voltage4.8~6.0Volts
Operating Temperature Range(-)10 to +50 degree C
Operating Speed (4.8V)0.14sec/60° at no load
Operating Speed (6.0V)0.12sec/60° at no load
Stall Torque (4.8V)1.0kg.cm
Stall Torque (6.0V)1.1kg.cm
Operating Angle45deg.one side pulse traveling 500 usec
DirectionAnticlockwise/Pulse Traveling 1000~2000usec
Current Drain (4.8V)10mA/idle and 120mA no load operating
Current Drain (6.0V)10mA/idle and 140mA no load operating
Stall Current0.39A/0.46A
Dead Band Width5usec
Motor TypeCoreless motor
Horn gear spline24T
Gear TypePlastic
Connector Wire Length180mm
Wire infoBrown/Black = Negative
Red = Positive
Orange/White = Signal
