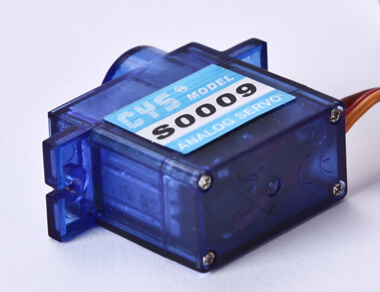

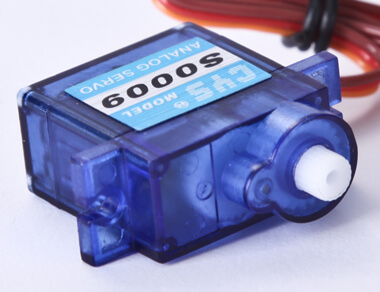

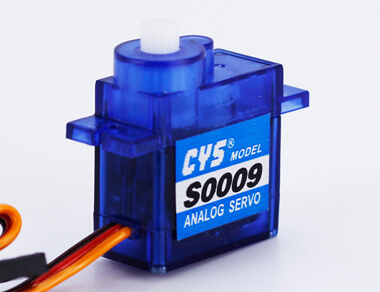

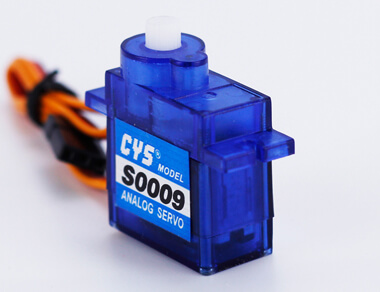

CYS-S0009 90°/180°/360° 9g robotic servo motor

/, RC Boat Servo, RC Car Servo, RC Helicopter Servo, Smart Robotic Servo/CYS-S0009 90°/180°/360° 9g robotic servo motor
CYS-S0009 90°/180°/360° 9g robotic servo motor2019-08-02T08:57:14+00:00

Project Description

Item NO.: CYS-S0009 9g servo motor

Description : 9g analog plastic gear servo motor

Torque : 1.2Kg.cm ~ 1.5Kg.cm

Speed : 0.12sec ~ 0.10sec/60 degree

Voltage : 4.8 Volts ~6.0Volts

Weight :9± 1g

Datasheet download

Application&Features

TypeAnalog
Weight9g
Size22.3*11.8*26.3mm
Control System(+)Pulse Width Control 1500usec Neutral
Operating Voltage4.8~6.0Volts
Operating Temperature Range(-)10 to +50 degree C
Operating Speed (4.8V)0.12sec/60° at no load
Operating Speed (6.0V)0.10sec/60° at no load
Stall Torque (4.8V)1.2kg.cm
Stall Torque (6.0V)1.5kg.cm
Operating Angle45deg.one side pulse traveling 500 usec
DirectionAnticlockwise/Pulse Traveling 1000~2000usec
Current Drain (4.8V)10mA/idle and 260mA no load operating
Current Drain (6.0V)10mA/idle and 300mA no load operating
Stall Current0.8A/0.9A
Dead Band Width4usec
Motor TypeIron core
Horn gear spline21T
Gear TypePlastic
Connector Wire Length180mm
Wire infoBrown/Black = Negative
Red = Positive
Orange/White = Signal
