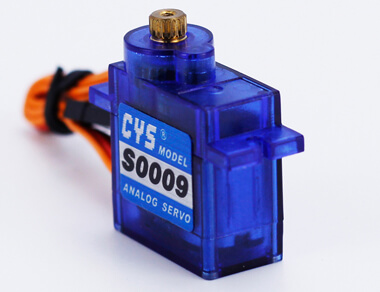

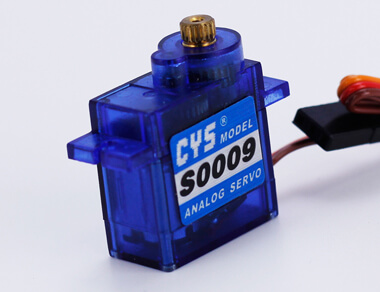

CYS-S0009MG 9g 180degree rotation servo motor

CYS-S0009MG 9g 180degree rotation servo motor2019-08-02T08:56:36+00:00

Project Description

Item NO.: CYS-S0009MG  9g servo motor

Description : 9g analog metal gear servo 180°/360° rotation servo

Torque : 1.2Kg.cm ~ 1.5Kg.cm

Speed : 0.12sec ~ 0.10sec/60 degree

Voltage : 4.8 Volts ~6.0Volts

Weight :9± 1g

Datasheet download

Application&Features

TypeAnalog
Weight10g
Size22.3*11.8*26.3mm
Control System(+)Pulse Width Control 1500usec Neutral
Operating Voltage4.8~6.0Volts
Operating Temperature Range(-)10 to +50 degree C
Operating Speed (4.8V)0.12sec/60° at no load
Operating Speed (6.0V)0.10sec/60° at no load
Stall Torque (4.8V)1.2kg.cm
Stall Torque (6.0V)1.5kg.cm
Operating Angle45deg.one side pulse traveling 500 usec
DirectionAnticlockwise/Pulse Traveling 1000~2000usec
Current Drain (4.8V)10mA/idle and 100mA no load operating
Current Drain (6.0V)10mA/idle and 120mA no load operating
Stall Current0.9A/1A
Dead Band Width4usec
Motor TypeIron core
Horn gear spline21T
Gear TypeMetal
Connector Wire Length180mm
Wire infoBrown/Black = Negative
Red = Positive
Orange/White = Signal
