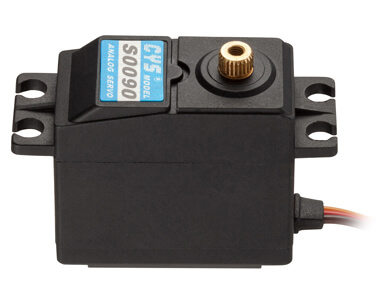

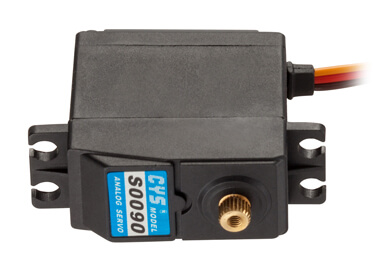

CYS-S00090 9Kg Analog servo with metal gear

/, RC Boat Servo, RC Car Servo, Smart Robotic Servo/CYS-S00090 9Kg Analog servo with metal gear
CYS-S00090 9Kg Analog servo with metal gear2019-08-02T08:50:47+00:00

Project Description

Item NO.: CYS-S0090 9Kg standard size servo

Description : 9Kg servo motor for rc car-rc boat-rc plane

Size : 40.5*20*38MM

Torque : 9.0Kg.cm ~ 10Kg.cm

Speed : 0.14sec ~ 0.12sec/60 degree

Voltage : 6.0Volts ~7.4Volts

Weight : 58± 1g

Datasheet download

Application&Features

TypeAnalog
Weight58g± 1g
Size40.8*20.1*38mm
Control System(+)Pulse Width Control 1500usec Neutral
Operating Voltage6.0~7.4Volts
Operating Temperature Range(-)10 to +50 degree C
Operating Speed (6.0V)0.14sec/60° at no load
Operating Speed (7.4V)0.12sec/60° at no load
Stall Torque (6.0V)9kg.cm
Stall Torque (7.4V)10kg.cm
Operating Angle45deg.one side pulse traveling 500 usec
DirectionAnticlockwise/Pulse Traveling 1000~2000usec
Current Drain (6.0V)20mA/idle and 200mA no load operating
Current Drain (7.4V)20mA/idle and 300mA no load operating
Stall Current2.3A/2.5A
Dead Band Width4usec
Motor TypeIron core
Bearing Typeball bearing
Horn gear spline25T
Gear TypeMetal
Connector Wire Length300mm± 5mm
Wire infoBrown/Black = Negative
Red = Positive
Orange/White = Signal
