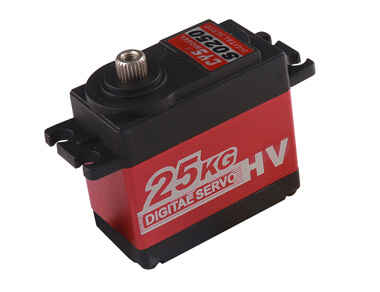

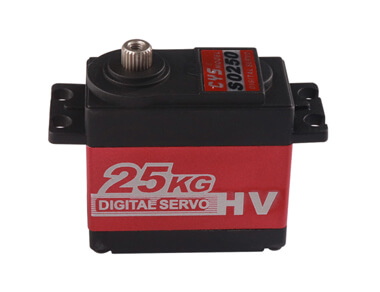

CYS-S0250 25Kg digital waterproof servo

/, RC Airplane Servo, RC Car Servo/CYS-S0250 25Kg digital waterproof servo
CYS-S0250 25Kg digital waterproof servo2019-08-02T07:08:46+00:00

Project Description

Item NO.: CYS-S0250 Digital servo

Description : 25Kg Digital waterproof servo for 1/10 scale rc car

Size : 40.5*20*38MM

Torque : 22Kg.cm ~ 25Kg.cm

Speed : 0.14sec ~ 0.12sec/60 degree

Voltage : 6.0Volts ~7.4Volts

Weight : 62± 1 g

Datasheet download

Application&Features

TypeDigital
Weight62g ± 1g
Size40.5*20*38mm
Control System(+)Pulse Width Control 1500usec Neutral
Operating Voltage6.0~7.4Volts
Operating Temperature Range(-)10 to +50 degree C
Operating Speed (6.0V)0.14sec/60° at no load
Operating Speed (7.4V)0.12sec/60° at no load
Stall Torque (6.0V)22kg.cm
Stall Torque (7.4V)25kg.cm
Operating Angle45deg.one side pulse traveling 500 usec
DirectionAnticlockwise/Pulse Traveling 1000~2000usec
Current Drain (6.0V)20mA/idle and 100mA no load operating
Current Drain (7.4V)20mA/idle and 150mA no load operating
Stall Current2.5A/2.8A
Dead Band Width4usec
Motor TypeNdFeB
Bearing TypeDual ball bearing
Horn gear spline25T
Gear TypeMetal
Connector Wire Length300mm±5mm
Wire infoBrown/Black = Negative
Red = Positive
Orange/White = Signal
