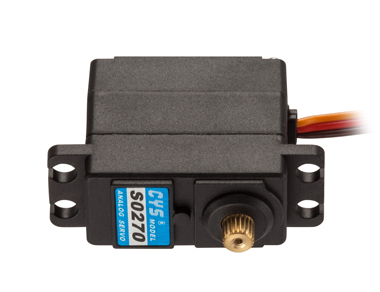

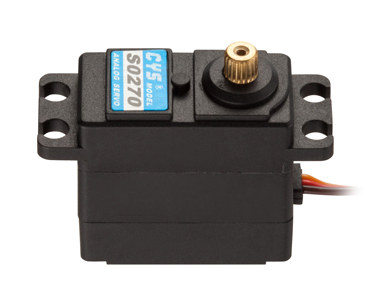

Item NO.: CYS-S0270

Description : 27g Analog Servo for 1/16 RC car

Size : 31.2*16.3*29.5MM

Torque : 3.0Kg.cm ~ 3.5Kg.cm

Speed : 0.13sec ~ 0.11sec/60 degree

Voltage : 6.0Volts ~7.4Volts

Weight : 27± 1 g

Datasheet download

Application&Features

TypeAnalog
Weight27g
Size31.2*16.3*29.5mm
Control System(+)Pulse Width Control 1500usec Neutral
Operating Voltage4.8~6.0Volts
Operating Temperature Range(-)10 to +50 degree C
Operating Speed (6.0V)0.14sec/60° at no load
Operating Speed (7.4V)0.12sec/60° at no load
Stall Torque (6.0V)3.0kg.cm
Stall Torque (7.4V)3.5kg.cm
Operating Angle45deg.one side pulse traveling 500 usec
360 ModifiableNo
DirectionAnticlockwise/Pulse Traveling 1000~2000usec
Current Drain (6.0V)20mA/idle and 120mA no load operating
Current Drain (7.4V)20mA/idle and 150mA no load operating
Stall Current1.1A/1.3A
Dead Band Width4usec
Motor TypeIron core
Bearing Typesingle ball bearing
Horn gear spline25T
Gear TypeMetal
Connector Wire Length300mm
Wire infoBrown/Black = Negative
Red = Positive
Orange/White = Signal
drawing of S0270
