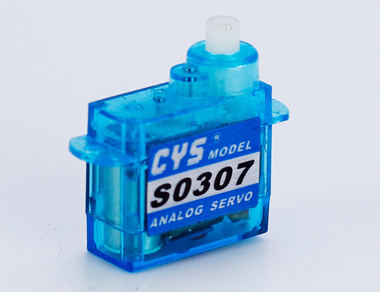

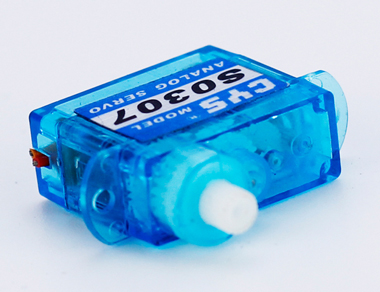

Item NO.: CYS-S0307 3.7g servo motor
Description : 3g mini servo for 3D plane and micro plane
Size : 19.8*8.4*21.3MM
Torque : 0.5 Kg.cm ~ 0.9Kg.cm
Speed : 0.13sec ~ 0.11sec/60°
Voltage : 4.8 Volts ~ 6.0 Volts
Weight : 3.7g
Application&Features
| Type | Analog servo |
|---|---|
| Weight | 3.7g |
| Size | 19.8*8.4*21.3mm |
| Control System | (+)Pulse Width Control 1500usec Neutral |
| Operating Voltage | 4.2~4.8Volts |
| Operating Temperature Range | (-)10 to +50 degree C |
| Operating Speed (4.8V) | 0.14sec/60° at no load |
| Operating Speed (6.0V) | 0.12sec/60° at no load |
| Stall Torque (4.8V) | 0.5kg.cm |
| Stall Torque (6.0V) | 0.8kg.cm |
| Operating Angle | 45deg.one side pulse traveling 500 usec |
| Direction | Anticlockwise/Pulse Traveling 1000~2000usec |
| Current Drain (4.8V) | 10mA/idle and 100mA no load operating |
| Current Drain (6.0V) | 10mA/idle and 120mA no load operating |
| Stall Current | 0.5A/0.54A |
| Dead Band Width | 4usec |
| Motor Type | Coreless motor |
| Horn gear spline | 24T |
| Gear Type | Plastic |
| Connector Wire Length | 180mm |
| Wire info | Brown/Black = Negative |
| Red = Positive | |
| Orange/White = Signal | |
