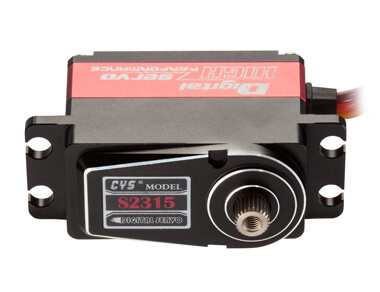

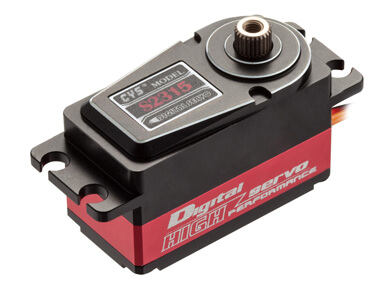

CYS-S2315 Low-profile digital drifted RC car servo

//CYS-S2315 Low-profile digital drifted RC car servo
CYS-S2315 Low-profile digital drifted RC car servo2019-08-02T07:11:09+00:00

Project Description

Item NO.: CYS-S2315 Low profile digital servo

Description : Drifted servo motor for 1/10 RC car with coreless motor

Size : 40*20*25.2MM

Torque : 4.0Kg.cm ~ 5.0Kg.cm

Speed : 0.06sec ~ 0.05sec/60 degree

Voltage : 6.0Volts ~7.4Volts

Weight : 54± 1 g

Datasheet download

Application&Features

TypeDigital
Weight52g±1g
Size40.6*20*25.2mm
Control System(+)Pulse Width Control 1500usec Neutral
Operating Voltage6.0~7.4Volts
Operating Temperature Range(-)10 to +50 degree C
Operating Speed (6.0V)0.06sec/60° at no load
Operating Speed (7.4V)0.05sec/60° at no load
Stall Torque (6.0V)3.5kg.cm
Stall Torque (7.4V)4.5kg.cm
Operating Angle45deg.one side pulse traveling 500 usec
360 ModifiableNo
DirectionAnticlockwise/Pulse Traveling 1000~2000usec
Current Drain (6.0V)30mA/idle and 100mA no load operating
Current Drain (7.4V)30mA/idle and 120mA no load operating
Stall Current2.5A/2.8A
Dead Band Width2usec
Motor TypeCoreless motor
Bearing TypeDual Ball Bearing
Horn gear spline25T
Gear TypeTitanize & metal
Connector Wire Length180mm±5mm
Wire infoBrown/Black = Negative
Red = Positive
Orange/White = Signal
