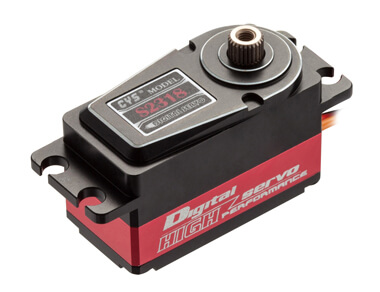

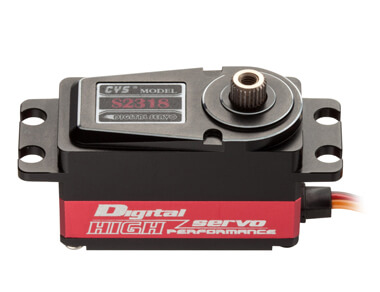

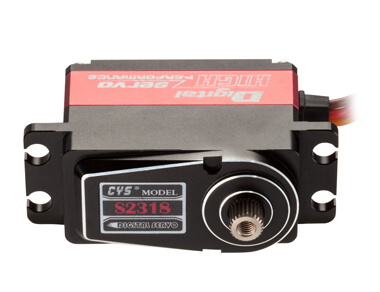

CYS-S2318 Drifted digital servo for RC car

//CYS-S2318 Drifted digital servo for RC car
CYS-S2318 Drifted digital servo for RC car2019-08-02T07:10:57+00:00

Project Description

Item NO.: CYS-S2318  with full aluminum case

Description :  Digital drifted  servo for 1/10 scale RC car with coreless motor

Size : 40*20*25.2MM

Torque : 6.5Kg.cm ~ 8.5Kg.cm

Speed : 0.07sec ~ 0.06sec/60 degree

Voltage : 6.0Volts ~7.4Volts

Weight : 54± 1 g

Datasheet download

Application&Features

TypeDigital
Weight52g±1g
Size40.6*20*25.7mm
Control System(+)Pulse Width Control 1500usec Neutral
Operating Voltage6.0~7.4Volts
Operating Temperature Range(-)10 to +50 degree C
Operating Speed (6.0V)0.07sec/60° at no load
Operating Speed (7.4V)0.06sec/60° at no load
Stall Torque (6.0V)6.5kg.cm
Stall Torque (7.4V)8.0kg.cm
Operating Angle45deg.one side pulse traveling 500 usec
360 ModifiableNo
DirectionAnticlockwise/Pulse Traveling 1000~2000usec
Current Drain (6.0V)30mA/idle and 120mA no load operating
Current Drain (7.4V)30mA/idle and 150mA no load operating
Stall Current2.5A/3.0A
Dead Band Width2usec
Motor TypeCoreless motor
Bearing TypeDual Ball Bearing
Horn gear spline25T
Gear TypeTitanize & metal
Connector Wire Length180mm±5mm
Wire infoBrown/Black = Negative
Red = Positive
Orange/White = Signal
