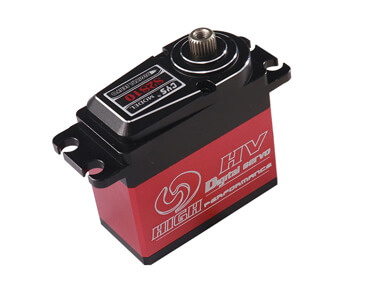

CYS-S2810 10Kg standard size digital servo

/, RC Boat Servo, RC Car Servo/CYS-S2810 10Kg standard size digital servo
CYS-S2810 10Kg standard size digital servo2019-08-02T07:36:09+00:00

Project Description

Item NO.: CYS-S2810 10Kg standard size digital servo

Description :  RC car servo with 10Kg – coreless motor

Size : 40*20*41.4MM

Torque : 9.0Kg.cm ~10Kg.cm

Speed : 0.12sec ~ 0.10sec/60 degree

Voltage : 6.0Volts ~7.4Volts

Weight : 71± 1 g

Datasheet download

Application&Features

TypeDigital
Weight82g±1g
Size40*20*41.4mm
Control System(+)Pulse Width Control 1500usec Neutral
Operating Voltage6.0~7.4Volts
Operating Temperature Range(-)10 to +50 degree C
Operating Speed (6.0V)0.12sec/60° at no load
Operating Speed (7.4V)0.10sec/60° at no load
Stall Torque (6.0V)9kg.cm
Stall Torque (7.4V)10kg.cm
Operating Angle45deg.one side pulse traveling 500 usec
360 ModifiableNo
DirectionAnticlockwise/Pulse Traveling 1000~2000usec
Current Drain (6.0V)20mA/idle and 120mA no load operating
Current Drain (7.4V)20mA/idle and 150mA no load operating
Stall Current2.5A/2.8A
Dead Band Width2usec
Motor TypeCoreless motor
Bearing Typeball bearing
Horn gear spline25T
Gear TypeTitanize
Connector Wire Length300mm±5mm
Wire infoBrown/Black = Negative
Red = Positive
Orange/White = Signal
