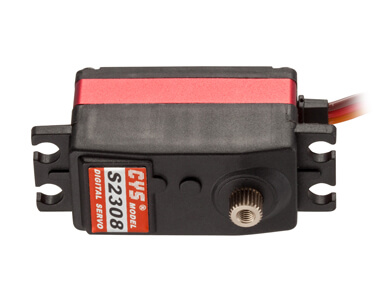

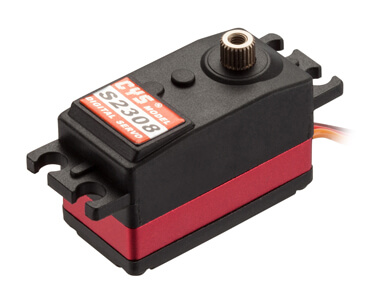

Item NO.: CYS-S2308 Low profile digital servo

Description : 8Kg  drifted servo motor for 1/10 RC car

Size : 40*20*25.2MM

Torque : 6.5Kg.cm ~ 8.0Kg.cm

Speed : 0.07sec ~ 0.06sec/60 degree

Voltage : 6.0Volts ~7.4Volts

Weight : 43± 1 g

Application&Features

Weight45g±1g
Size40.9*20*25.2mm
Control System(+)Pulse Width Control 1500usec Neutral
Operating Voltage6.0~7.4Volts
Operating Temperature Range(-)10 to +50 degree C
Operating Speed (6.0V)0.08sec/60° at no load
Operating Speed (7.4V)0.06sec/60° at no load
Stall Torque (6.0V)7.5kg.cm
Stall Torque (7.4V)9.0kg.cm
Operating Angle45deg.one side pulse traveling 500 usec
360 ModifiableNo
DirectionAnticlockwise/Pulse Traveling 1000~2000usec
Current Drain (6.0V)10mA/idle and 120mA no load operating
Current Drain (7.4V)10mA/idle and 150mA no load operating
Stall Current2.5A/2.8A
Dead Band Width2usec
Motor TypeCoreless motor
Bearing TypeDual Ball Bearing
Horn gear spline25T
Gear TypeTitanize & metal
Connector Wire Length180mm±5mm
Wire infoBrown/Black = Negative
Red = Positive
Orange/White = Signal
