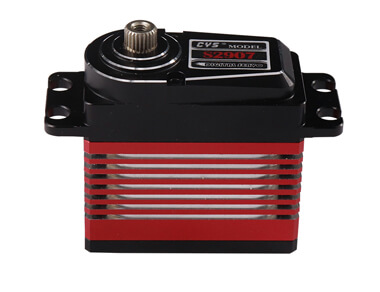

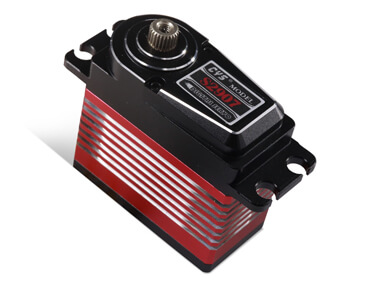

CYS-S2907 7Kg digital tail servo for 700 helicopter

/, RC Helicopter Servo/CYS-S2907 7Kg digital tail servo for 700 helicopter
CYS-S2907 7Kg digital tail servo for 700 helicopter2019-08-02T07:34:40+00:00

Project Description

Item NO.: CYS-S2907

Description : 7Kg coreless motor digital servo for RC helicopter

Size :40*20*39MM

Torque : 6.0Kg.cm ~ 7.0Kg.cm

Speed : 0.08sec ~ 0.06sec/60 degree

Voltage : 6.0Volts ~7.4Volts

Weight : 68±1 g

Datasheet download

Application&Features

TypeDigital
Weight72g±1g
Size40*20*39.35mm
Control System(+)Pulse Width Control 1500usec Neutral
Operating Voltage6.0~7.4Volts
Operating Temperature Range(-)10 to +50 degree C
Operating Speed (6.0V)0.08sec/60° at no load
Operating Speed (7.4V)0.06sec/60° at no load
Stall Torque (6.0V)6.0kg.cm
Stall Torque (7.4V)7.0kg.cm
Operating Angle45deg.one side pulse traveling 500 usec
DirectionAnticlockwise/Pulse Traveling 1000~2000usec
Current Drain (6.0V)20mA/idle and 80mA no load operating
Current Drain (7.4V)20mA/idle and 100mA no load operating
Stall Current2.6A/3.1A
Dead Band Width2usec
Motor TypeCoreless motor
Bearing Typeball bearing
Horn gear spline25T
Gear TypeTitanize
Connector Wire Length300mm±5mm
Wire infoBrown/Black = Negative
Red = Positive
Orange/White = Signal
