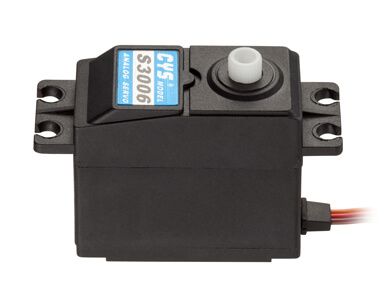

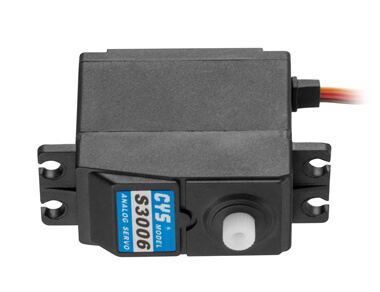

CYS-S3006 6Kg Analog plastic gear servo standard size

/, RC Boat Servo, RC Car Servo/CYS-S3006 6Kg Analog plastic gear servo standard size
CYS-S3006 6Kg Analog plastic gear servo standard size2019-08-02T08:54:24+00:00

Project Description

Item NO.: CYS-S3006 6Kg plastic gear servo

Description : 6Kg plastic gear serov for rc boat, rc car

Size : 40.5*20*38MM

Torque : 5.5Kg.cm ~ 6.0Kg.cm

Speed : 0.13sec ~ 0.11sec/60 degree

Voltage : 6.0Volts ~7.4Volts

Weight : 40± 1 g

Datasheet download

Application&Features

TypeAnalog (digital is optional if required)
Weight40± 1 g /1.41oz
Size40*20*38.5mm
Control System(+)Pulse Width Control 1500usec Neutral
Operating Voltage6.0~7.4Volts
Operating Temperature Range(-)10 to +50 degree C
Operating Speed (6.0V)0.14sec/60° at no load
Operating Speed (7.4V)0.12sec/60° at no load
Stall Torque (6.0V)5.5kg.cm
Stall Torque (7.4V)6.0kg.cm
Operating Angle45deg.one side pulse traveling 500 usec
DirectionAnticlockwise/Pulse Traveling 1000~2000usec
Current Drain (6.0V)20mA/idle and 200mA no load operating
Current Drain (7.4V)20mA/idle and 300mA no load operating
Stall Current1.5A/1.8A
Dead Band Width4usec
Motor TypeIron Motor
Bearing TypeDual Ball Bearing*2
Horn gear spline25T
Gear TypePlastic
Connector Wire Length300mm±5mm
Wire infoBrown/Black = Negative
Red = Positive
Orange/White = Signal
