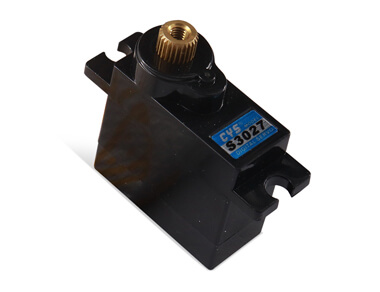

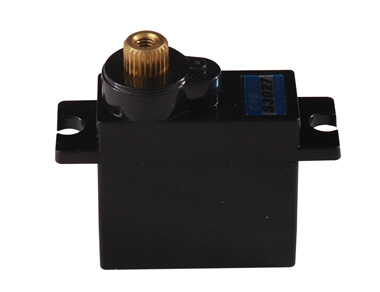

Item NO.: CYS-S3027
Description : 17g metal gear servo S3001 servo for aircraft
Size : 29*13.5*30MM
Torque : 2.5Kg.cm ~ 3.0Kg.cm
Speed : 0.12sec ~ 0.10sec/60 degree
Voltage : 4.8Volts ~6.0Volts
Weight : 20± 1 g
Application&Features
| Item No. | CYS-S3027 |
|---|---|
| Type | Digital |
| Weight | 20g |
| Size | 29*13.5*30mm |
| Control System | (+)Pulse Width Control 1500usec Neutral |
| Operating Voltage | 4.8-6.0V |
| Operating Temperature Range | (-)14 to +50 ° |
| Operating Speed (4.8V) | 0.12sec/60° |
| Operating Speed (6.0V) | 0.10sec/60° |
| Stall Torque (4.8V) | 2.5kg.cm |
| Stall Torque (6.0VV) | 3.0kg.cm |
| Operating Angle | 45deg.one side pulse traveling 500 usec |
| Direction | Anticlockwise/Pulse Traveling 1000~2000usec |
| Current Drain (4.8V) | 20mA/ 120mA |
| Current Drain (6.0VV) | 20mA/ 150mA |
| Stall Current | 1.1A/1.3A |
| Dead Band Width | 4usec |
| Motor Type | Iron core |
| Bearing Type | Single bearing |
| Horn gear spline | 25T |
| Gear Type | Metal |
| Connector Wire Length | 180mm |
| Wire info | Brown/Black = Negative |
| Red = Positive | |
| Orange/White = Signal |
