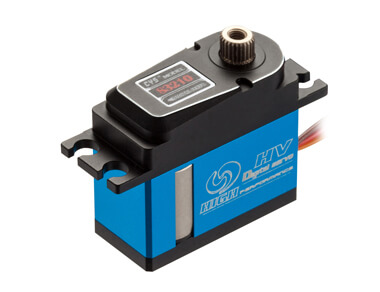

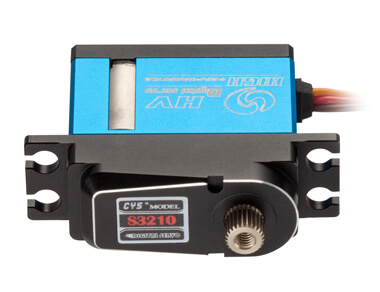

CYS-S3210 Digital servo with high speed for rc models

/, RC Car Servo, RC Helicopter Servo/CYS-S3210 Digital servo with high speed for rc models
CYS-S3210 Digital servo with high speed for rc models2019-08-02T07:14:10+00:00

Project Description

Item NO.: CYS-BLS3210  digital servo with coreless motor

Description :  High speed servo motor for rc helicopter -rc models

Size :35*15*29.5MM

Torque : 4.0Kg.cm ~ 5.0Kg.cm

Speed : 0.05sec ~ 0.04sec/60 degree

Voltage : 6.0Volts ~7.4Volts

Weight : 43± 1 g

Datasheet download

Application&Features

TypeDigital
Weight45g
Size35*15*32.8mm
Control System(+)Pulse Width Control 1500usec Neutral
Operating Voltage6.0~7.4Volts
Operating Temperature Range(-)10 to +50 degree C
Operating Speed (6.0V)0.05sec/60° at no load
Operating Speed (7.4V)0.04sec/60° at no load
Stall Torque (6.0V)4kg.cm
Stall Torque (7.4V)5kg.cm
Operating Angle45deg.one side pulse traveling 500 usec
DirectionAnticlockwise/Pulse Traveling 1000~2000usec
Current Drain (6.0V)20mA/idle and 80mA no load operating
Current Drain (7.4V)20mA/idle and 100mA no load operating
Stall Current2.5A/3.2A
Dead Band Width2usec
Motor TypeCoreless motor
Bearing Typeball bearing
Horn gear spline25T
Gear TypeMetal
Connector Wire Length300mm
Wire infoBrown/Black = Negative
Red = Positive
Orange/White = Signal
