Project Description

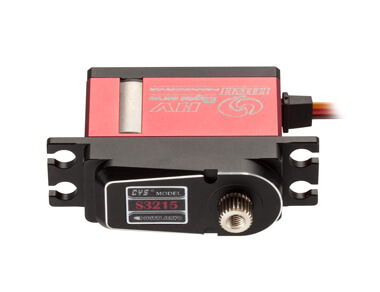

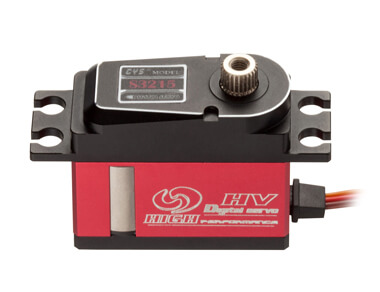

Item NO.: CYS-S3215 Digital servo with coreless motor

Description : 8Kg digital servo for rc helicotper- rc car- rc plane

Size : 35*15*29.5MM

Torque : 7.0Kg.cm ~ 8.0Kg.cm

Speed : 0.07sec ~ 0.06sec/60 degree

Voltage : 6.0Volts ~7.4Volts

Weight : 43± 1 g

Datasheet download

Application&Features

TypeDigital
Weight45g
Size35*15*32.8mm
Control System(+)Pulse Width Control 1500usec Neutral
Operating Voltage6.0~7.4Volts
Operating Temperature Range(-)10 to +50 degree C
Operating Speed (6.0V)0.067sec/60° at no load
Operating Speed (7.4V)0.055sec/60° at no load
Stall Torque (6.0V)7kg.cm
Stall Torque (7.4V)8kg.cm
Operating Angle45deg.one side pulse traveling 500 usec
DirectionAnticlockwise/Pulse Traveling 1000~2000usec
Current Drain (6.0V)20mA/idle and 80mA no load operating
Current Drain (7.4V)20mA/idle and 100mA no load operating
Stall Current2.6A/3.2A
Dead Band Width2usec
Motor TypeCoreless motor
Bearing Typeball bearing
Horn gear spline25T
Gear TypeMetal
Connector Wire Length300mm
Wire infoBrown/Black = Negative
Red = Positive
Orange/White = Signal
