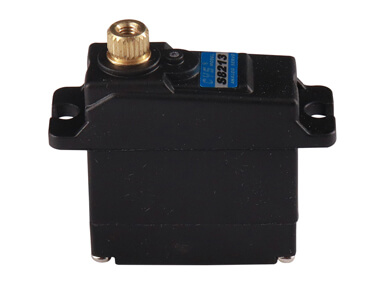

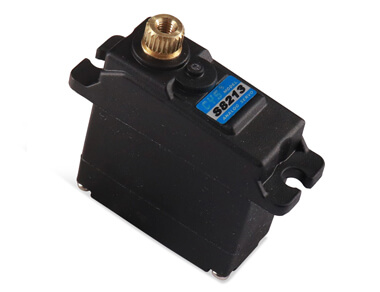

Item NO.: CYS-S8213 20g servo motor

Description :  Robotics servo motor – servo motor for aircraft

Size : 29*13.5*30.4MM

Torque : 2.8Kg.cm ~ 3.0Kg.cm

Speed : 0.18sec ~ 0.16sec/60 degree

Voltage : 4.8Volts ~6.0Volts

Weight : 20± 1 g

Datasheet download

Application&Features


Specification Sheet
Item No.S8213
TypeAnalog
Weight20g
Size29*13.5*30.4mm
Control System(+)Pulse Width Control 1500usec Neutral
Operating Voltage4.8~6.0Volts
Operating Temperature Range(-)10 to +50 degree C
Operating Speed (6.0V)0.14sec/60° at no load
Operating Speed (7.4V)0.12sec/60° at no load
Stall Torque (6.0V)2.8kg.cm
Stall Torque (7.4V)3.0kg.cm
Operating Angle45deg.one side pulse traveling 500 usec
360 ModifiableNo
DirectionAnticlockwise/Pulse Traveling 1000~2000usec
Current Drain (6.0V)20mA/idle and 120mA no load operating
Current Drain (7.4V)20mA/idle and 150mA no load operating
Stall Current1A/1.3A
Dead Band Width4usec
Motor TypeIron core
Bearing Typeball bearing
Horn gear spline25T
Gear TypeMetal
Connector Wire Length300mm
Wire infoBrown/Black = Negative
Red = Positive
Orange/White = Signal
