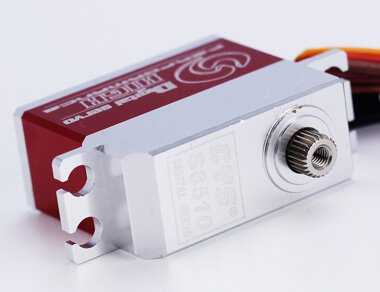

CYS-S8510 Digital servo with high speed

/, RC Helicopter Servo/CYS-S8510 Digital servo with high speed
CYS-S8510 Digital servo with high speed2019-08-02T08:15:46+00:00

Project Description

Item NO.: CYS-S8510 High speed servo

Description : Digital servo with coreless motor for rc plane

Size : 35*15*30MM

Torque : 4.0Kg.cm ~ 3.5Kg.cm

Speed : 0.05sec ~ 0.04sec/60 degree

Voltage : 6.0Volts ~7.4Volts

Weight : 36± 1 g

Datasheet download

Application&Features

TypeDigital
Weight36g
Size35*15*30.2mm
Control System(+)Pulse Width Control 1500usec Neutral
Operating Voltage4.8~6.0Volts
Operating Temperature Range(-)10 to +50 degree C
Operating Speed (6.0V)0.10sec/60° at no load
Operating Speed (7.4V)0.08sec/60° at no load
Stall Torque (6.0V)2.0kg.cm
Stall Torque (7.4V)2.5kg.cm
Operating Angle45deg.one side pulse traveling 500 usec
DirectionAnticlockwise/Pulse Traveling 1000~2000usec
Current Drain (6.0V)20mA/idle and 100mA no load operating
Current Drain (7.4V)20mA/idle and 120mA no load operating
Stall Current1.4A/1.7A
Dead Band Width2usec
Motor TypeCoreless motor
Bearing Typeball bearing
Horn gear spline25T
Gear TypeMetal
Connector Wire Length250mm
Wire infoBrown/Black = Negative
Red = Positive
Orange/White = Signal
