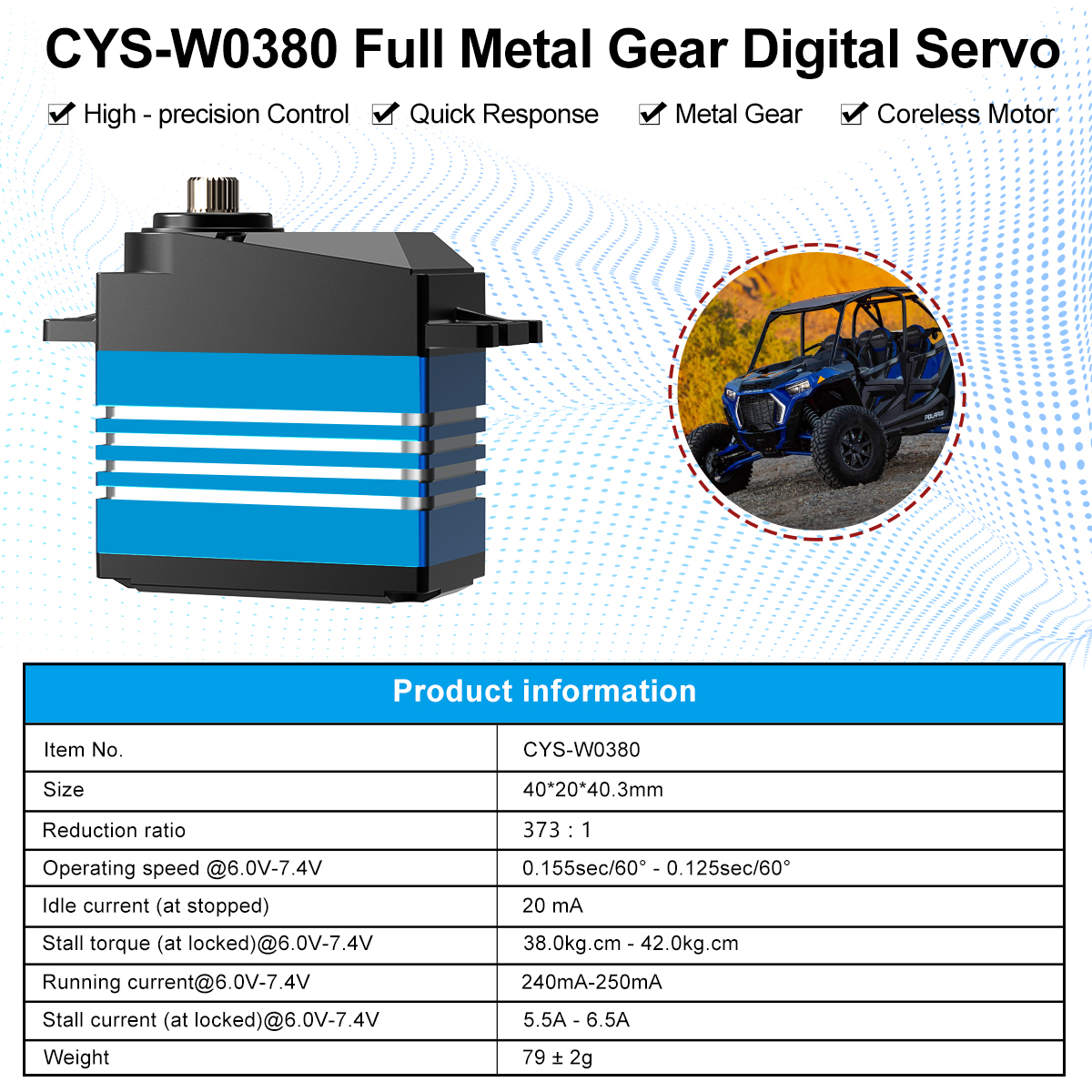

Item NO.: CYS-W0380

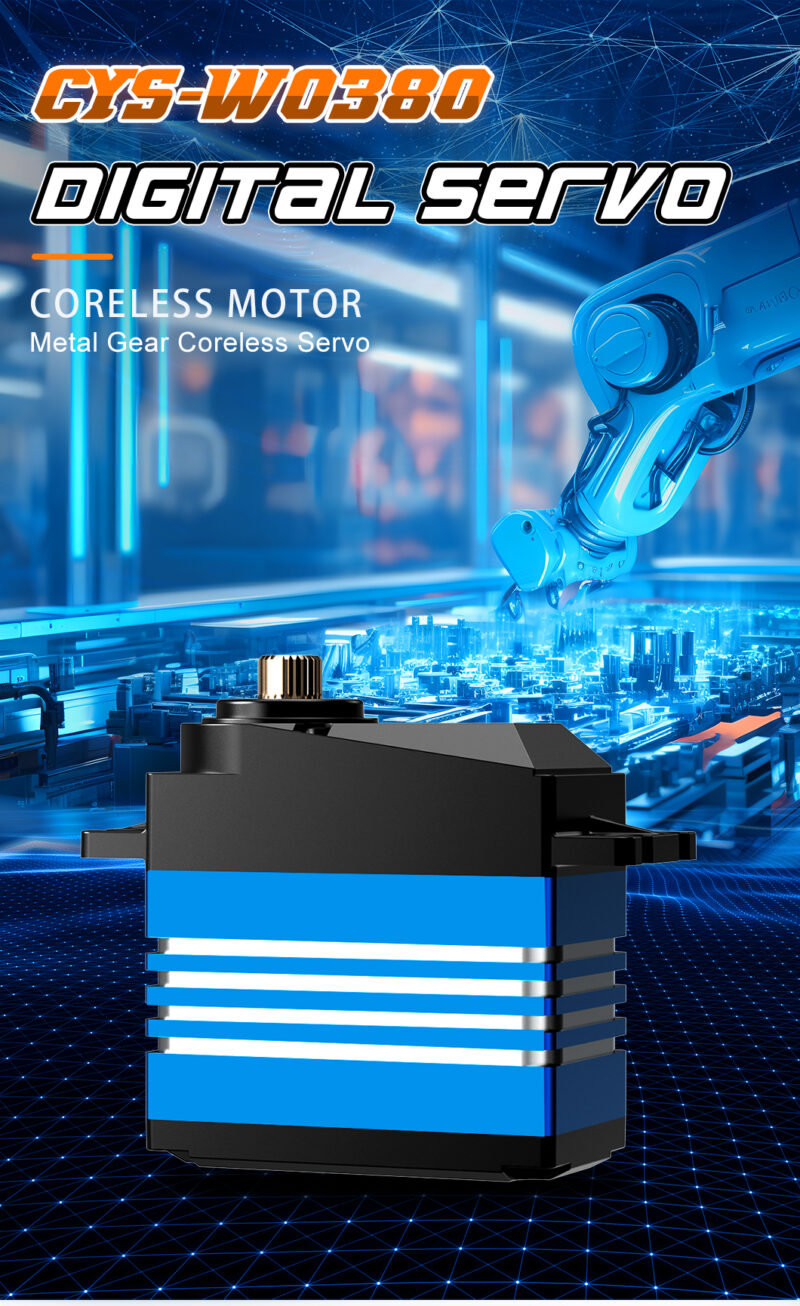

Description : 42kg High-Torque Metal-Gear Coreless Digital Servo (Premium Hot Seller) for 1/8 & 1/10 Scale RC Cars

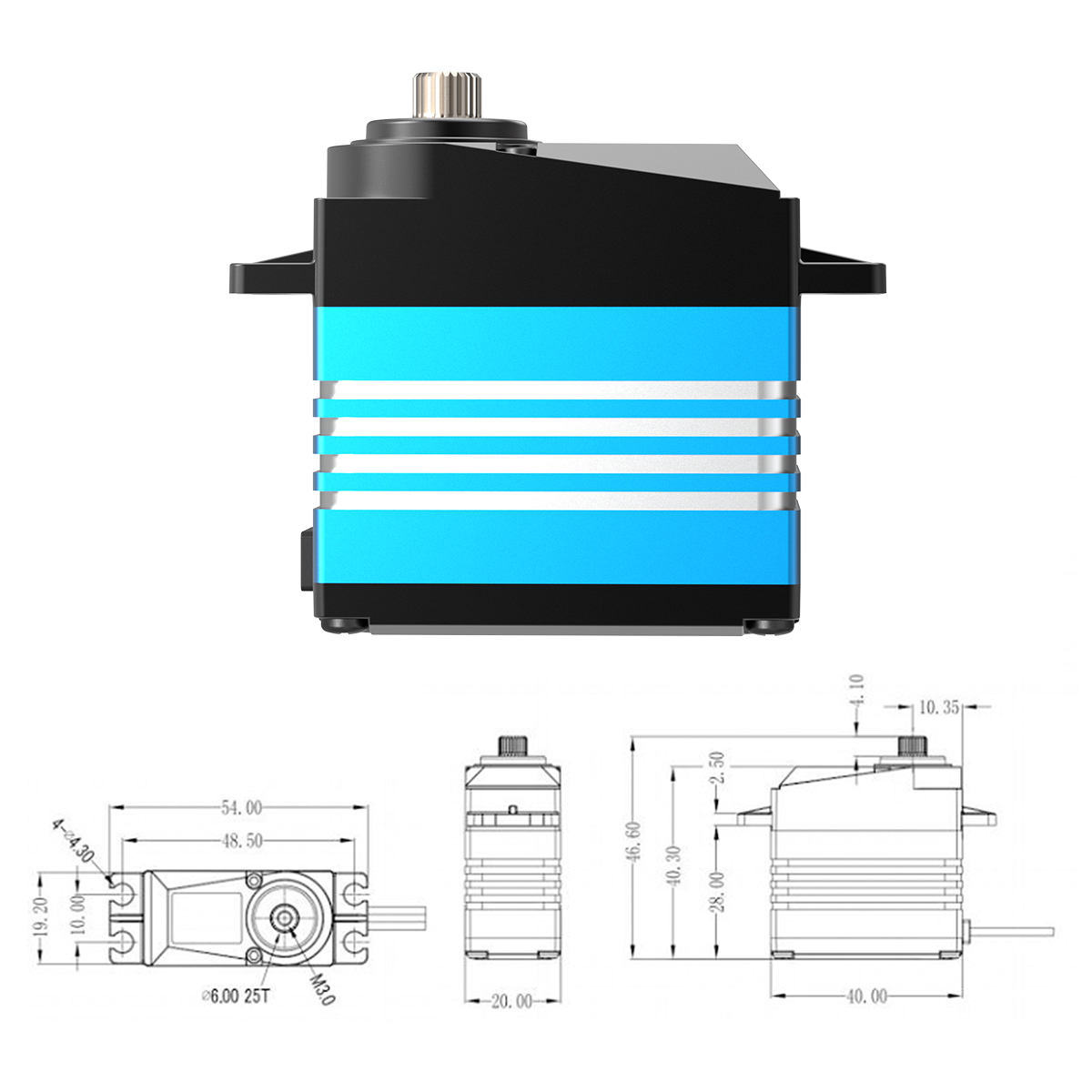

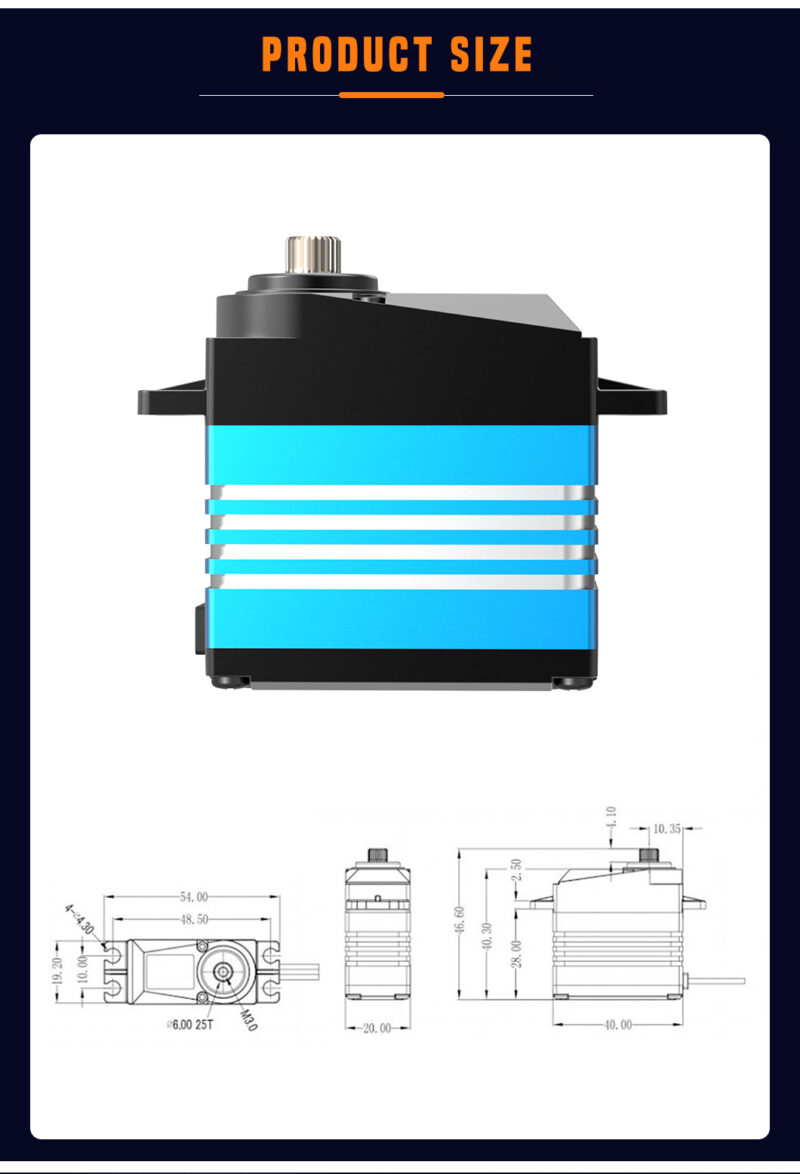

Size : 40*20*40.3mm
Torque :38Kg.cm ~42Kg.cm
Speed : 0.155sec ~ 0.125sec/60 degree
Voltage : 6.0Volts ~8.4Volts
Weight : 79±1g

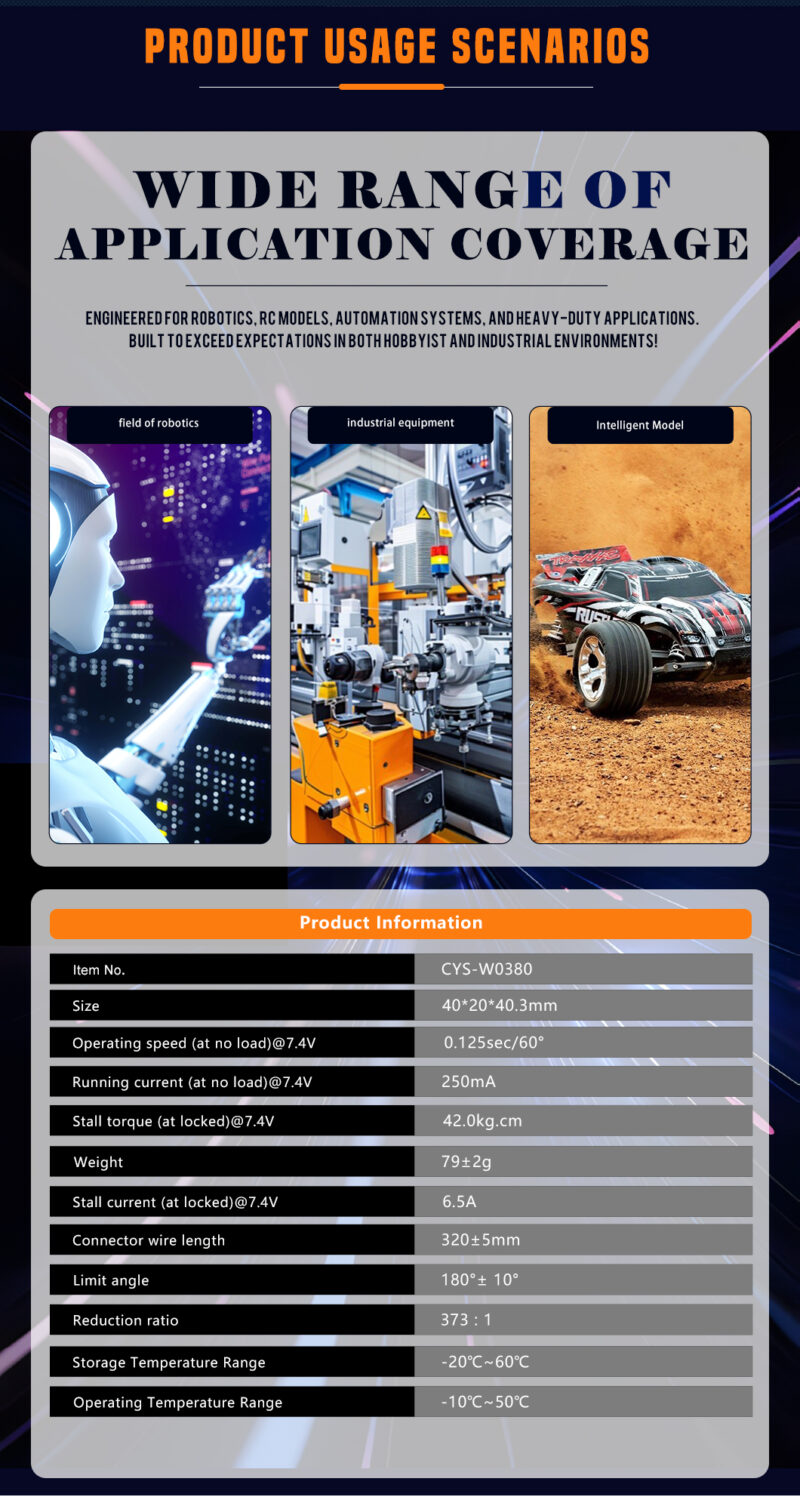

| Item No. | CYS-W0380 |
| Size | 40*20*40.3mm |
| Weight | 79±2g |

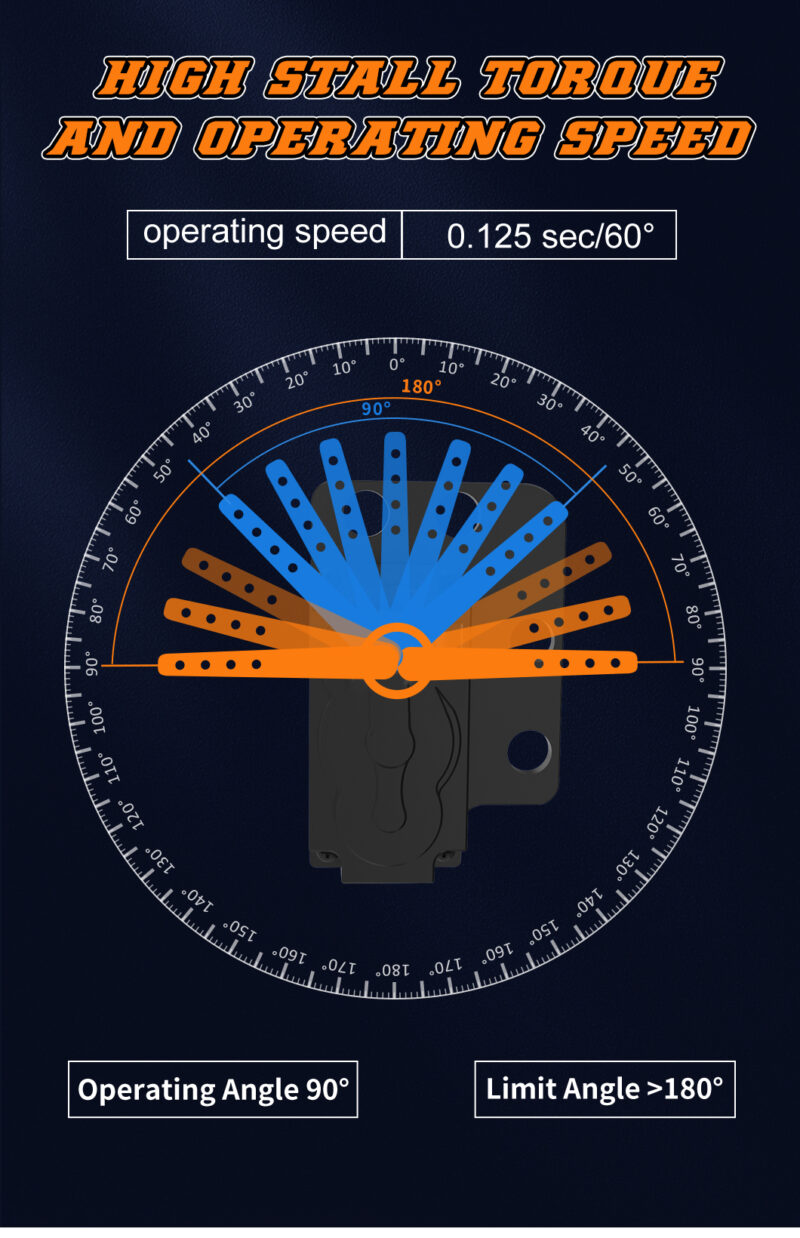

| Operating speed (at no load)@6.0V | 0.155sec/60° |
| Operating speed (at no load)@7.4V | 0.125sec/60° |
| Stall torque @6.0V | 38kg.cm |
| Stall torque @7.4V | 42kg.cm |
| Running current @6.0V | 240mA |
| Running current @7.4V | 250mA |
| Stall current @6.0V | 5.5A |
| Stall current @7.4V | 6.5A |
| Idle Current | 20mA |
| Connector wire length | 320±5mm |
| Operating Voltage Range | 6.0V～8.4V |
