H-BLS-5818 Brushless servo for 700 classes helicopter

/, RC Helicopter Servo/H-BLS-5818 Brushless servo for 700 classes helicopter
H-BLS-5818 Brushless servo for 700 classes helicopter2019-08-10T08:30:54+00:00

Project Description

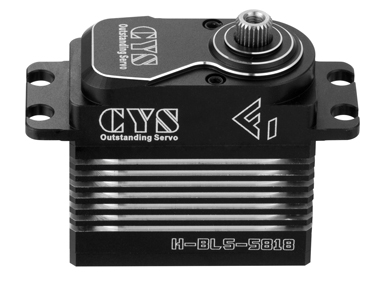

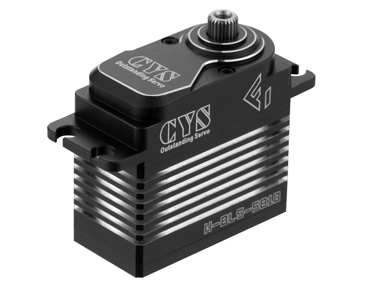

Item NO.: H-BLS-5818 Brushless Servo Motor for 700 Classes Helicopter

Description :  Brushless 12Kg Main Servo for 700 Classes Helicopter

Size : 40*20*39.35mm

Torque : 10Kg.cm ~ 12Kg.cm

Speed : 0.06sec ~ 0.05sec/60 degree

Voltage : 6.0Volts ~7.4Volts

Weight : 72± 1 g

Datasheet download

Application&Features

TypeDigital
Weight72g±1g
Size40*20*39.35mm
Control System(+)Pulse Width Control 1500usec Neutral
Operating Voltage6.0~7.4Volts
Operating Temperature Range(-)10 to +50 degree C
Operating Speed (6.0V)0.06sec/60° at no load
Operating Speed (7.4V)0.05sec/60° at no load
Stall Torque (6.0V)10kg.cm
Stall Torque (7.4V)12kg.cm
Operating Angle45deg.one side pulse traveling 500 usec
360 ModifiableNo
DirectionAnticlockwise/Pulse Traveling 1000~2000usec
Current Drain (6.0V)20mA/idle and 80mA no load operating
Current Drain (7.4V)20mA/idle and 100mA no load operating
Stall Current3.2A/4.0A
Dead Band Width3usec
Motor TypeBrushless motor
Bearing TypeDouble ball bearing
Horn gear spline25T
Gear TypeSteel
Connector Wire Length300mm
Wire infoBrown/Black = Negative
Red = Positive
Orange/White = Signal
drawing of BLS5808 servo
