Project Description

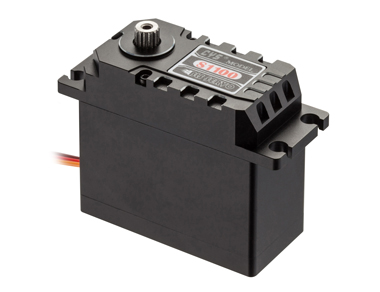

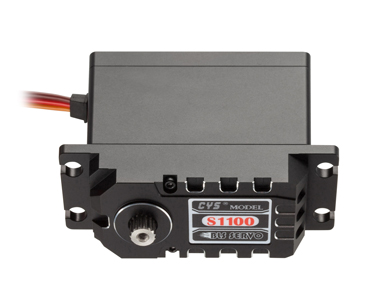

110Kg Brushless servo for smart vehicle and industrial applications

Size : 79.8*30*64.35MM

Torque : 90Kg.cm ~ 110Kg.cm

Speed : 0.4sec ~ 0.3sec/60 degree

Voltage : 9.0Volts ~12Volts

Weight : 274± 5 g

Datasheet download

Application&Features

With its great power and stable performance, CYS-S1100 110Kg high torque servo is specially designed for the following car , logistics vehicle in warehouse , smart robotic and industrail field .

TypeDigital
Weight274± 5 g
Size79.8*30*64.35MM
Control System(+)Pulse Width Control 1500usec Neutral
Operating Voltage9.0~12Volts
Operating Temperature Range(-)10 to +50 degree C
Operating Speed (9.0V)0.40 sec/60° at no load
Operating Speed (12 V)0.30 sec/60° at no load
Stall Torque (9.0V)90kg.cm
Stall Torque (12 V)110kg.cm
DirectionOptional/Pulse Traveling 1000~2000usec
Current Drain (9.0V)20mA/idle and 110mA no load operating
Current Drain (12 V)20mA/idle and 110mA no load operating
Stall Current5.8A/7.5A
Dead Band Width4usec
Bearing TypeDual Ball Bearing*2
Horn gear spline15T/ψ7.7
Gear TypeSteel
Plug/Connector Wire LengthJR/300mm ( can change according to customers' need)
Wire infoBrown/Black = Negative
Red = Positive
Orange/White = Signal
drawing of BLS1100 servo
