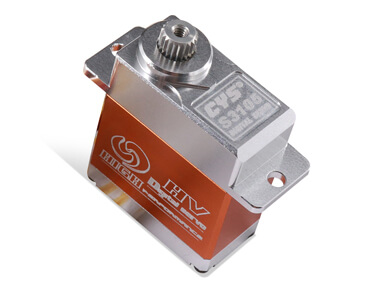

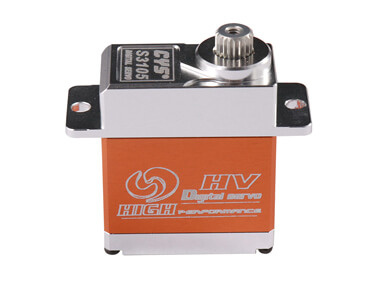

CYS-S3105 Digital servo for helicopter rc plane

/, RC Helicopter Servo/CYS-S3105 Digital servo for helicopter rc plane
CYS-S3105 Digital servo for helicopter rc plane2019-08-02T08:16:36+00:00

Project Description

Item NO.: CYS-S3105   9gram servo

Description :  Digital servo for 450 helicopter for rc plane

Size : 23*12*28.5MM

Torque : 2.0Kg.cm ~ 2.5Kg.cm

Speed : 0.07sec ~ 0.05sec/60 degree

Voltage : 6.0Volts ~7.4Volts

Weight : 20± 1 g

Datasheet download

Application&Features

TypeDigital
Weight20g ± 1g
Size23*12*28.5mm
Control System(+)Pulse Width Control 1500usec Neutral
Operating Voltage6.0~7.4Volts
Operating Temperature Range(-)10 to +50 degree C
Operating Speed (6.0V)0.055sec/60° at no load
Operating Speed (7.4V)0.048sec/60° at no load
Stall Torque (6.0V)2.2kg.cm
Stall Torque (7.4V)2.5kg.cm
Operating Angle45deg.one side pulse traveling 500 usec
DirectionAnticlockwise/Pulse Traveling 1000~2000usec
Current Drain (6.0V)20mA/idle and 80mA no load operating
Current Drain (7.4V)20mA/idle and 100mA no load operating
Stall Current1.4A/1.5A
Dead Band Width2usec
Motor TypeCoreless motor
Bearing Typesingle bearing
Horn gear spline21T
Gear TypeMetal
Connector Wire Length180mm±5mm
Wire infoBrown/Black = Negative
Red = Positive
Orange/White = Signal
